Shift Lock System (Floor Shift): Inspection

Using a voltmeter, measure the voltage at each terminal.

HINT:

Do not disconnect the shift lock control unit assembly connector.

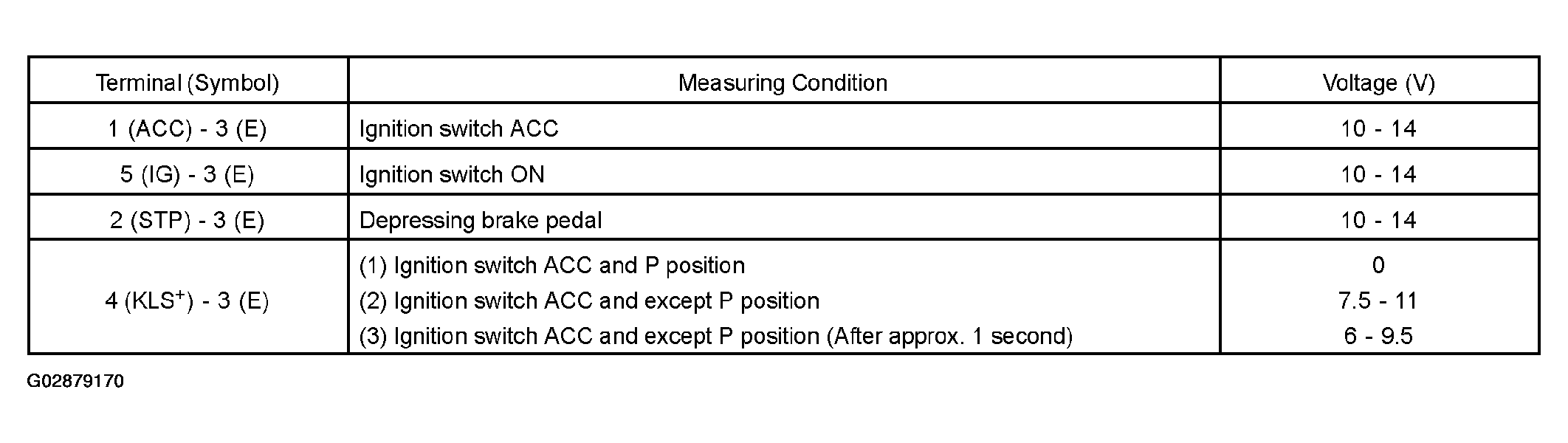

Fig 1: Checking Shift Lock Control Unit Assembly (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Checking Shift Lock Control Unit Assembly (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the solenoid connector.
2. Using an ohmmeter, measure resistance between terminals.

   Standard resistance: 14.5 +/- 1.5 Ω

   If resistance value is not as specified, replace the solenoid.

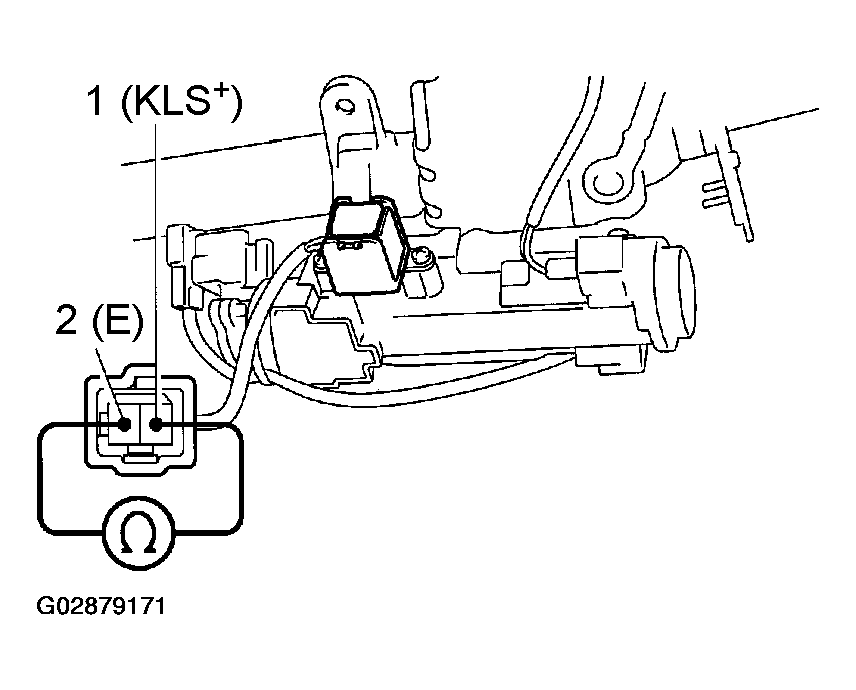

   Fig 3: Checking Key Interlock Solenoid

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

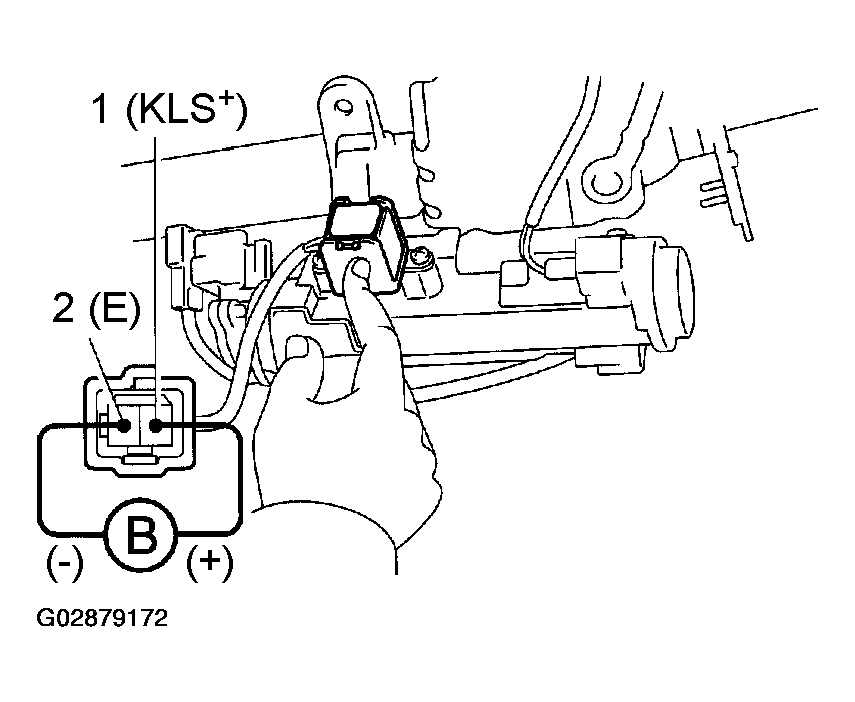

3. Apply battery positive voltage between terminals. Check that an operation noise can be heard from the solenoid.

   If the solenoid does not operated, replace the solenoid.

   Fig 4: Replacing Solenoid

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
