Rear Brake Speed Sensor: Components

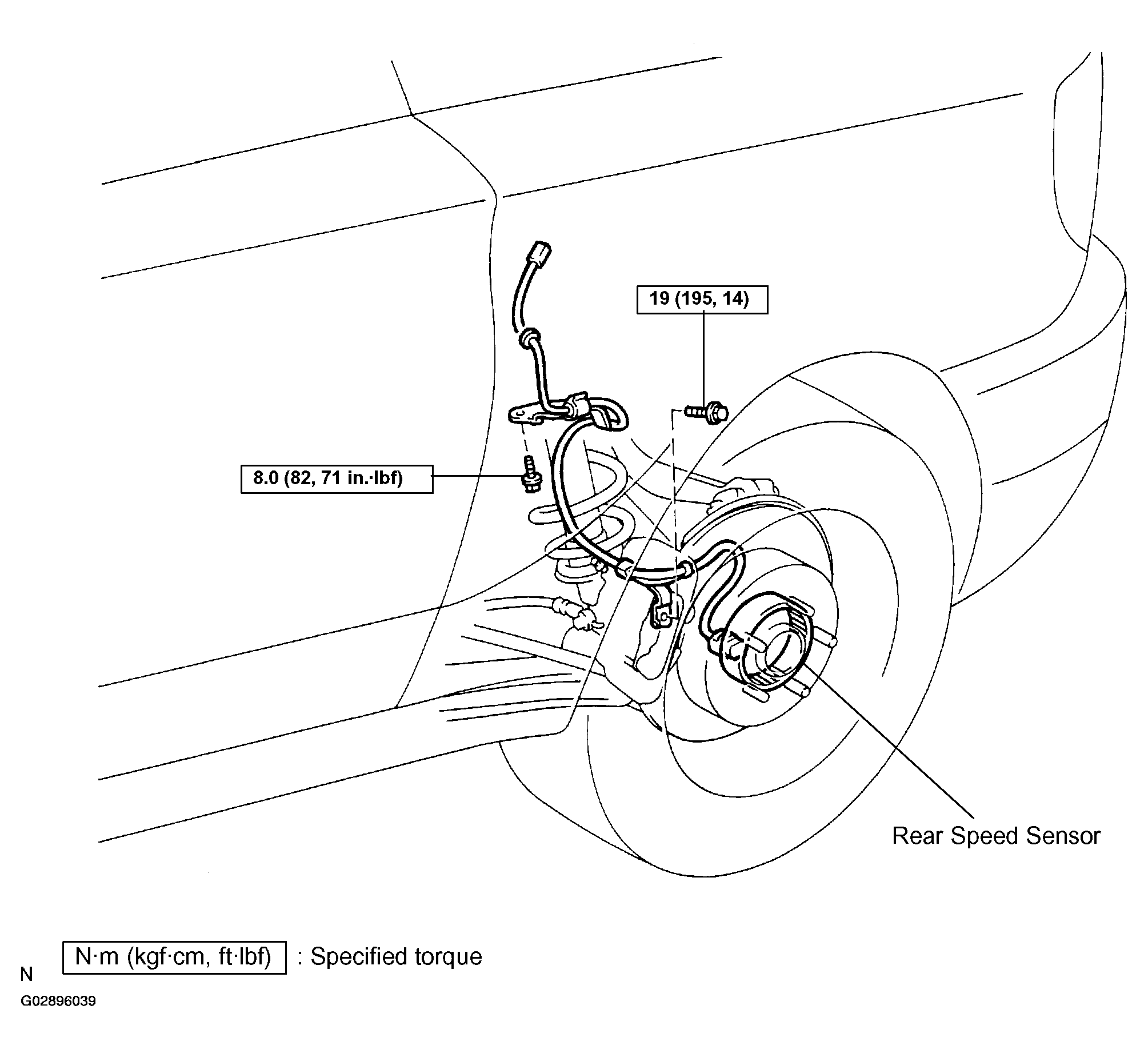

Fig 1: Locating Rear Speed Sensor Components
G02896039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
