Throttle Body (1ZZ-FE): Components

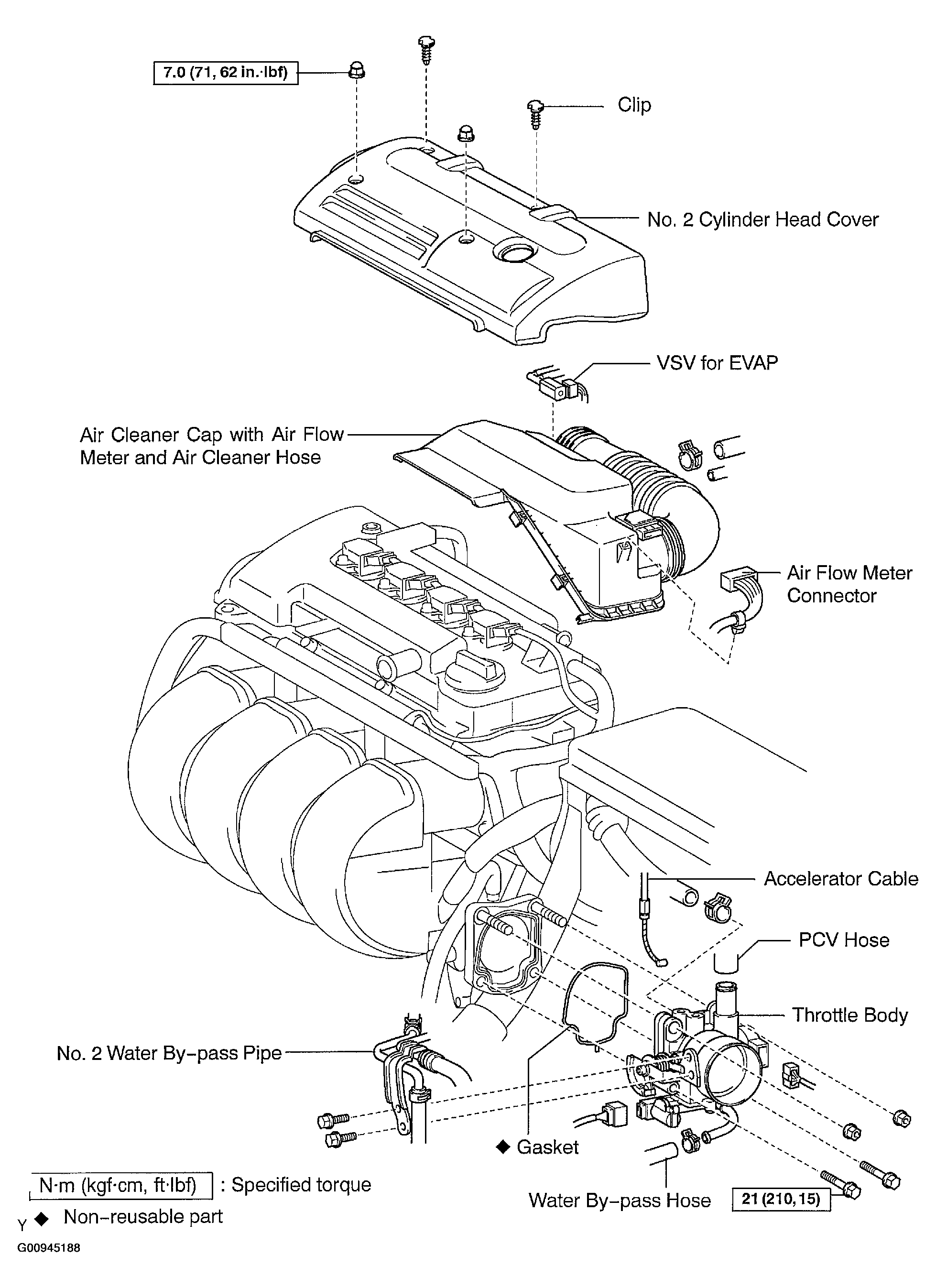

Fig 1: Throttle Body (1ZZ-FE) Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
