Throttle Body (1ZZ-FE): Inspection

Check that there is no clearance between the throttle stop screw and throttle lever when the closed throttle position.

Fig 1: Checking Clearance Between Throttle Stop Screw & Throttle Lever When Closed Throttle Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

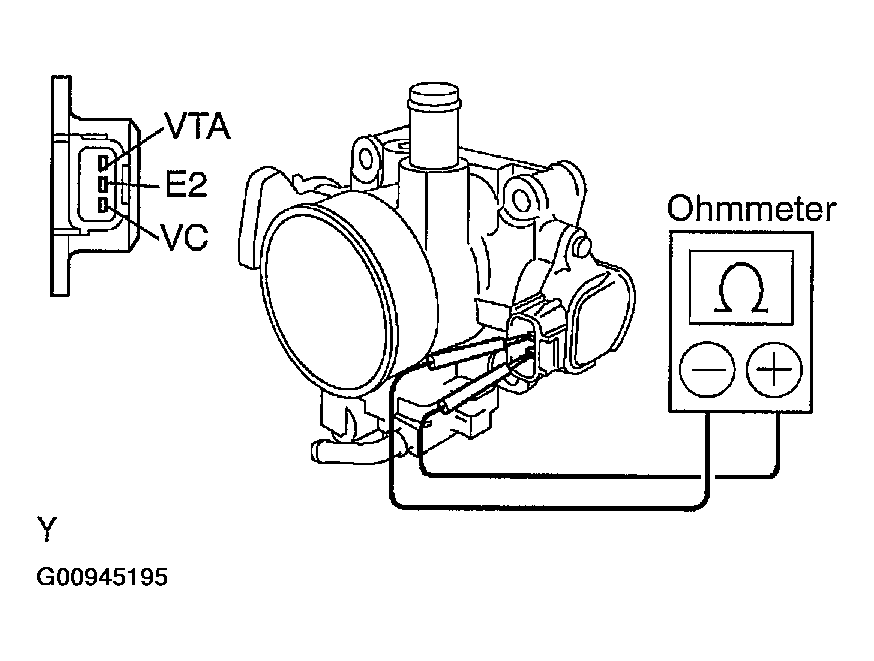

Using an ohmmeter, measure the resistance between each terminal.

Fig 2: Measuring Resistance Between Each Terminal Using An Ohmmeter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Throttle Position Sensor Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
