Throttle Body (2ZZ-GE)
›
Components
Throttle Body (2ZZ-GE): Components

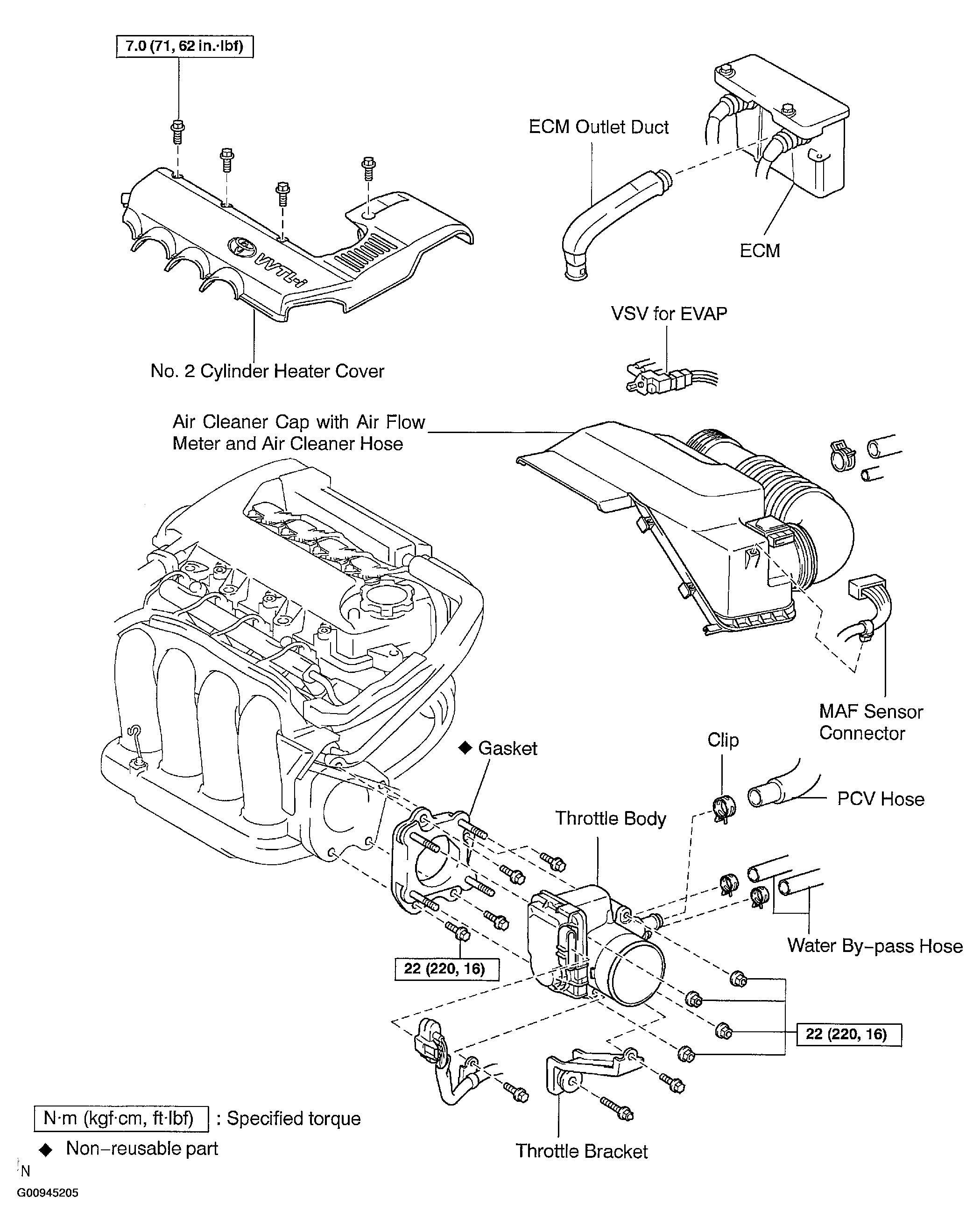

Fig 1: Throttle Body (2ZZ-GE) Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
