VSV For Pressure Switching Valve: Components

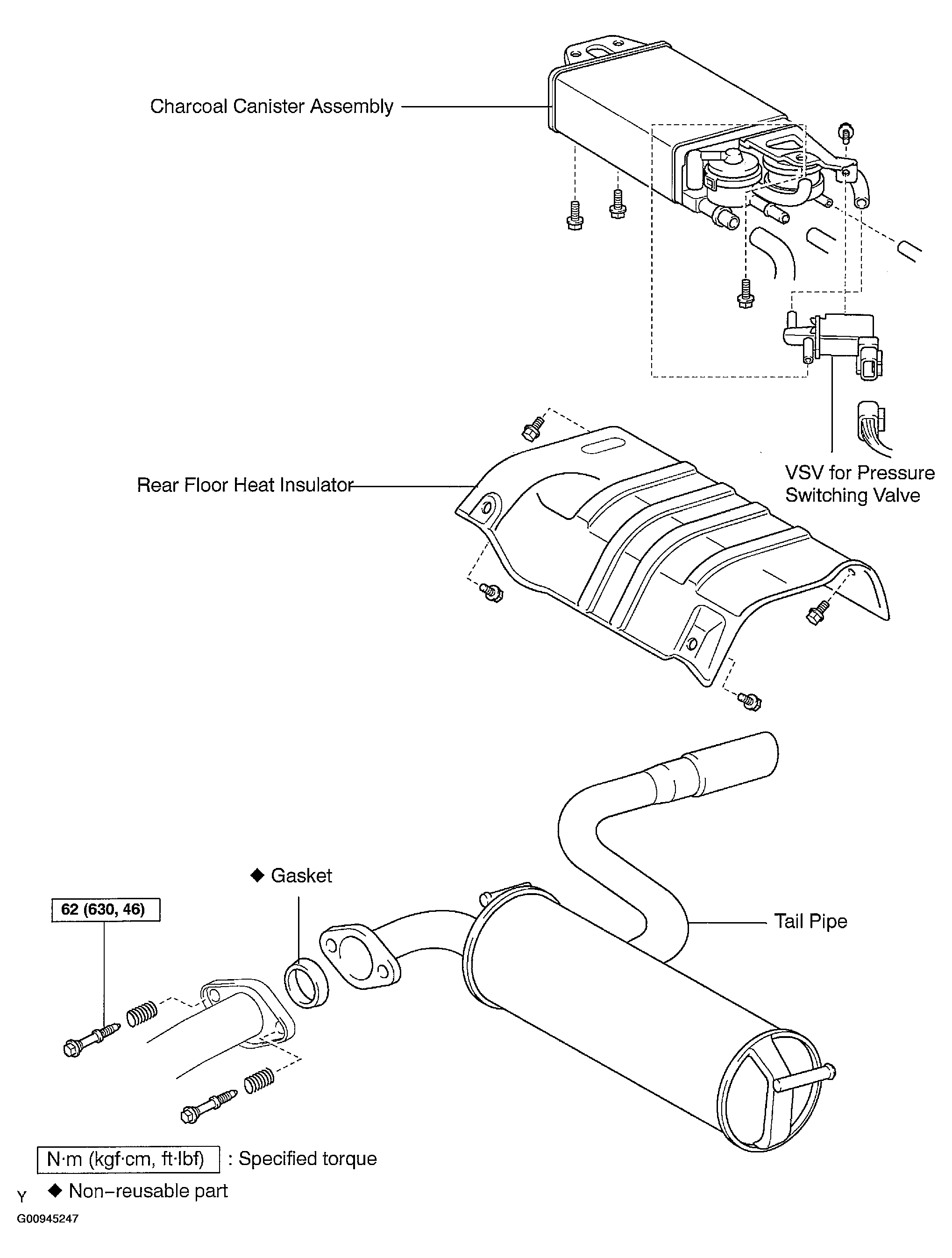

Fig 1: VSV For Pressure Switching Valve Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
