How To Proceed With Troubleshooting

Troubleshoot in accordance with the procedure on the following page.

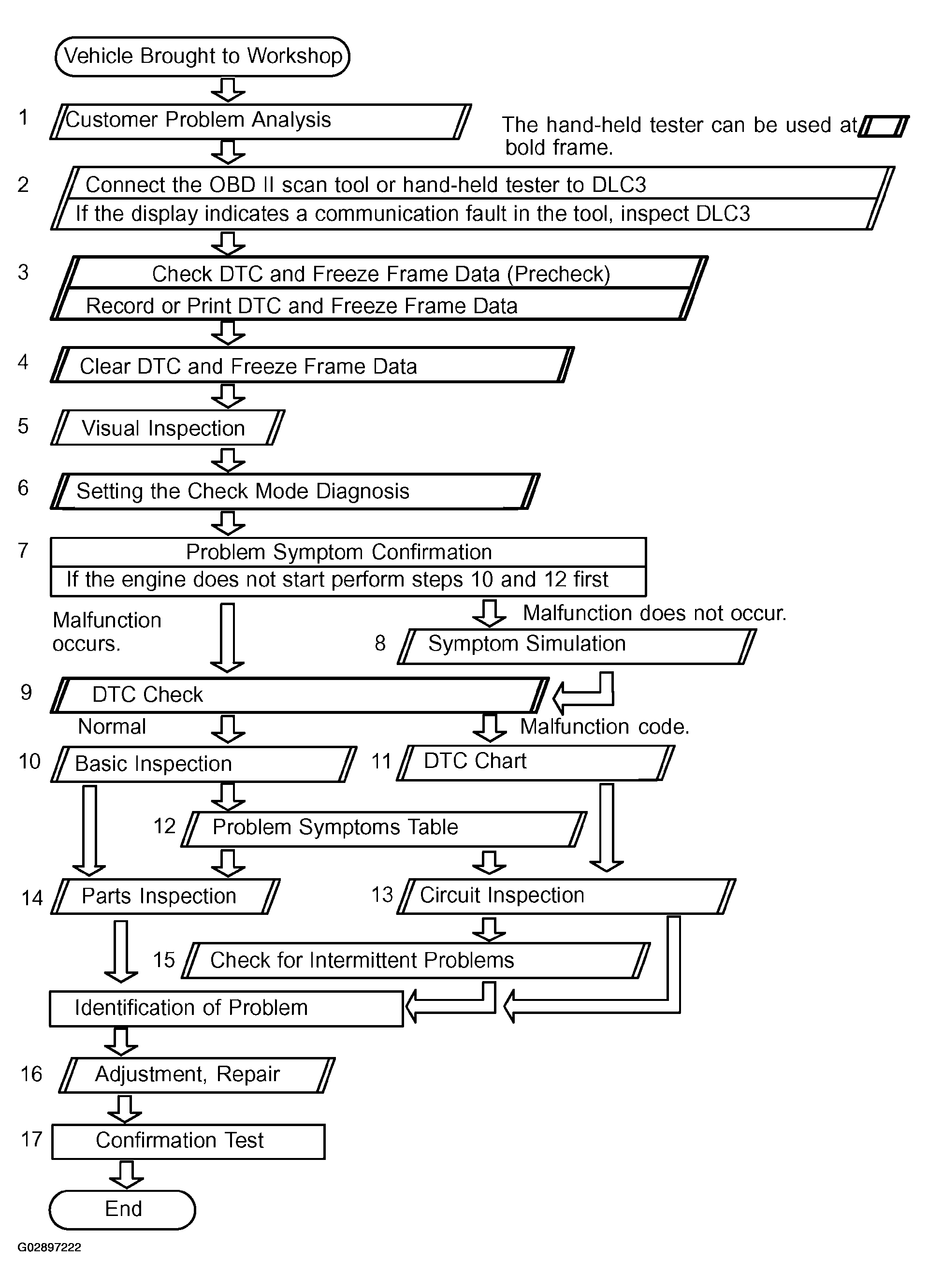

Fig 1: Troubleshooting Flow Chart
G02897222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
