Vehicle Lift And Support Locations

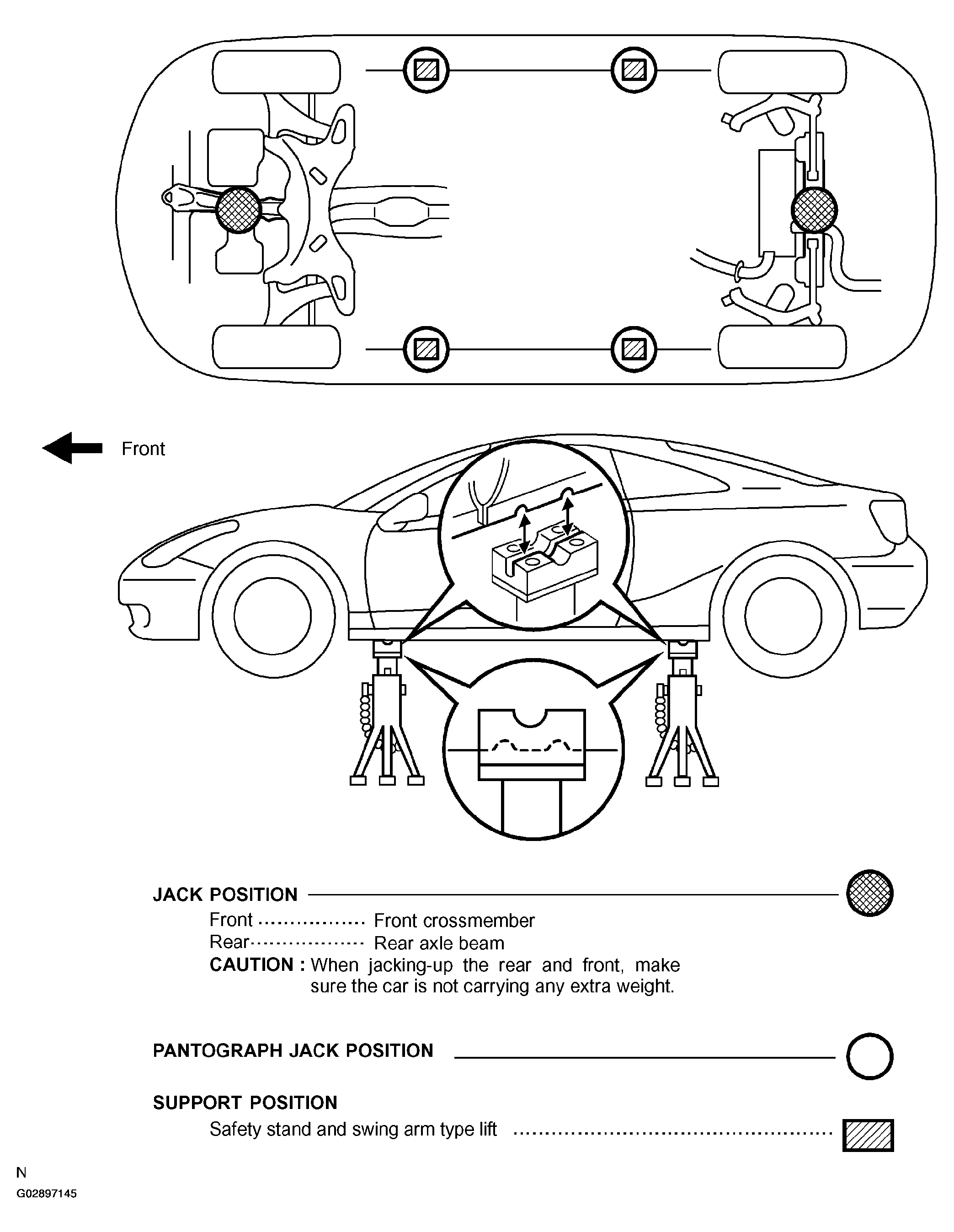

Fig 1: Identifying Vehicle Lifting And Supporting Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

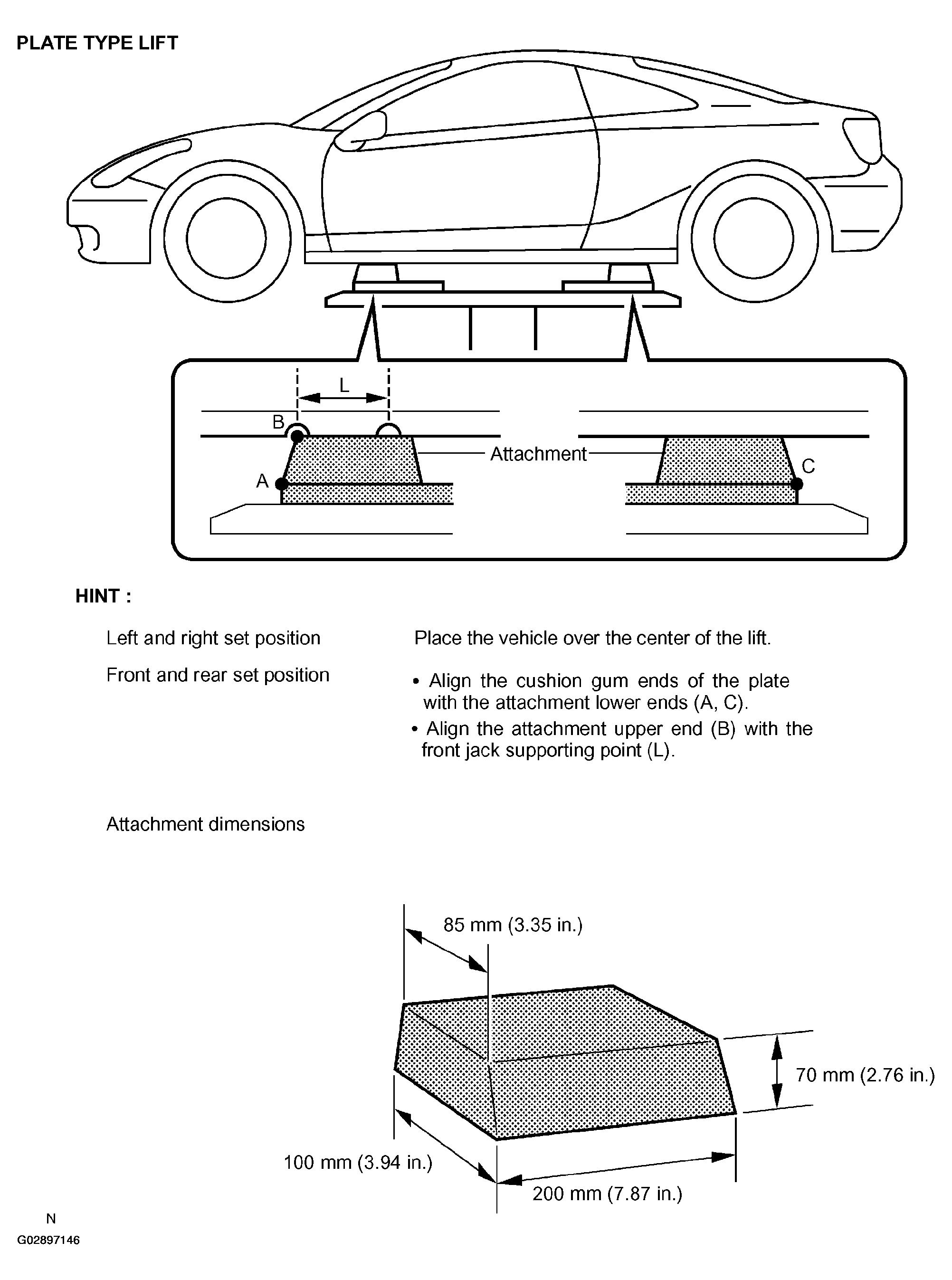

Fig 2: Identifying Vehicle Lifting And Supporting Locations (Play Type Lift)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
