Fail-Safe Chart
If any of the following codes is recorded, the ECM enters the fail-safe mode.

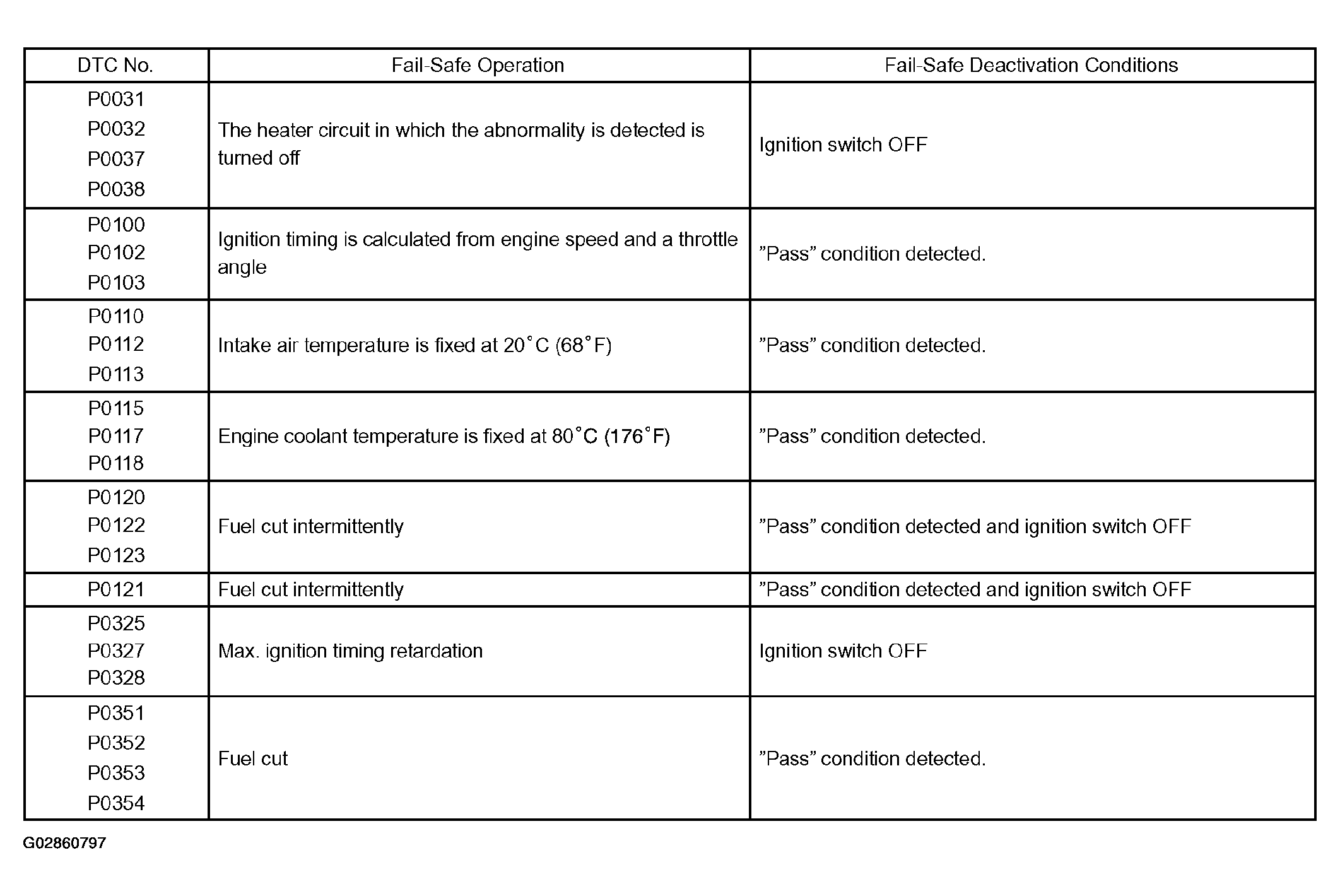

Fig 1: Fail-Safe Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
