Clock ASSY: Replacement

REMOVE CONSOLE PANEL UPPER (See REPLACEMENT )
REMOVE HEATER CONTROL KNOB
REMOVE INSTRUMENT CLUSTER FINISH PANEL (See REPLACEMENT )
REMOVE CLOCK ASSY
1. Using a screwdriver, disengage the 4 claws, remove the clock as shown in the illustration.
HINT:

Tape the screwdriver tip before use.

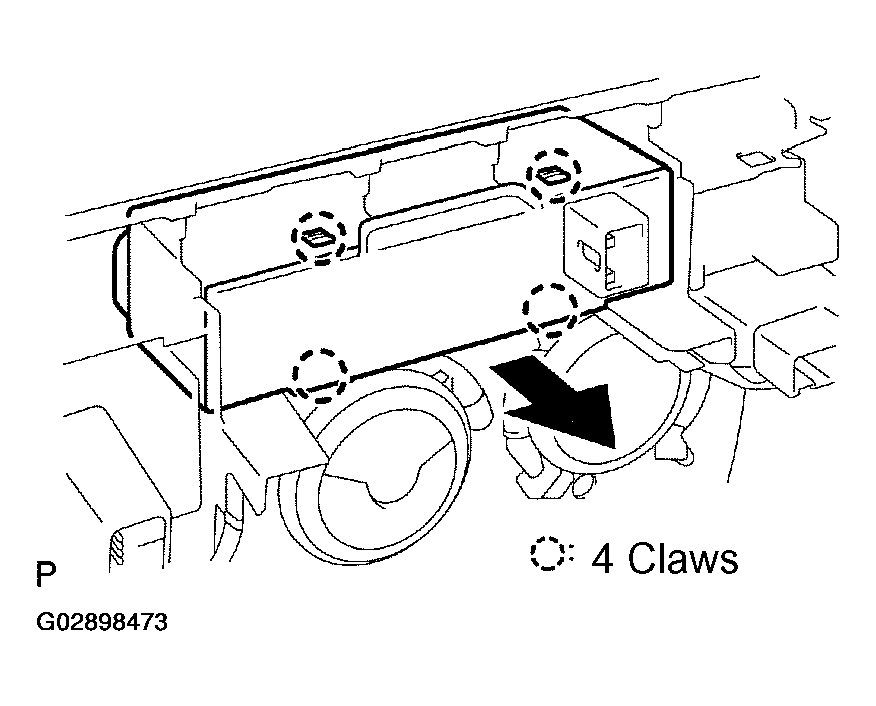

Fig 1: Removing Clock Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
