Engine Control System (SFI) - Diagnostics: Location

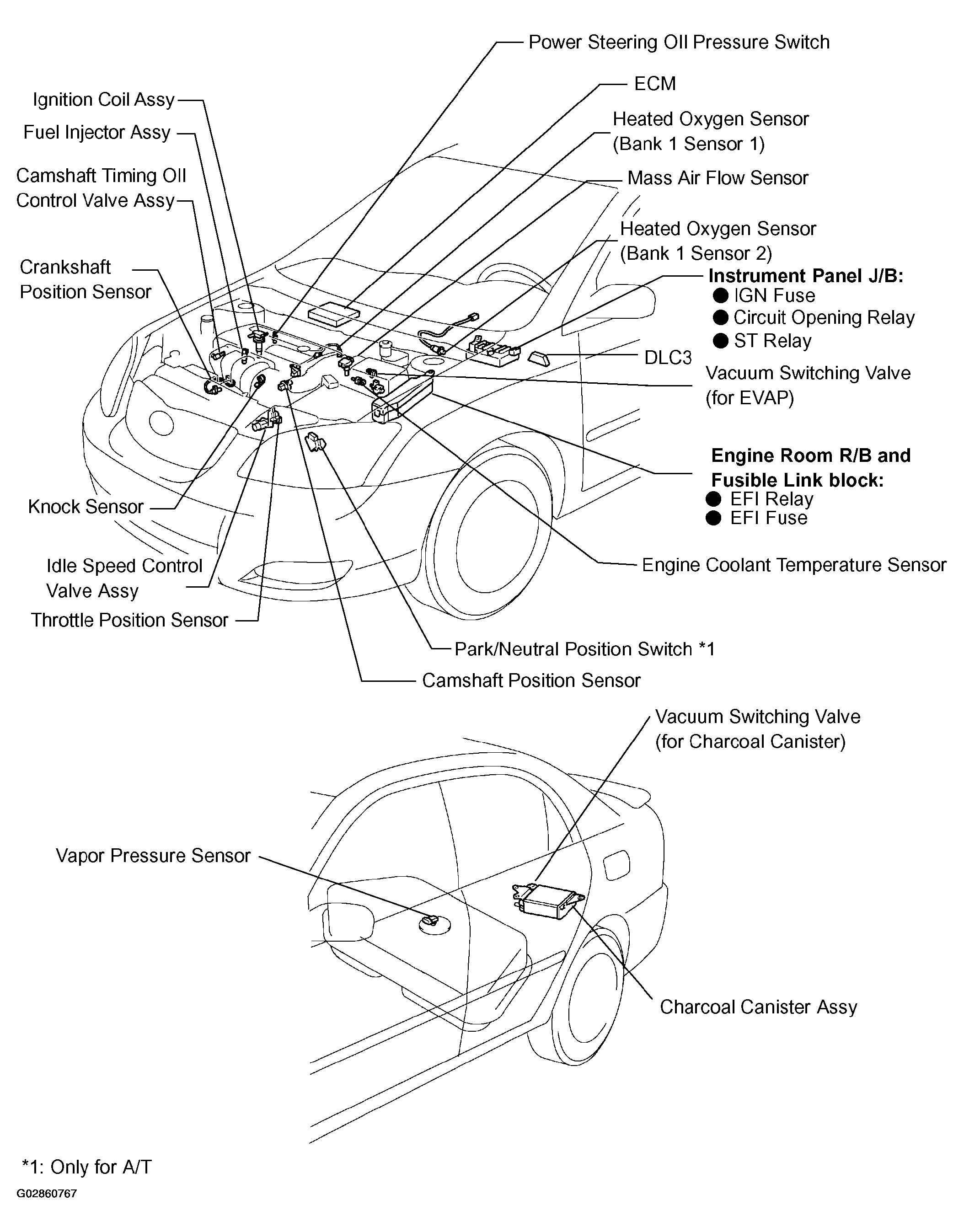

Fig 1: Identifying SFI System Components Location
G02860767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
