Vehicle Intrusion Protection System - Diagnostics
›
TOYOTA Vehicle Intrusion Protection System
›
Light Control Switch Circuit
›
Wiring Diagram
Light Control Switch Circuit: Wiring Diagram

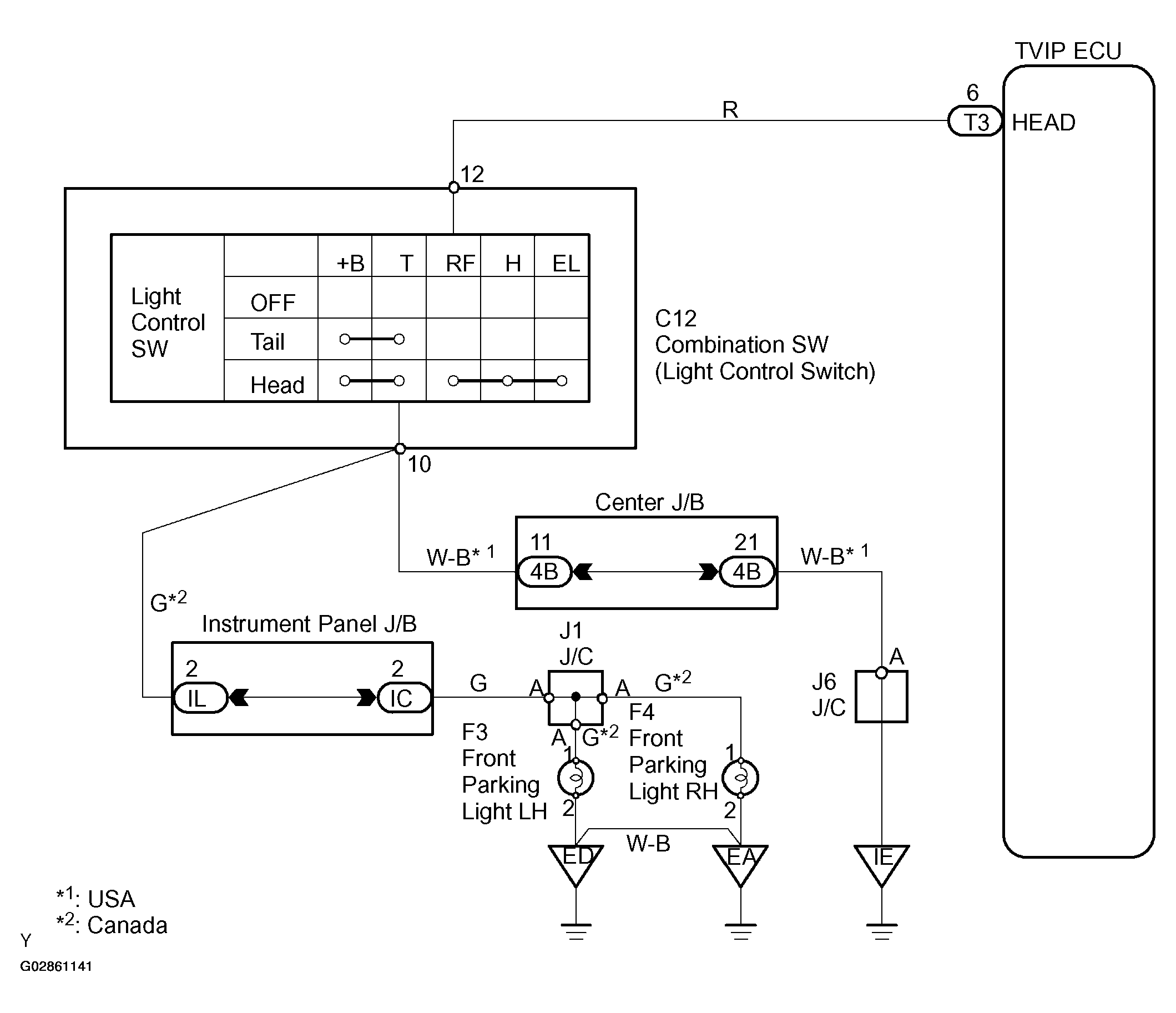

Fig 1: Light Control Switch Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
