Section 372 (Radiator): Components

WARNING: This page is about a different car, the 2004 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.

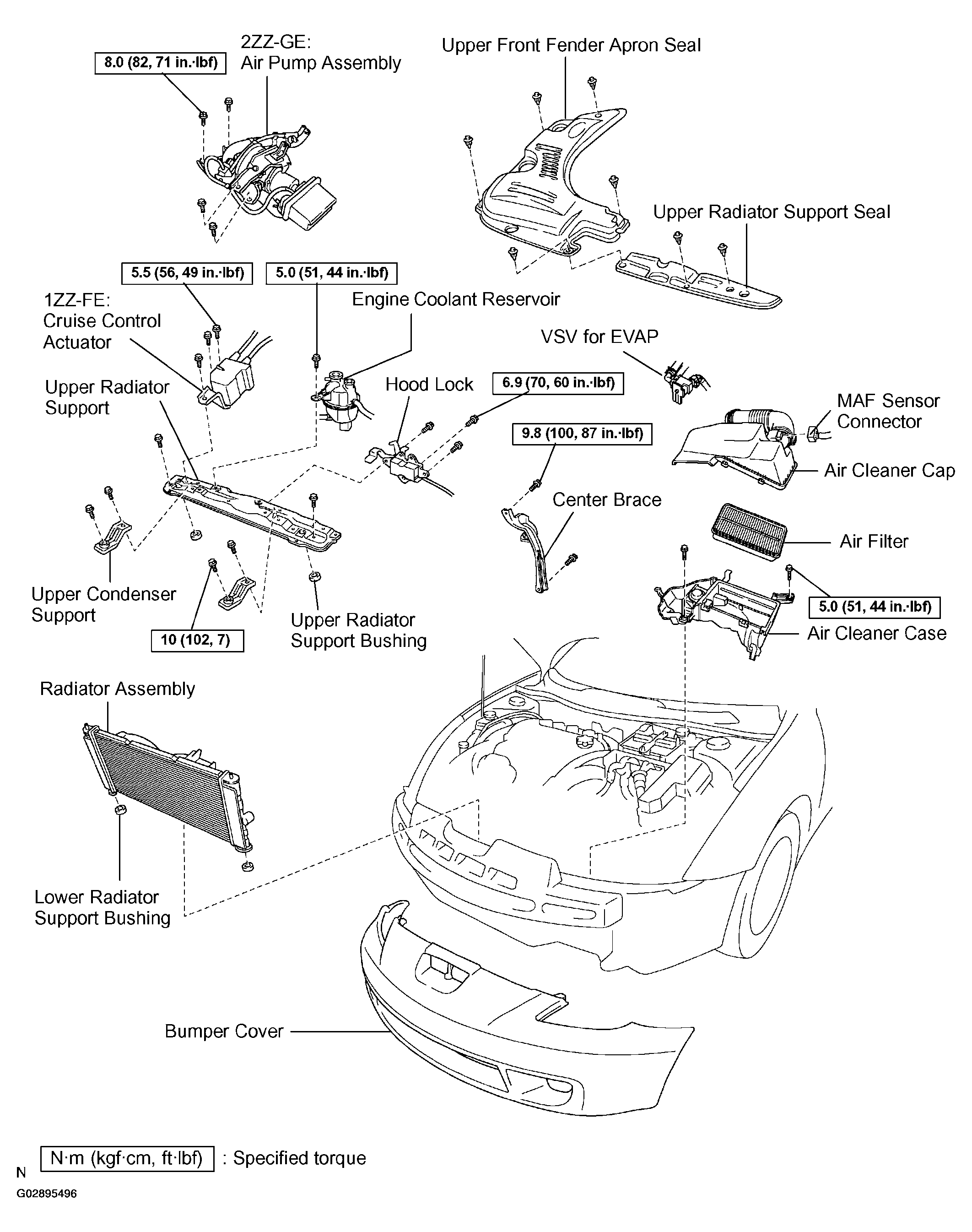

Fig 1: Identifying Radiator Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

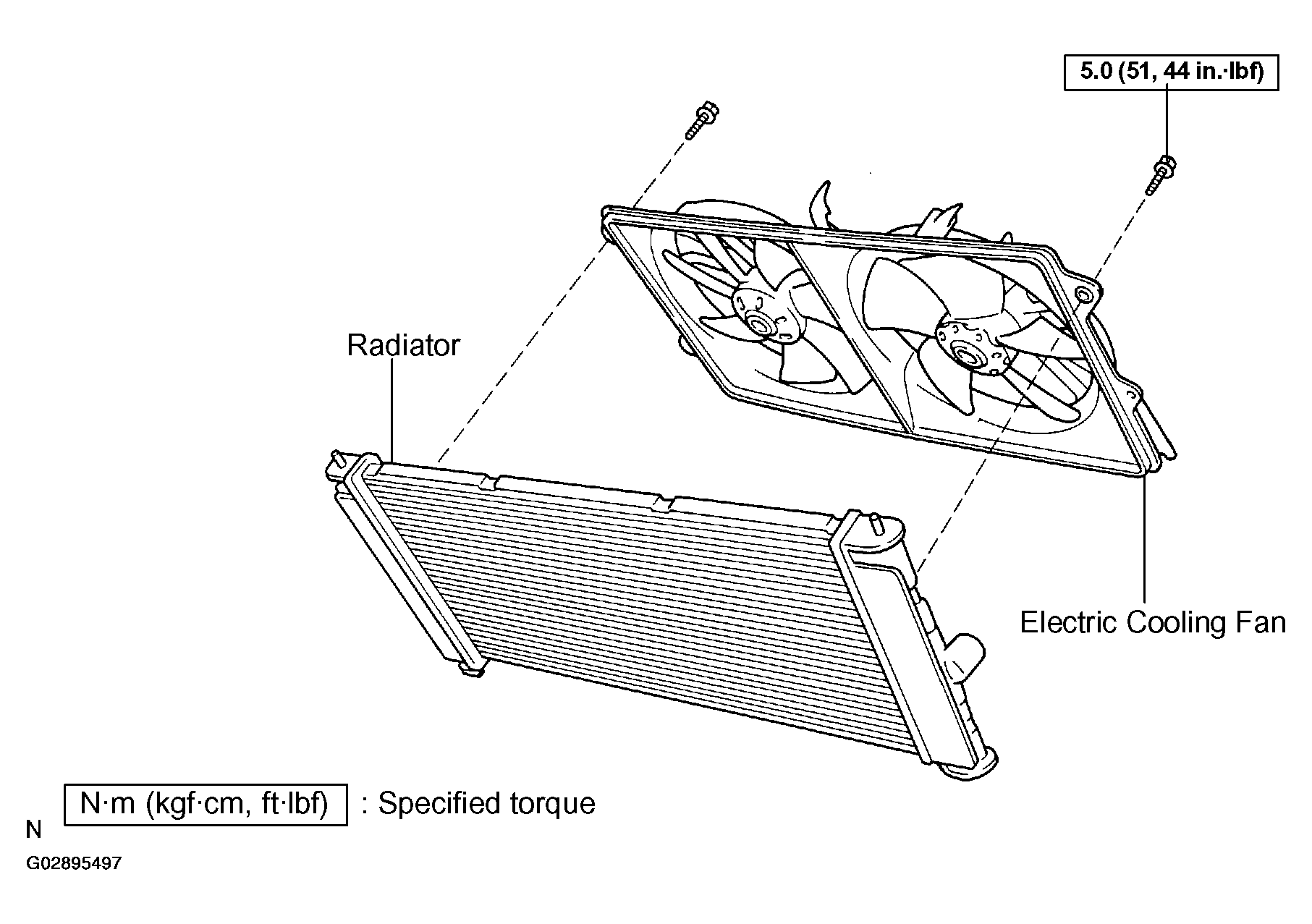

Fig 2: Removing Electric Cooling Fan

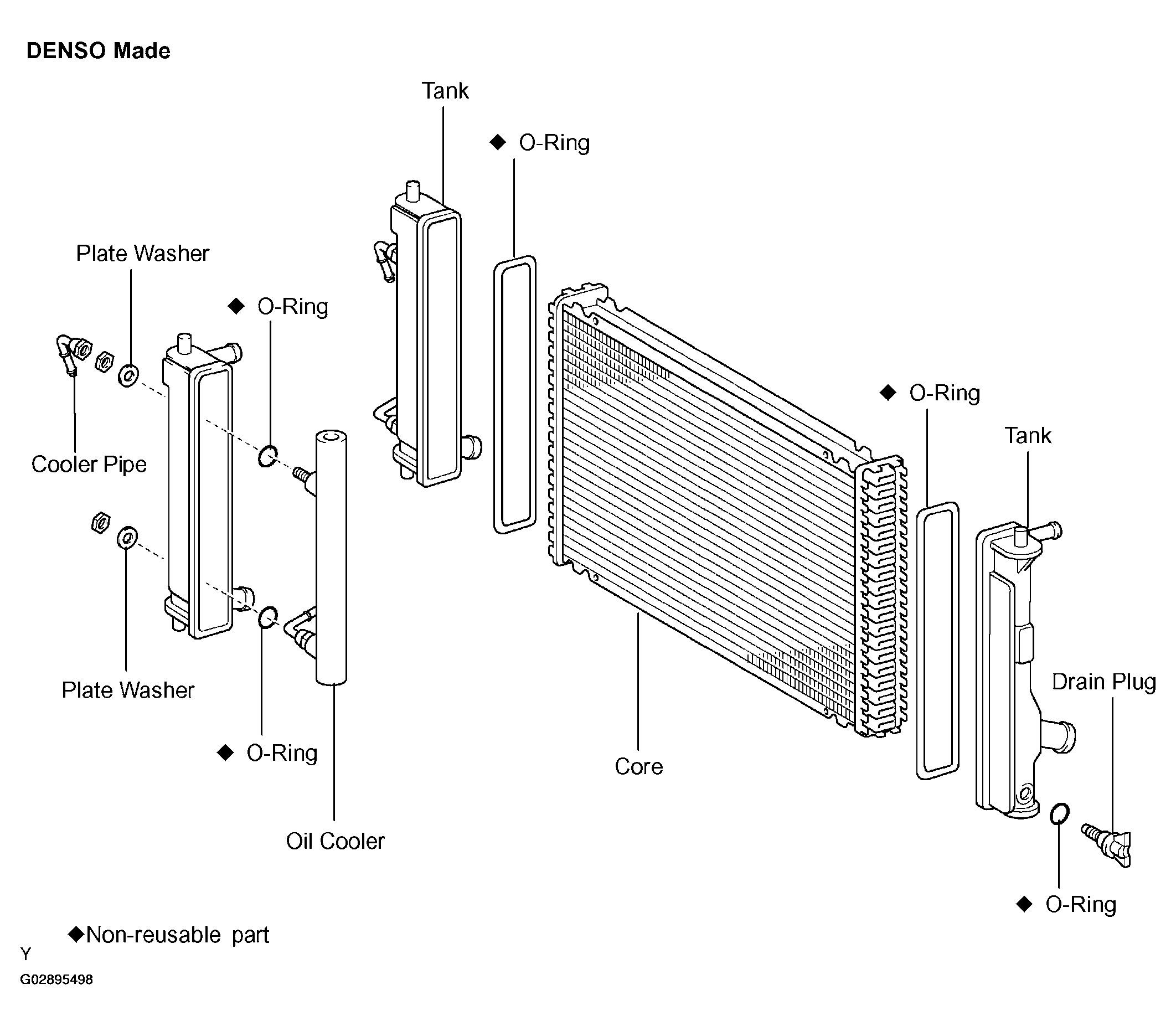

Fig 3: Identifying Radiator Components (DENSO Made)
