Section 372 (Radiator): Disassembly

WARNING: This page is about a different car, the 2004 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE DRAIN PLUG
1. Remove the drain plug.
2. Remove the O-ring.

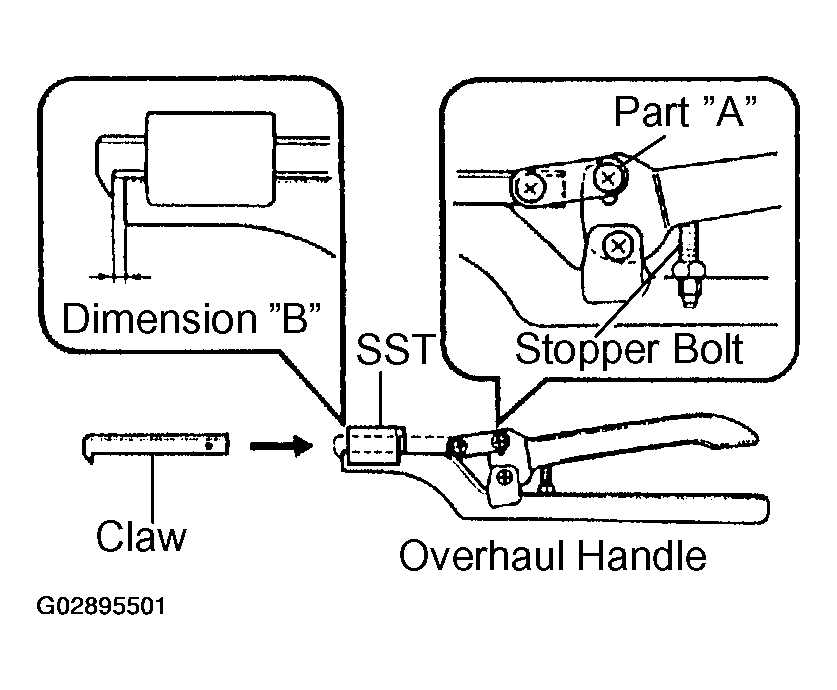

  Fig 1: Installing Claw To Overhaul Handle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DENSO Made:
1. ASSEMBLE SST
2. SST 09230-01010
1. Install the claw to the overhaul handle, inserting it in the hole in part "A" as shown in the diagram.
2. While gripping the handle, adjust the stopper bolts so that dimension "B" shown in the diagram is 0.2 - 0.3 mm (0.008 - 0.012 in.).
NOTE: If this adjustment is not done the claw may be damaged.
DENSO Made:
1. UN-CHAULK LOCK PLATES
Using SST to release the caulking, squeeze the handle until stopped by the stopper bolts.
1. SST 09230-01010

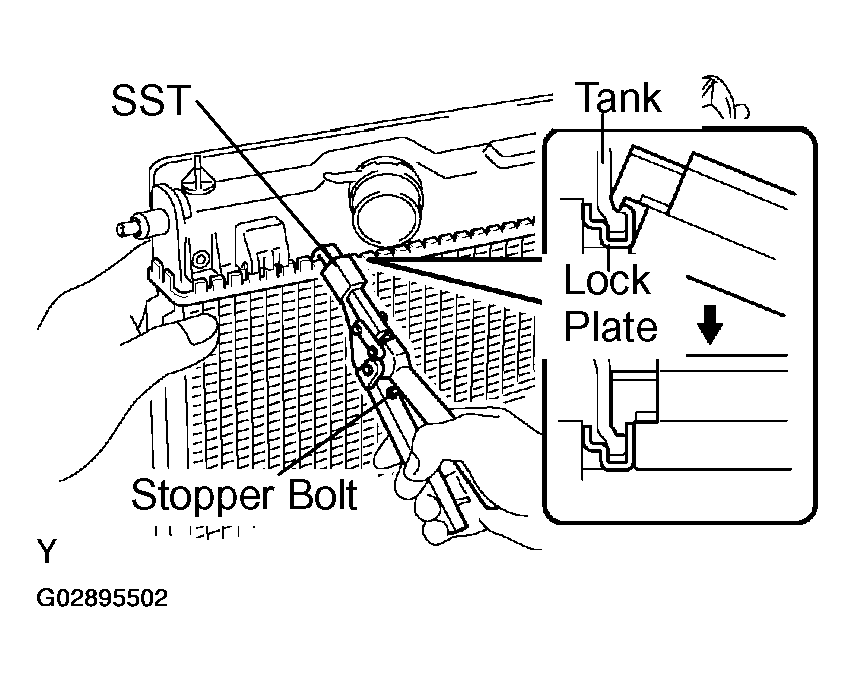

  Fig 2: Releasing Lock Plates Caulking
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DENSO Made:
1. REMOVE TANKS AND O-RINGS
Lightly tap the bracket of the radiator (or radiator inlet or outlet) with a soft-faced hammer, and remove the tank and the O-ring.

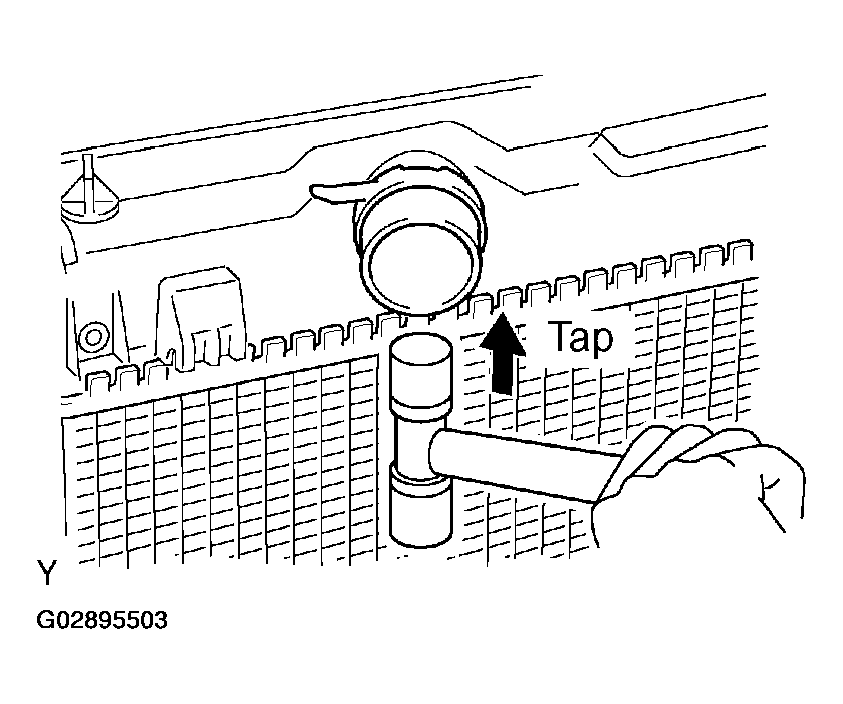

Fig 3: Tapping Bracket Of Radiator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
AT (DENSO Made):
1. REMOVE OIL COOLER FROM LOWER TANK
1. Loosen the nut, and remove the cooler pipe.
2. Remove the 2 nuts and 2 plate washers.
3. Remove the oil cooler and 2 O-rings.

  Fig 4: Removing Cooler Pipe
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
