Section 392 (Combination Meter): Circuit

WARNING: This page is about a different car, the 2004 Toyota Celica. However, it is still accessible from the selected car via links, so may be relevant.

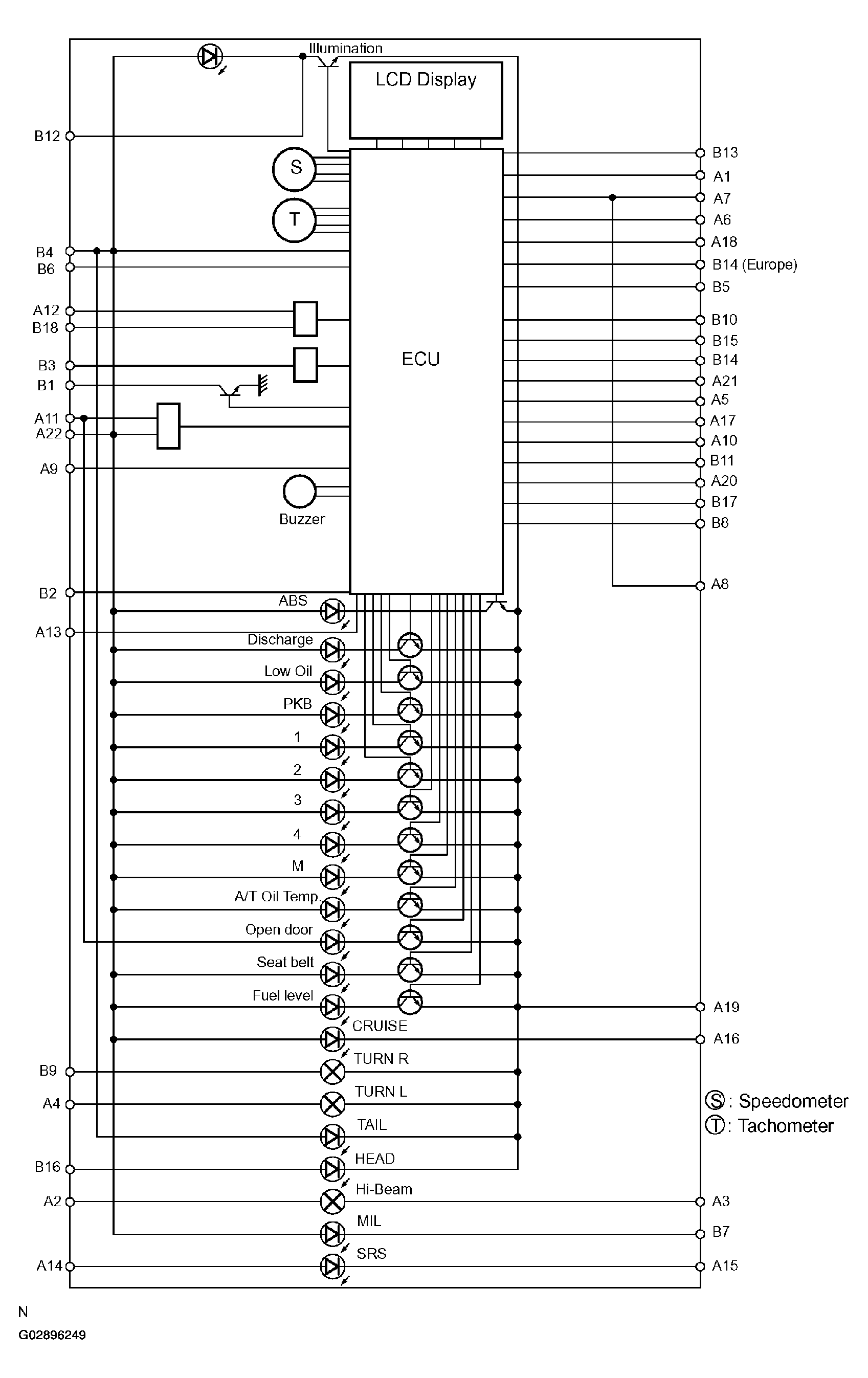

Fig 1: Identifying Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

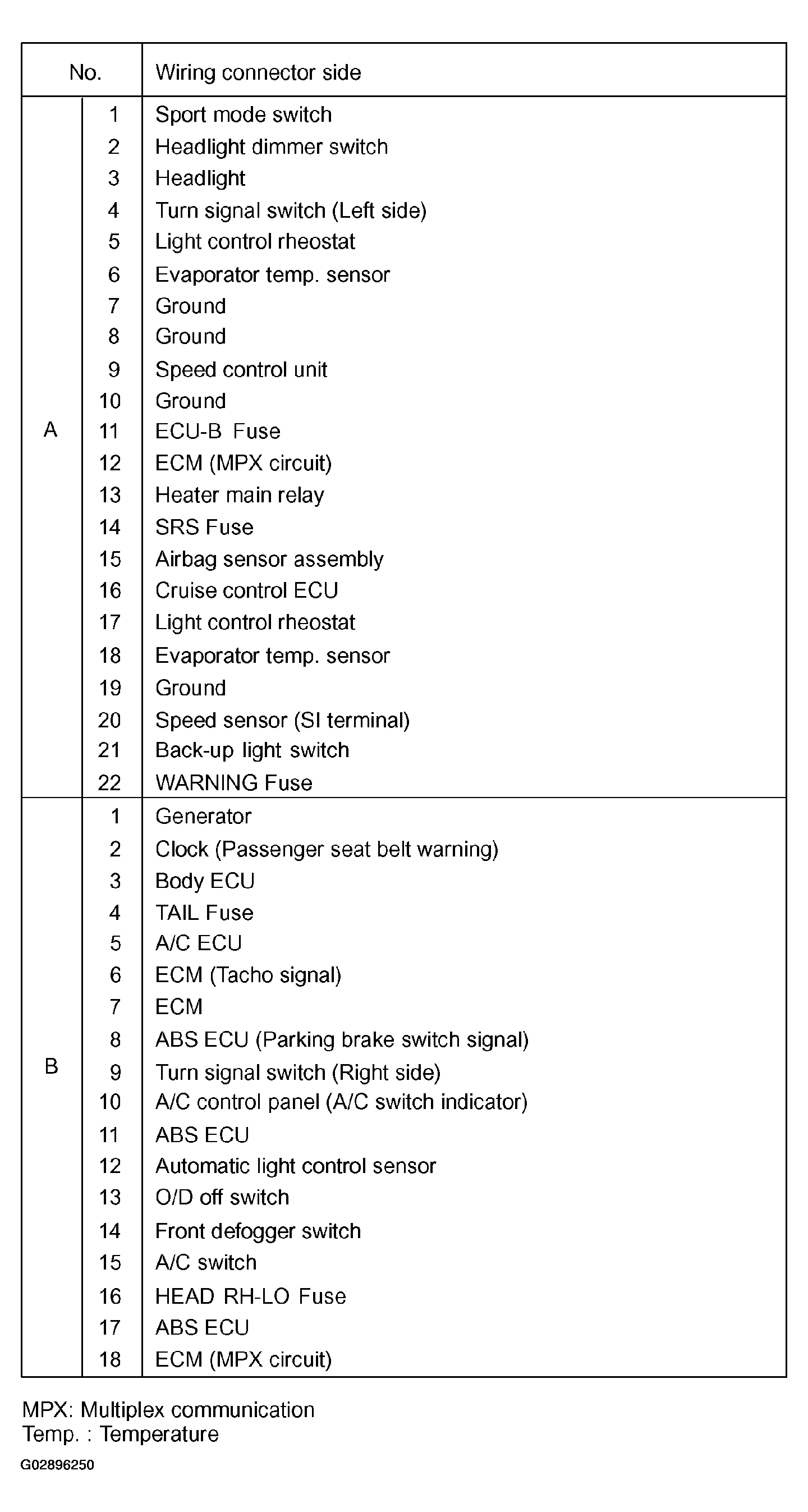

Fig 2: Identifying Circuit Diagram (2 Of 2)

MPX: Multiplex communication

Temp.: Temperature
