Front Axle Hub Sub-ASSY LH
›
Components
Front Axle Hub Sub-ASSY LH: Components

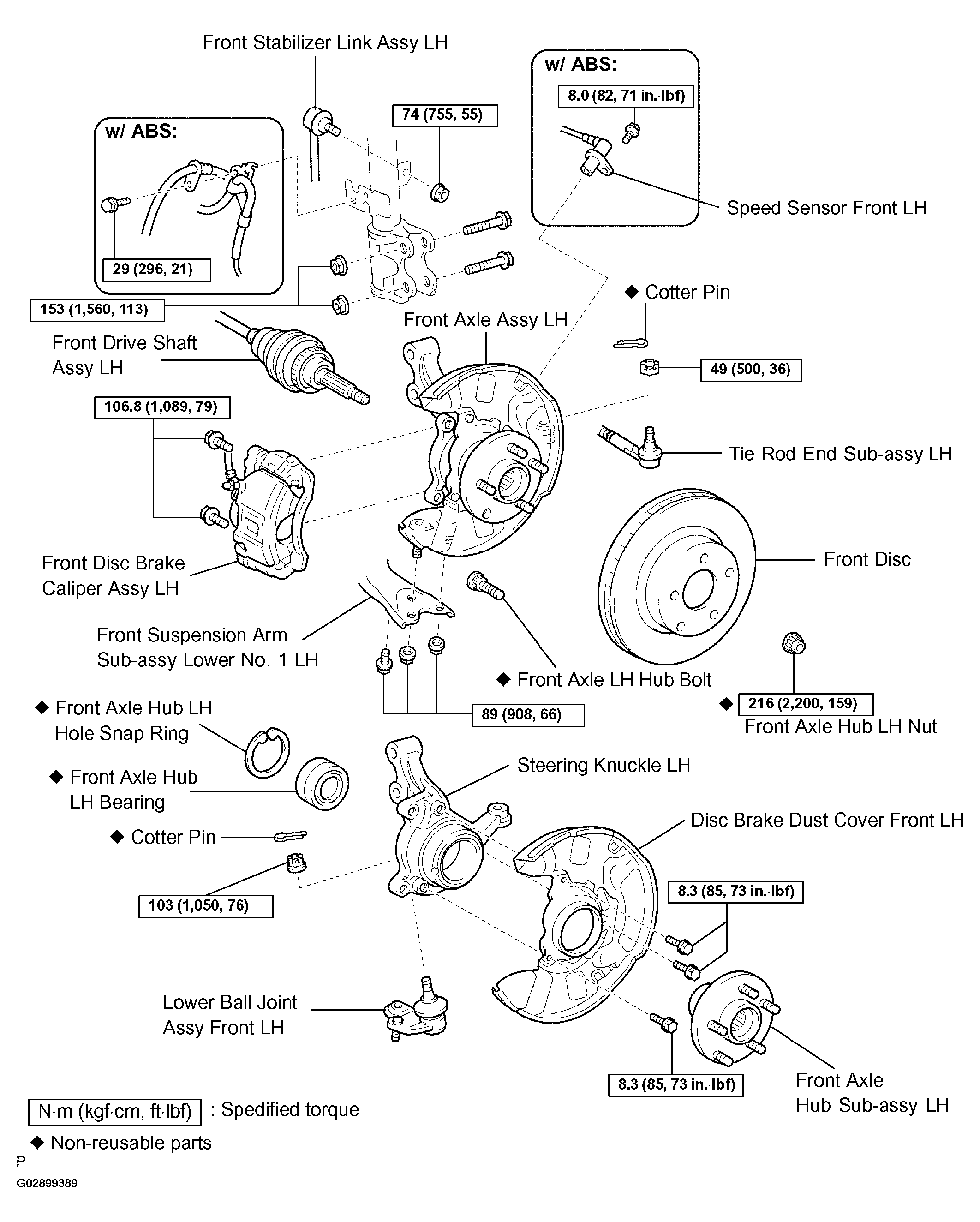

Fig 1: Identifying Front Axle Hub Sub-Assy LH Component
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
