Camshaft Timing Oil Control Valve: Components

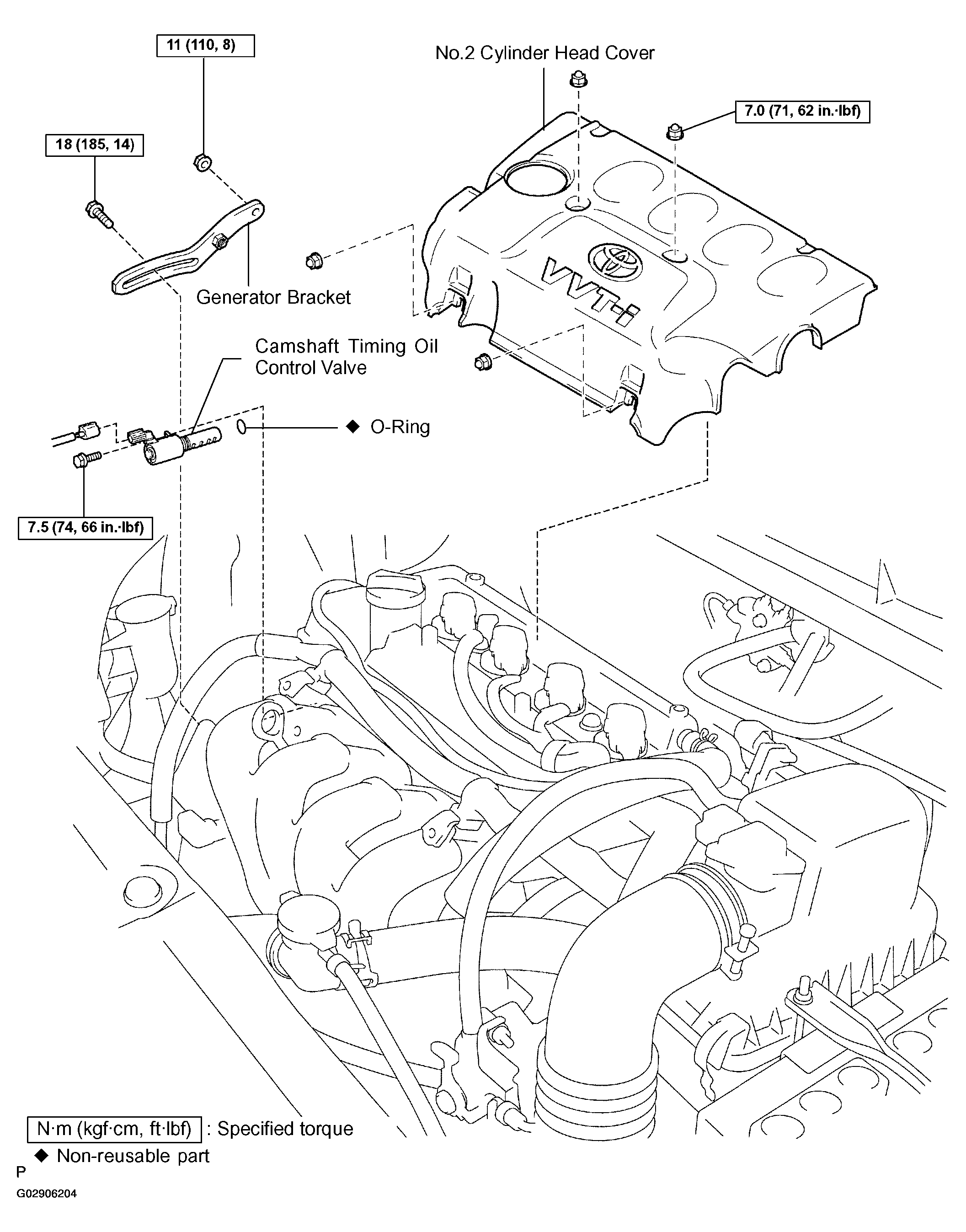

Fig 1: Identifying Camshaft Timing Oil Control Valve
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
