Fuel Tank And Line: Components

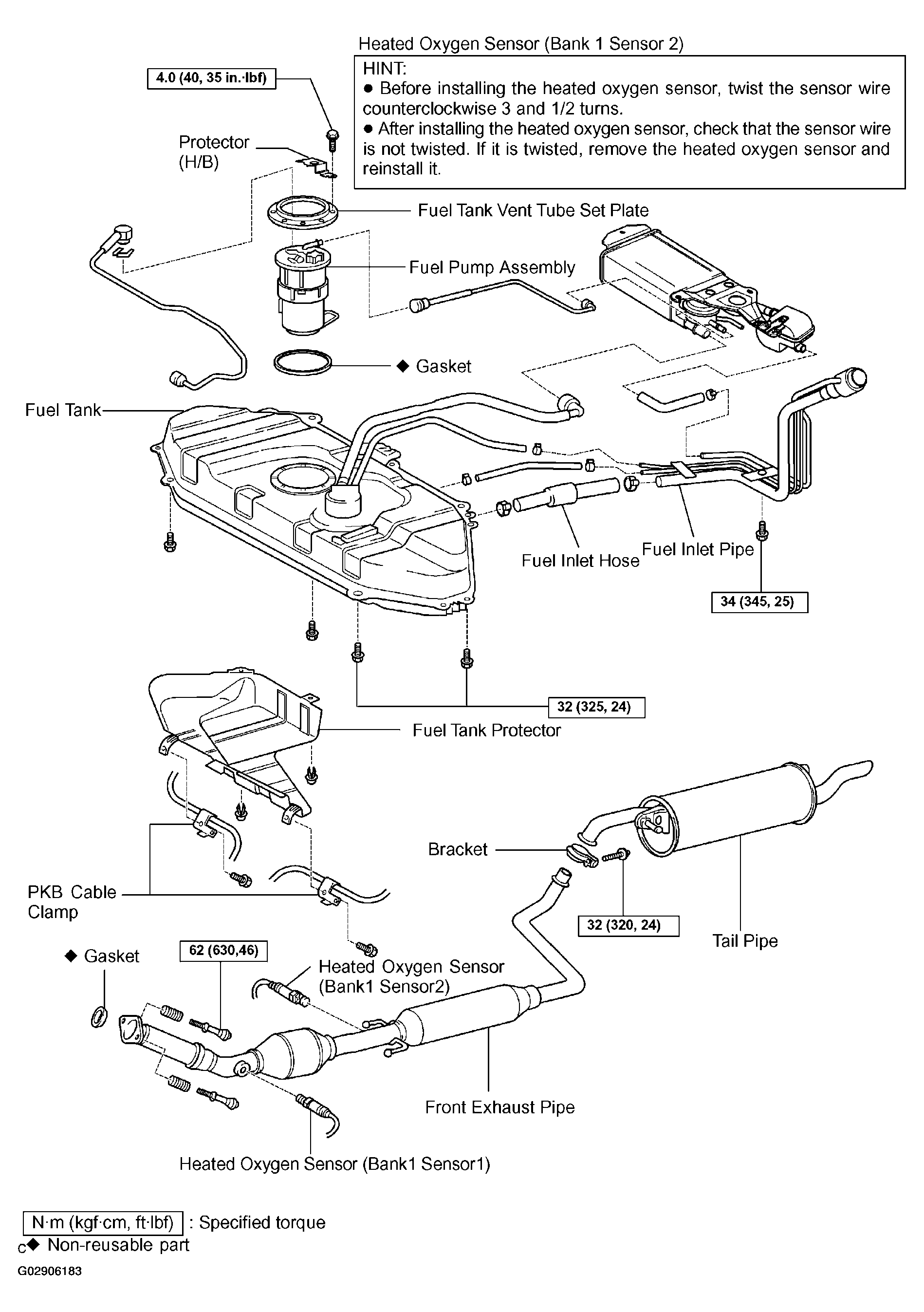

Fig 1: Identifying Components
G02906183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
