SFI System: Injector: Components

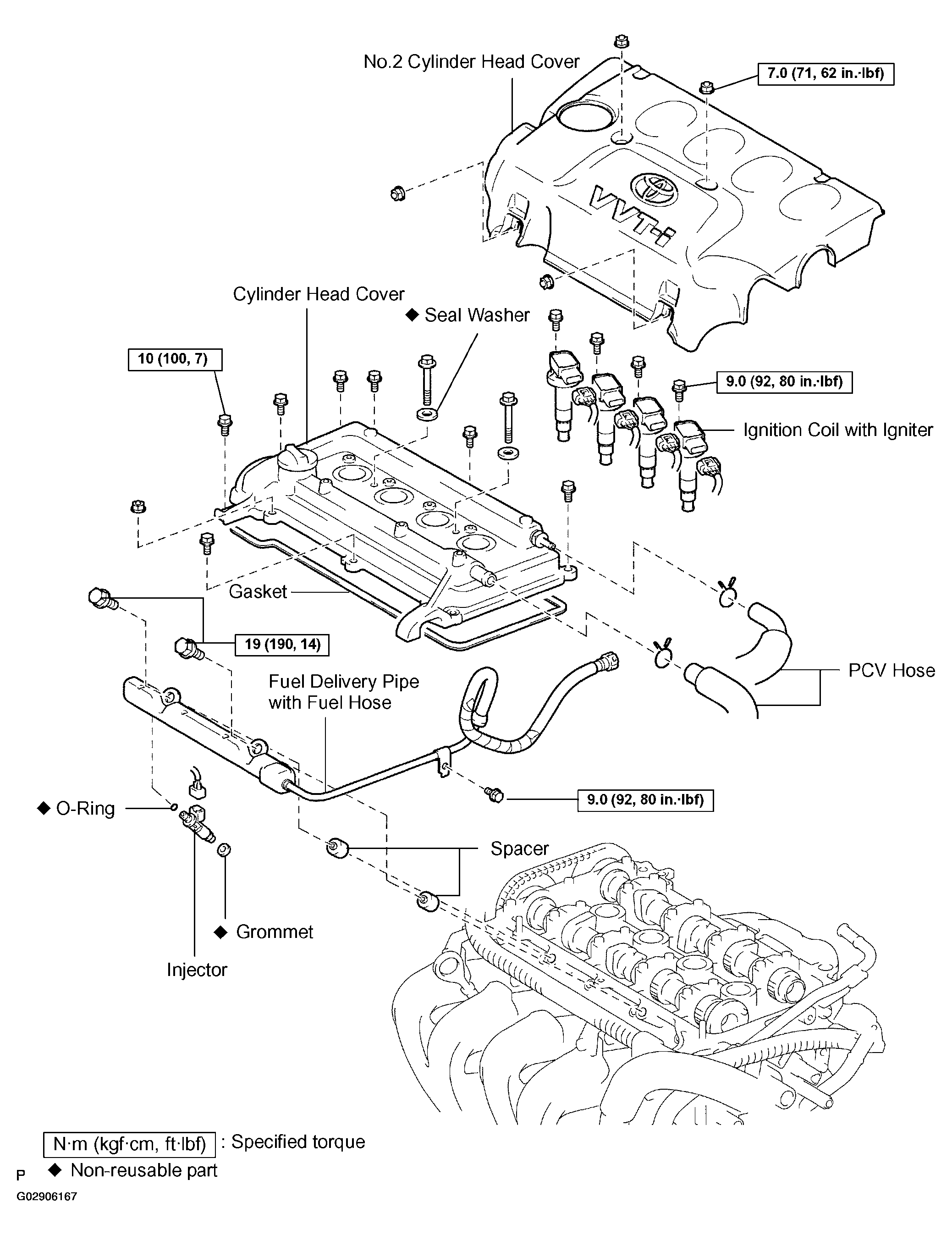

Fig 1: Identifying Components
G02906167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
