Crankshaft Position Sensor: Removal

  1. REMOVE ENGINE UNDER COVER RH
  2. REMOVE CRANKSHAFT POSITION SENSOR
    1. While sliding the connector lock, remove the connector.

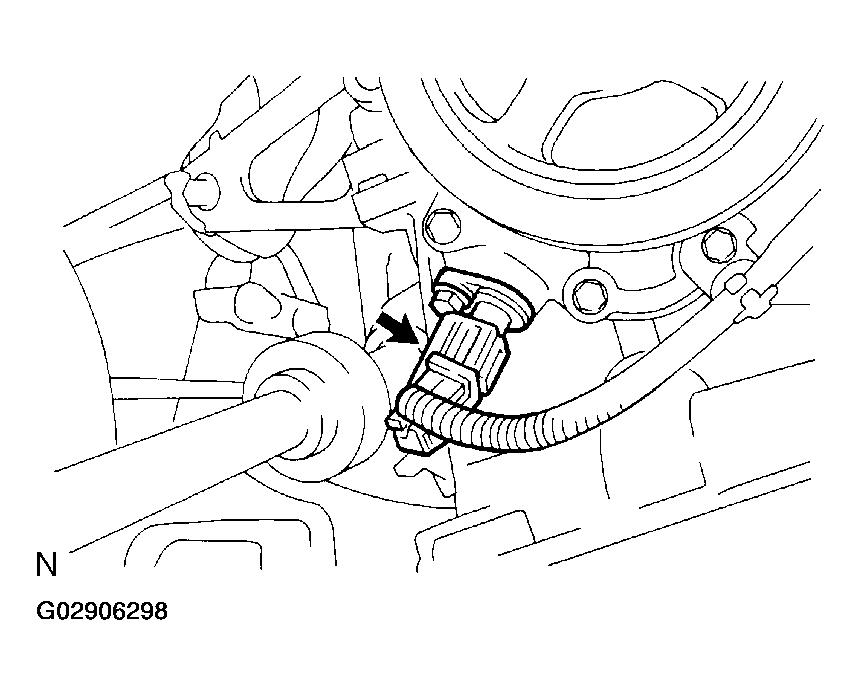

      Fig 1: Removing Connector
      G02906298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crankshaft position sensor.

      Torque:  7.5 N.m (76 kgf.cm, 66 in.lbf)
