Toyota
›
2004
›
ECHO 2D Sedan, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Diagnostics
›
DTC Tests
›
ECM Power Source Circuit
›
Wiring Diagram
ECM Power Source Circuit: Wiring Diagram

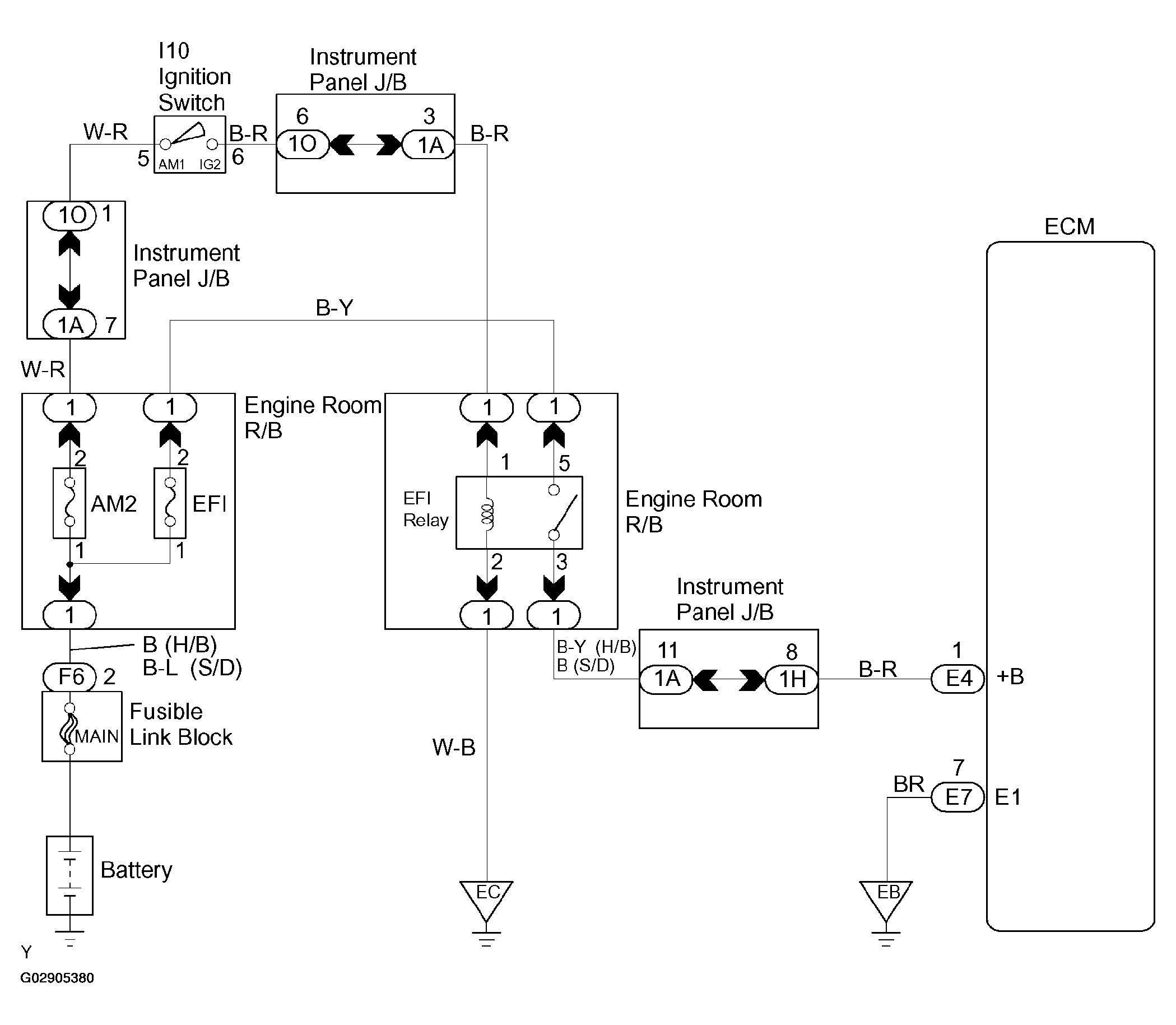

Fig 1: ECM Power Source Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
