Home › Toyota › 2004 › ECHO 2D Sedan, Standard › Repair and Diagnosis › Transmission › Manual Trans › Manual Transaxle › Differential Case › Components

Differential Case: Components

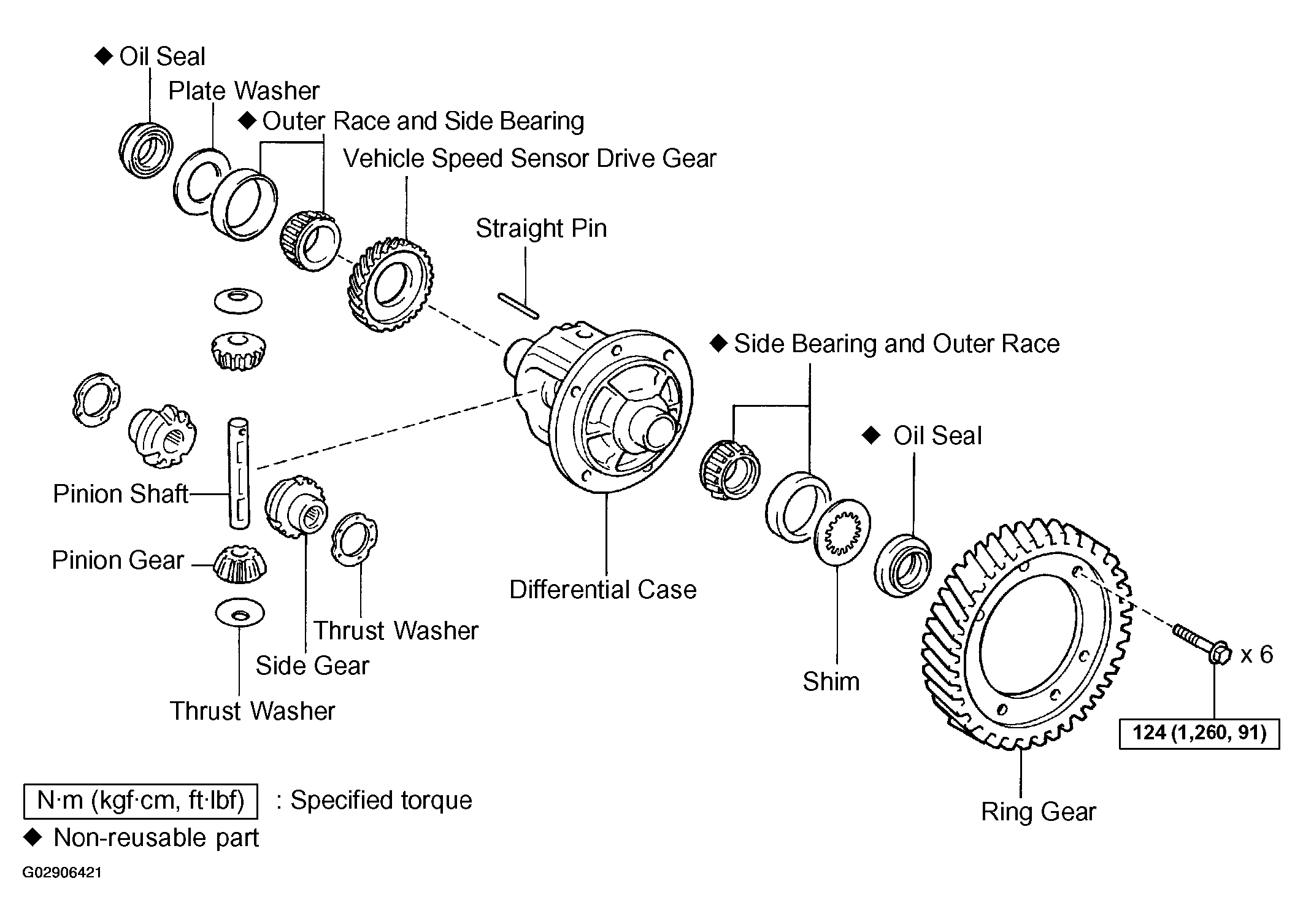

Fig 1: Identifying Differential Case Components
G02906421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
