Shift Lever And Control Cable: Components

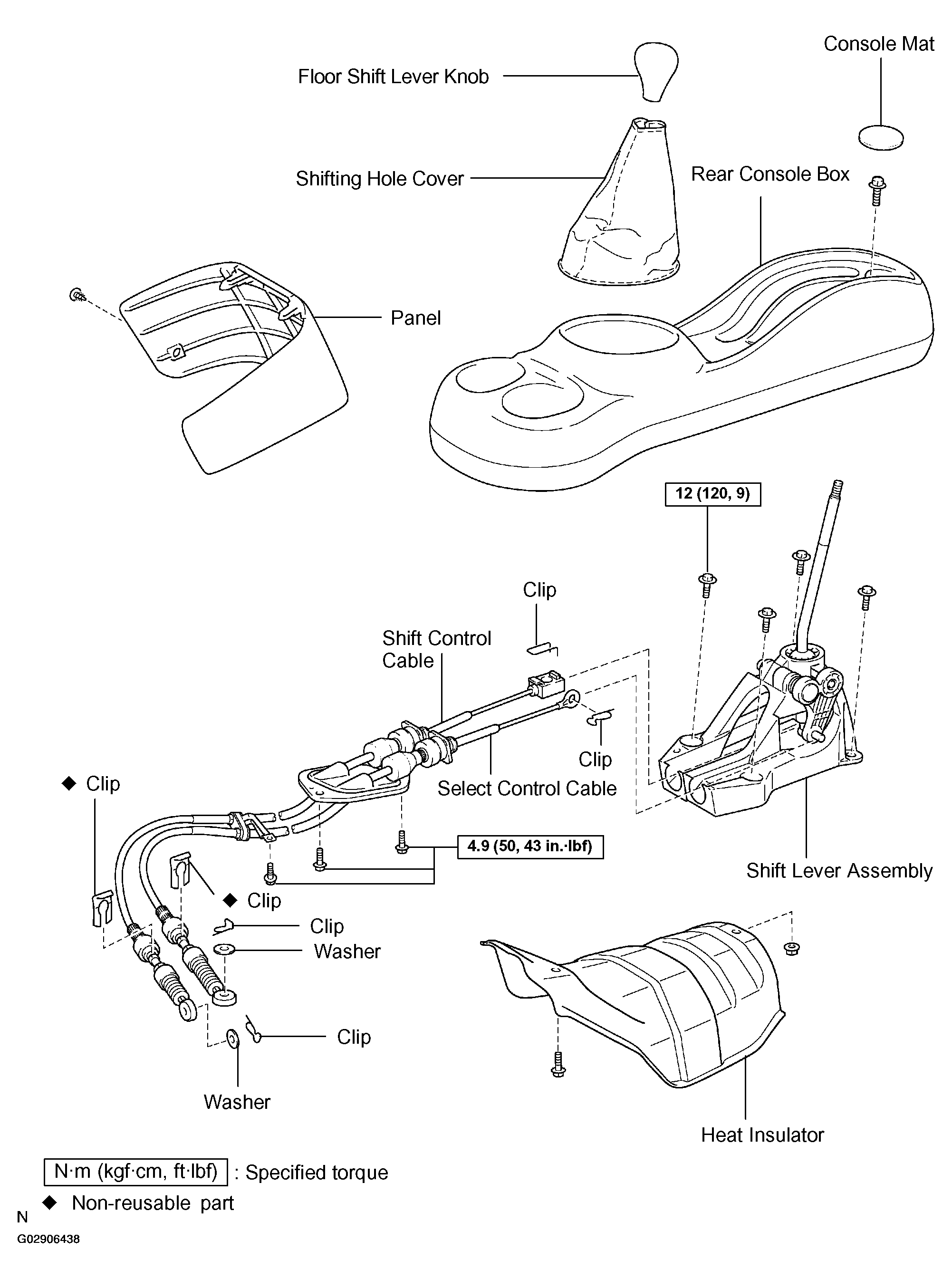

Fig 1: Identifying Shift Lever And Control Cable Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
