Windshield Glass: Components

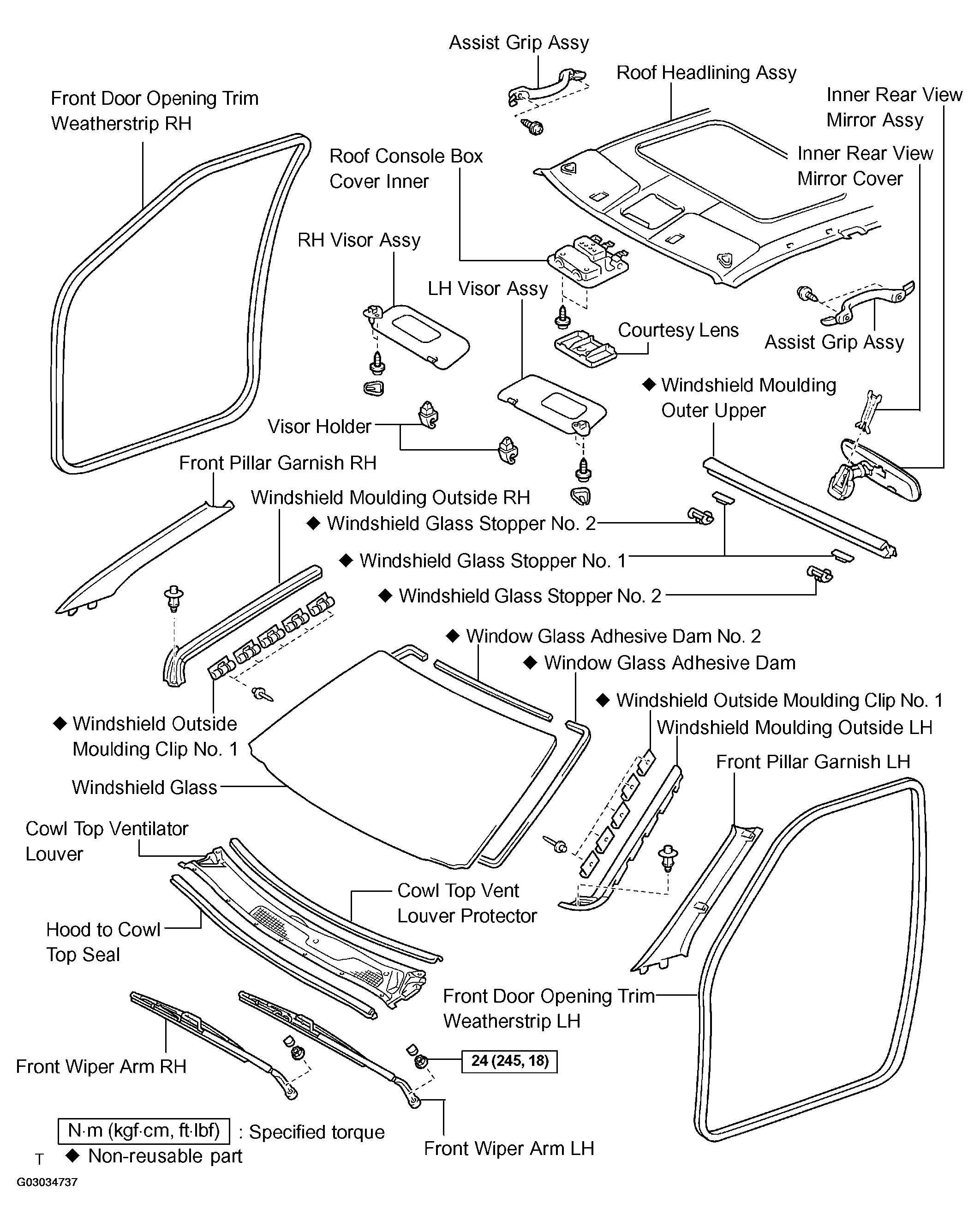

Fig 1: Exploded View of Wind Shield Glass

G03034737

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
