Automatic Transmission Shift Lever Assembly
›
Components
Automatic Transmission Shift Lever Assembly: Components

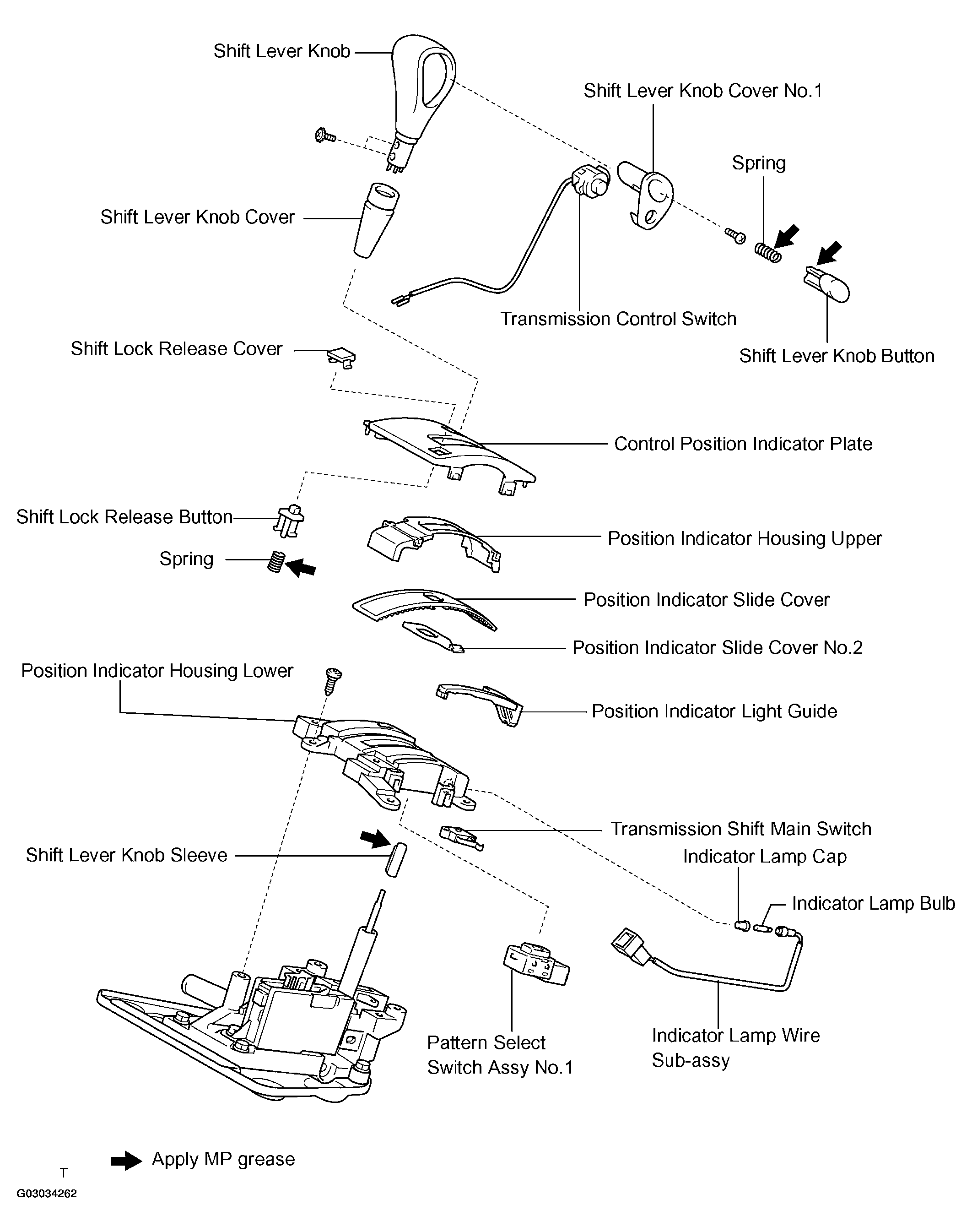

Fig 1: Identifying Shift Lever Assy Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
