Driver Power Window Does Not Operate
›
Wiring Diagram
Driver Power Window Does Not Operate: Wiring Diagram

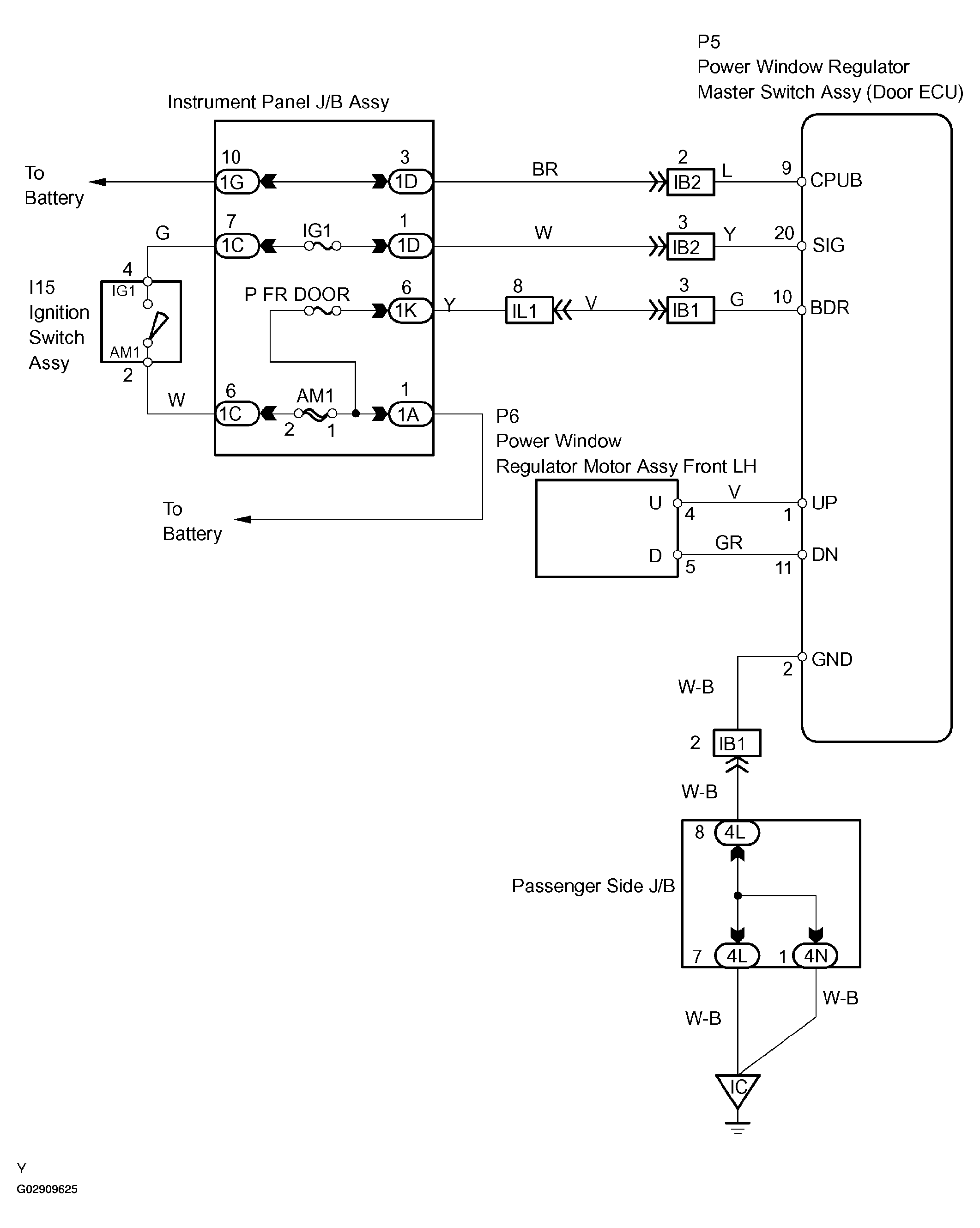

Fig 1: Identifying Power Window Regulator Master Switch Assy (Door ECU) Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
