Engine Control System (SFI) - Diagnostics (3MZ-FE)
›
Fail-Safe Chart
Fail-Safe Chart
If any of the following codes are recorded, the ECM enters fail-safe mode.

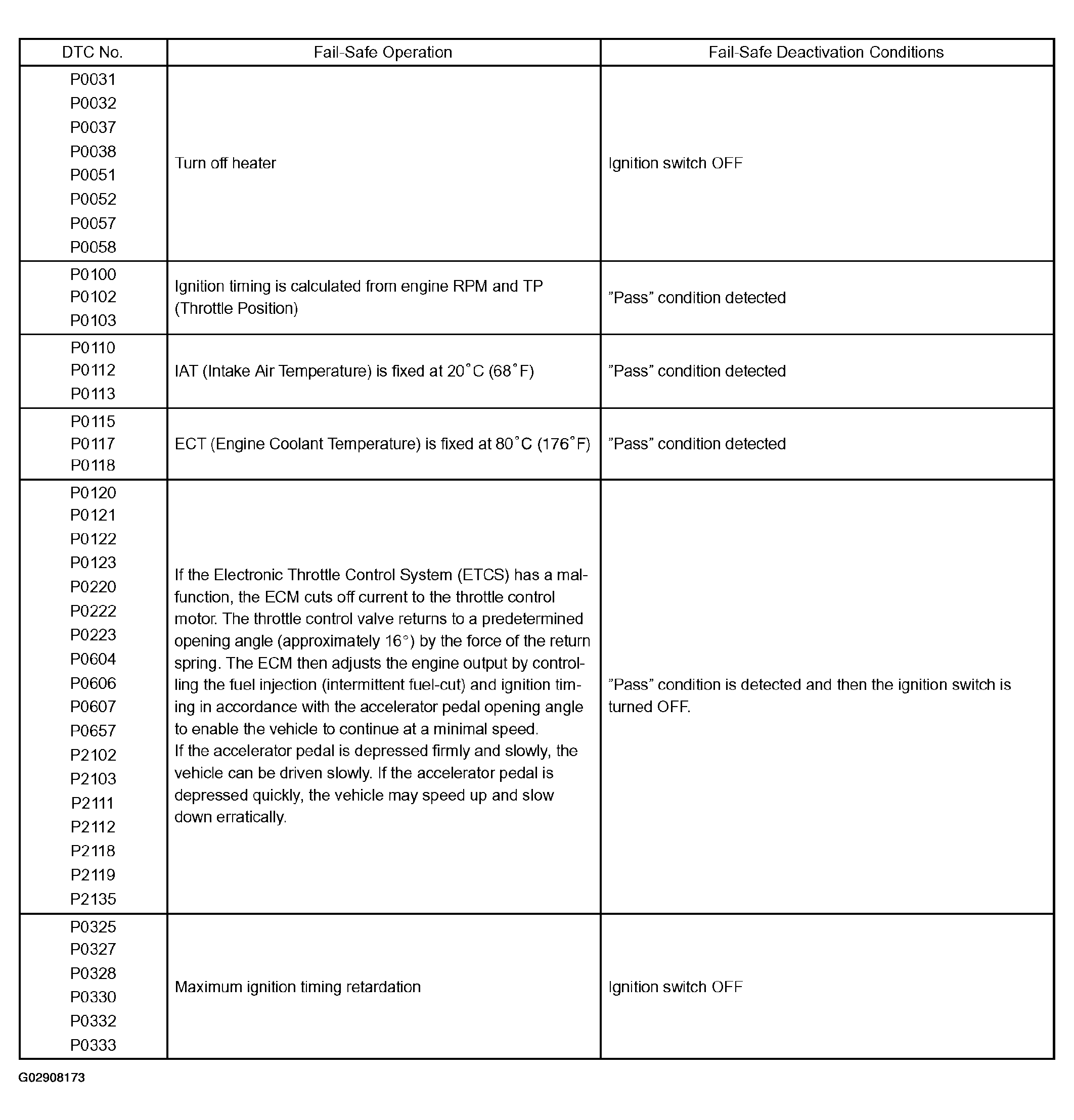

Fig 1: SFI System Fail-Safe Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

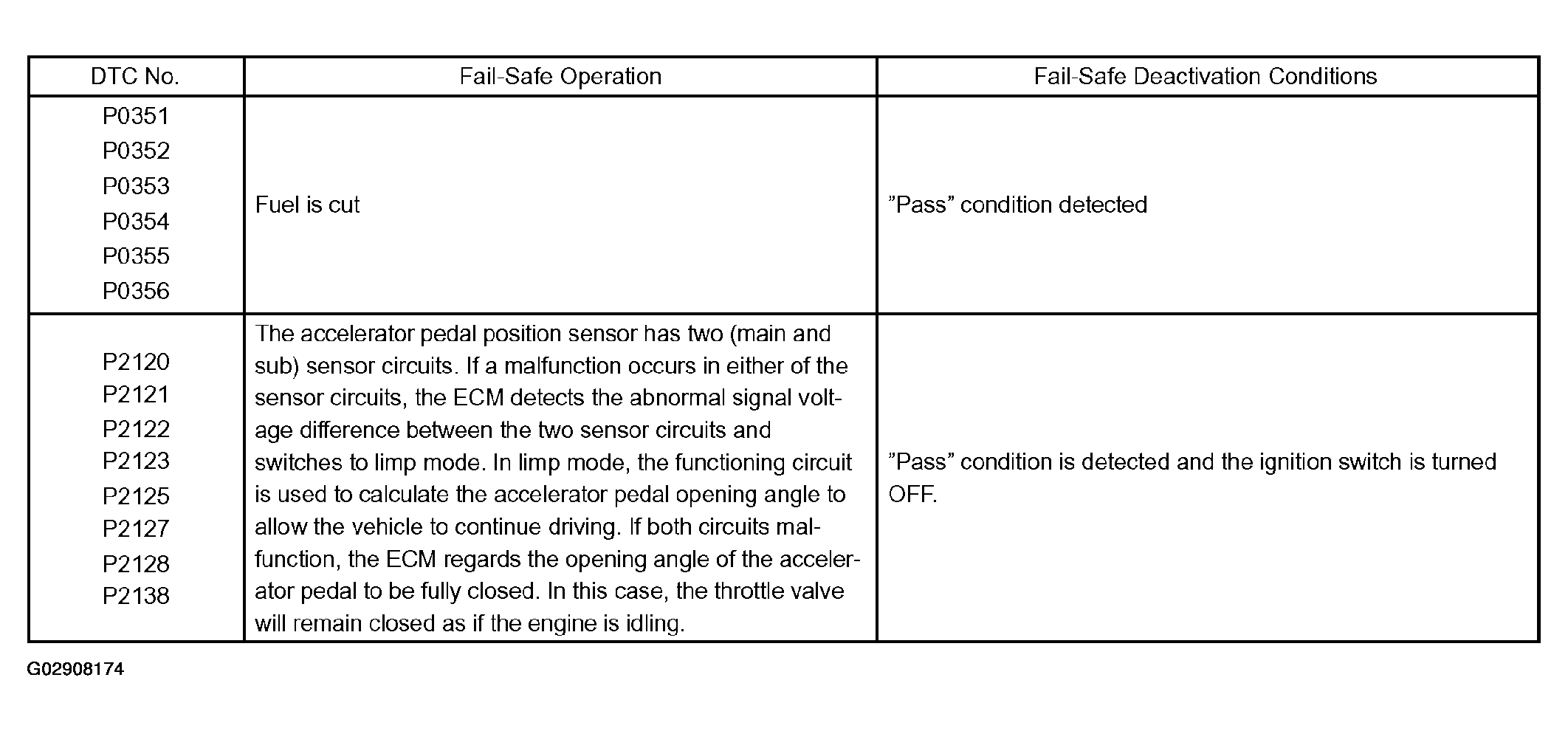

Fig 2: SFI System Fail-Safe Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
