Fuel Injector ASSY (2AZ-FE)
›
Components
Fuel Injector ASSY (2AZ-FE): Components

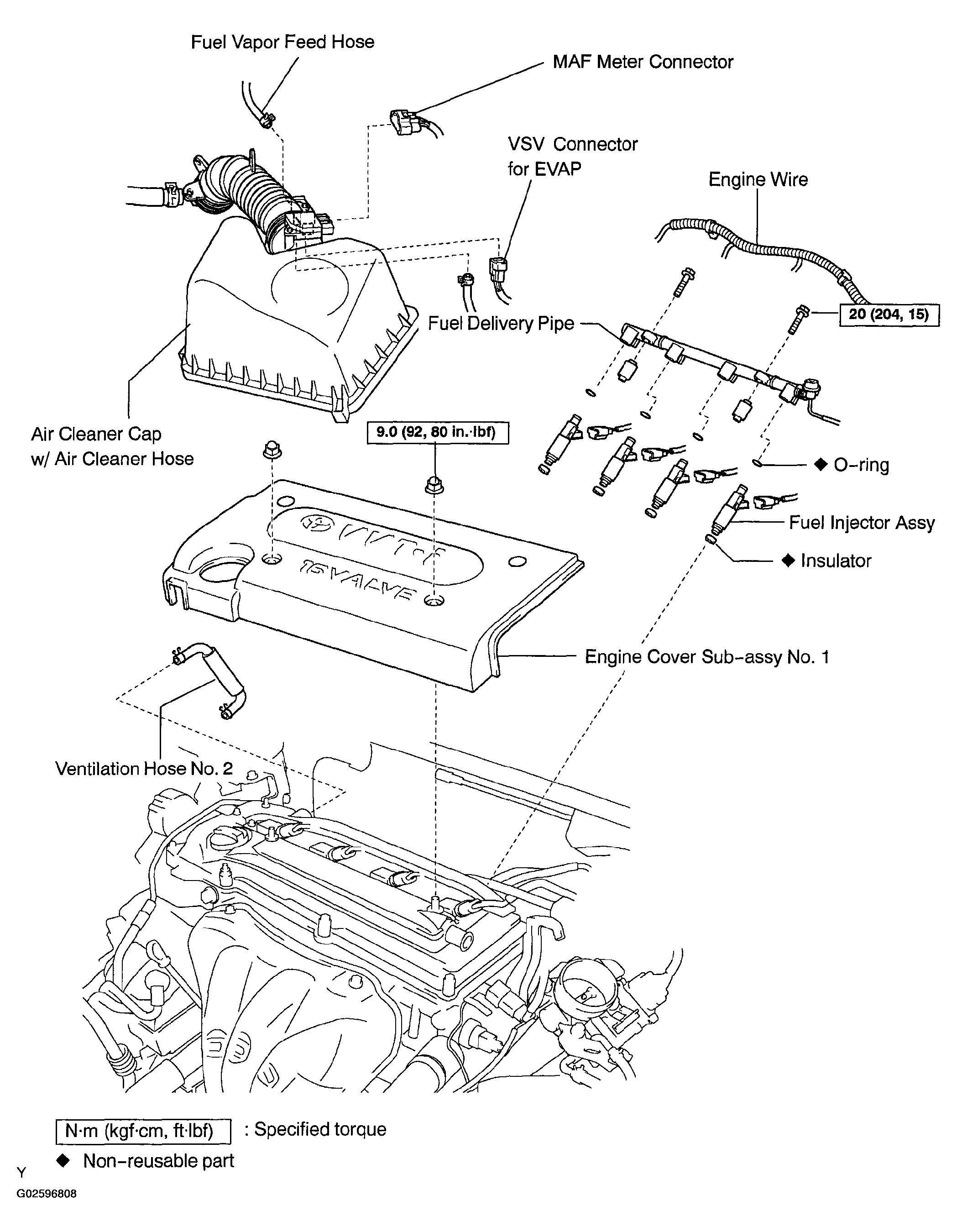

Fig 1: Identifying Fuel Injector Assy Components (2AZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
