Fuel Pump ASSY (3MZ-FE): Components

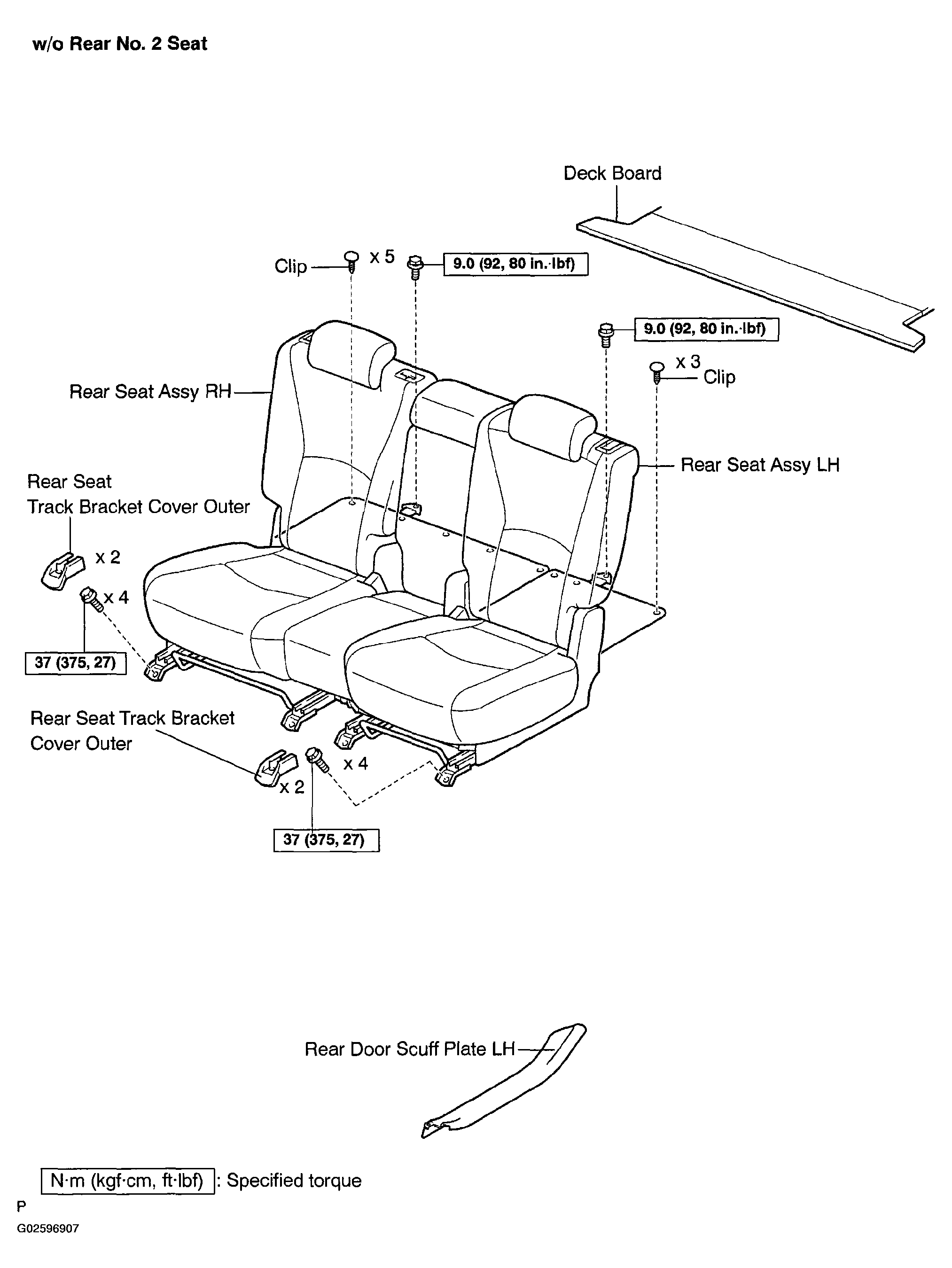

Fig 1: Identifying Fuel Pump Assy Components (3MZ-FE) (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

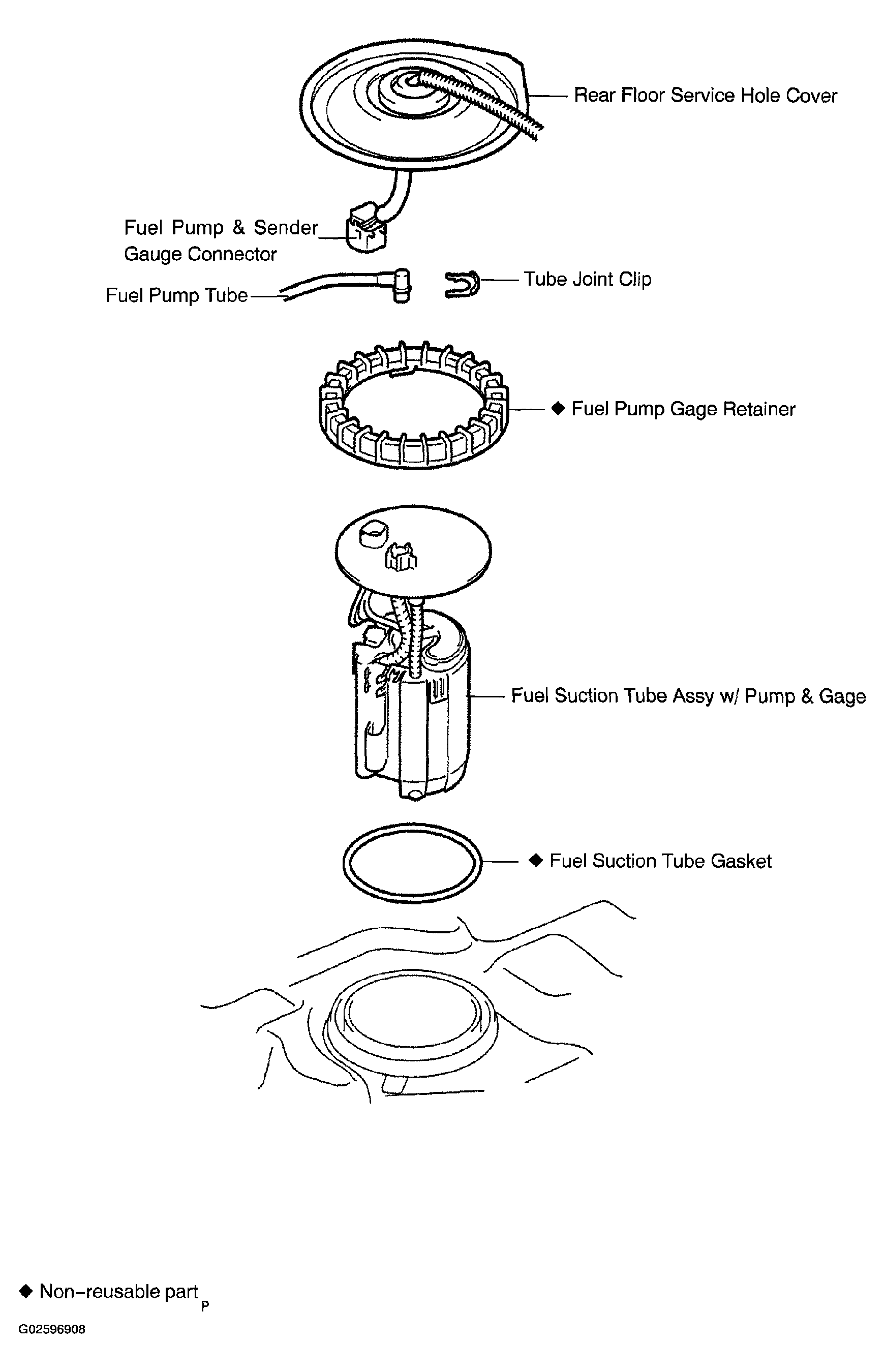

Fig 2: Identifying Fuel Pump Assy Components (3MZ-FE) (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

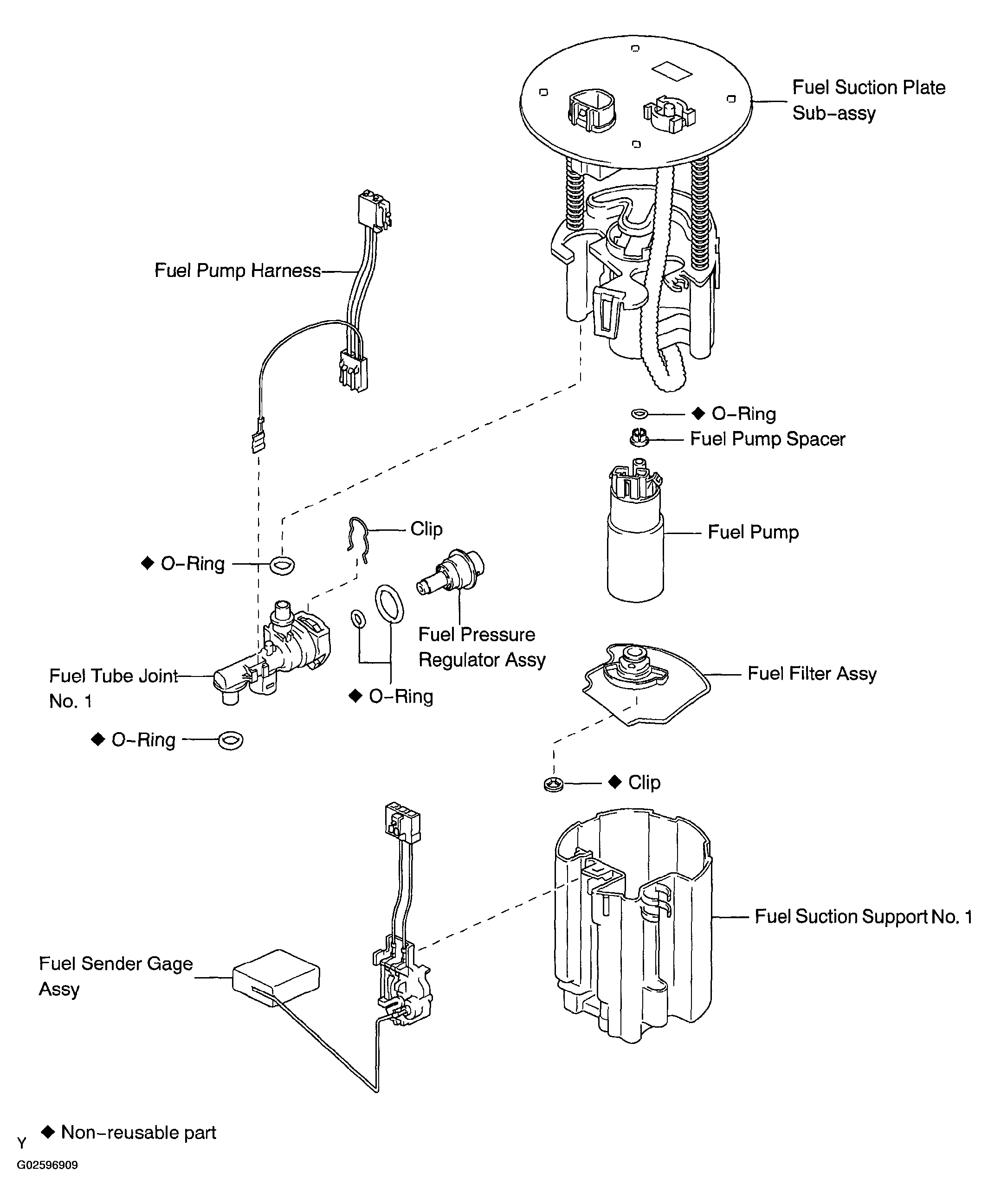

Fig 3: Identifying Fuel Pump Assy Components (3MZ-FE) (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Fuel Pump Assy Components (3MZ-FE) (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
