Automatic Transmission Speed Sensor - U151E/U151F: Replacement

  1. REMOVE BATTERY
  2. REMOVE AIR CLEANER ASSY
  3. REMOVE AIR CLEANER HOSE NO.1
  4. REMOVE SPEED SENSOR (NT SENSOR)
    1. Disconnect the speed sensor connector.
    2. Remove the bolt and speed sensor.
    Fig 1: Removing Speed Sensor (NT Sensor)
    G03034183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SPEED SENSOR (NC SENSOR)
    1. Disconnect the speed sensor connector.
    2. Remove the bolt and speed sensor.

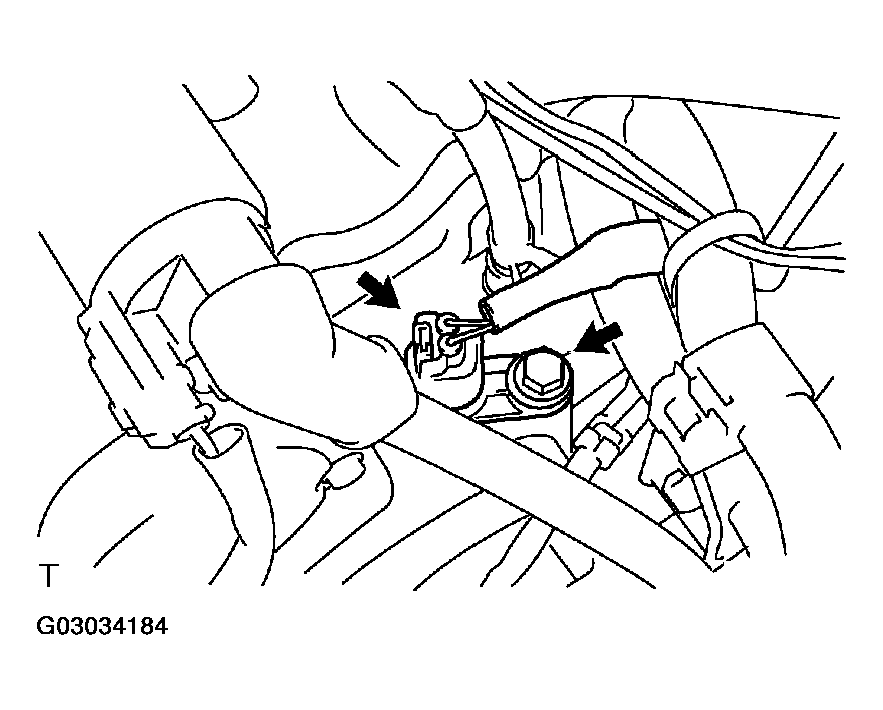

    Fig 2: Removing Speed Sensor (NC Sensor)
    G03034184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL SPEED SENSOR (NC SENSOR)
    1. Coat the O-ring with ATF.
    2. Install the speed sensor with the bolt.

      Torque: 11 NVm (115 kgfVcm, 8 ftVlbf)

      HINT:

      Make sure of the sensor manufacturer's name.

    3. Connect the speed sensor connector.
    Fig 3: Installing Speed Sensor (NC Sensor)
    G03034185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL SPEED SENSOR (NT SENSOR)
    1. Coat the O-ring with ATF.
    2. Install the speed sensor with the bolt.

      Torque: 11 NVm (115 kgfVcm, 8 ftVlbf)

      HINT:

      Make sure of the sensor manufacturer's name.

    3. Connect the speed sensor connector.

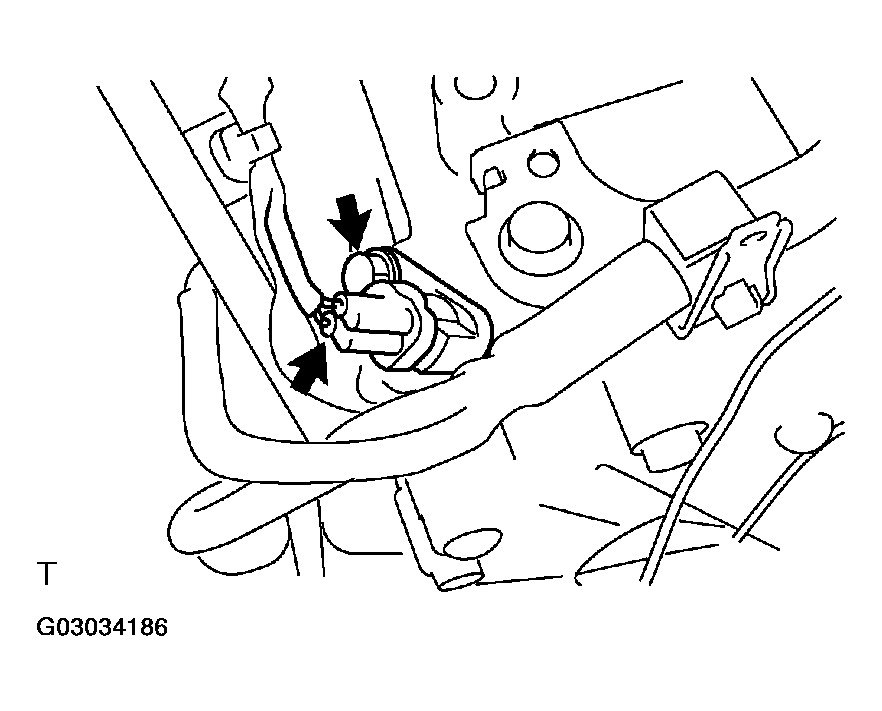

    Fig 4: Installing Speed Sensor (NT Sensor)
    G03034186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL AIR CLEANER HOSE NO.1
  9. INSTALL AIR CLEANER ASSY
  10. INSTALL BATTERY
  11. PERFORM INITIALIZATION (See  IDENTIFICATION INFORMATION  )
