Body Control Systems - Diagnostics
›
DRL Relay Circuit
›
Wiring Diagram
DRL Relay Circuit: Wiring Diagram

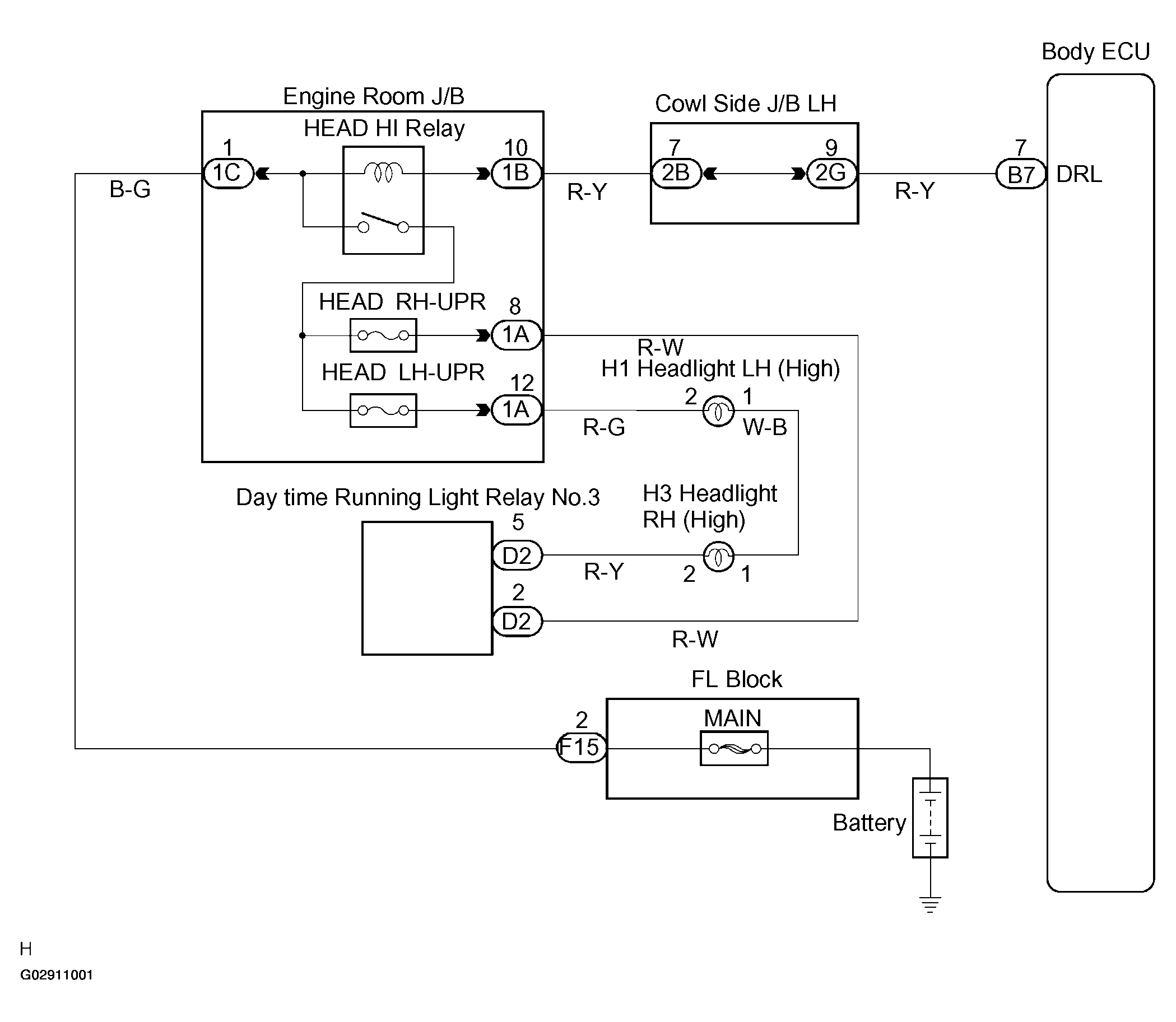

Fig 1: DRL Relay Wiring Diagram
