Key Unlock Warning Switch Circuit
›
Wiring Diagram
Key Unlock Warning Switch Circuit: Wiring Diagram

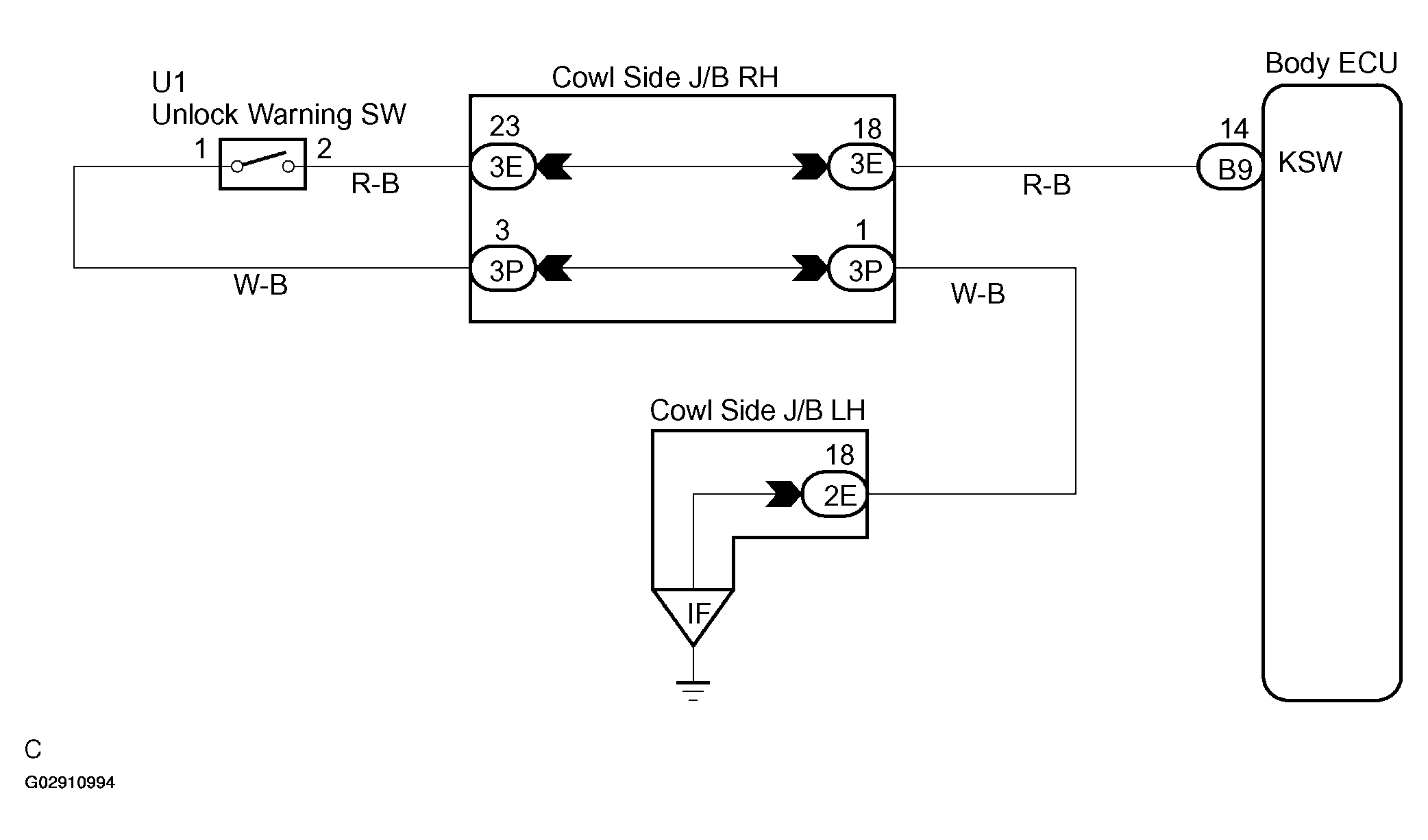

Fig 1: Key Unlock Warning Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
