Body Control Systems - Diagnostics
›
Power Source Circuit
›
Wiring Diagram
Power Source Circuit: Wiring Diagram

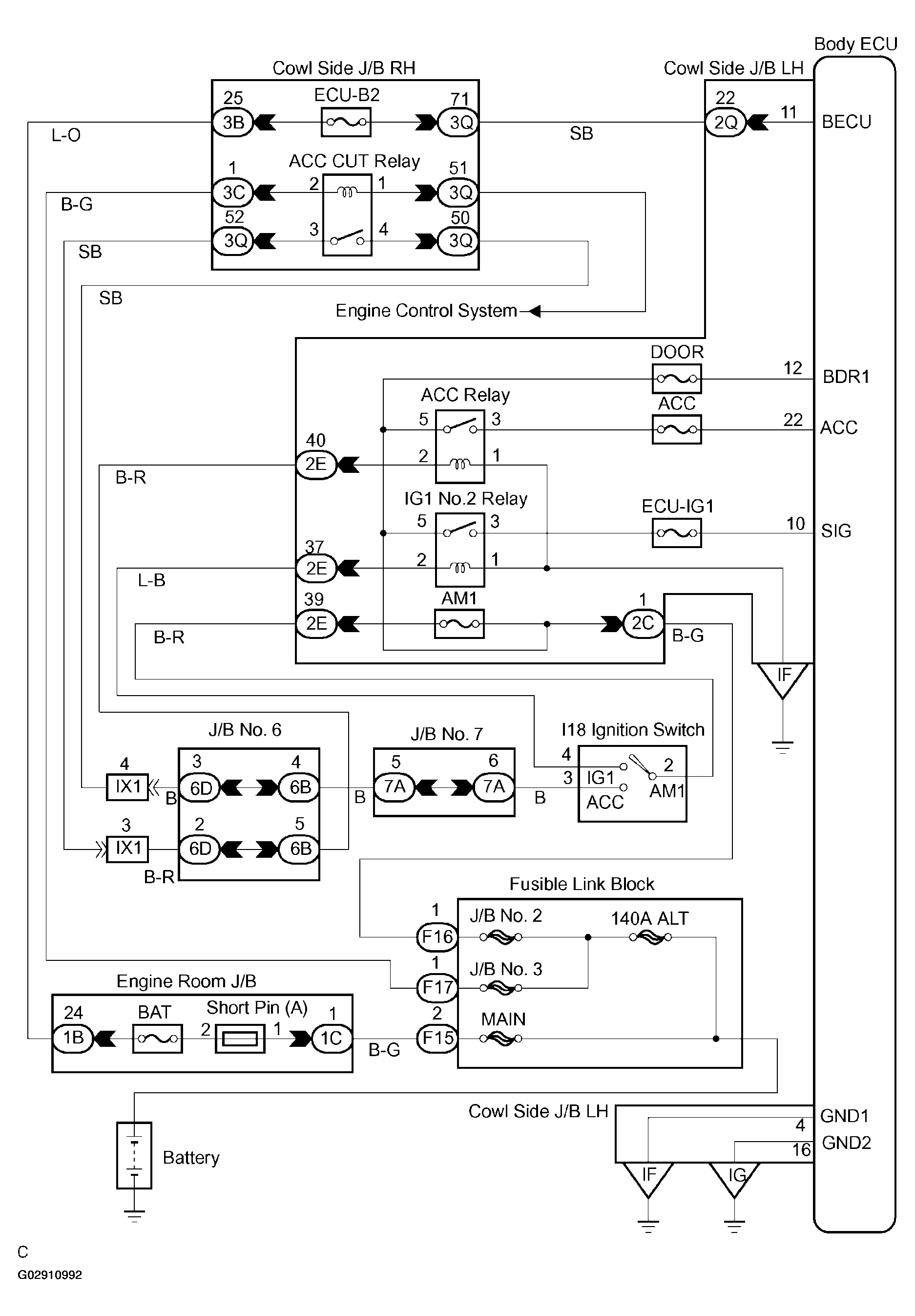

Fig 1: Power Source Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
