Body Control Systems - Diagnostics
›
Wireless Door Lock Control Circuit
›
Wiring Diagram
Wireless Door Lock Control Circuit: Wiring Diagram

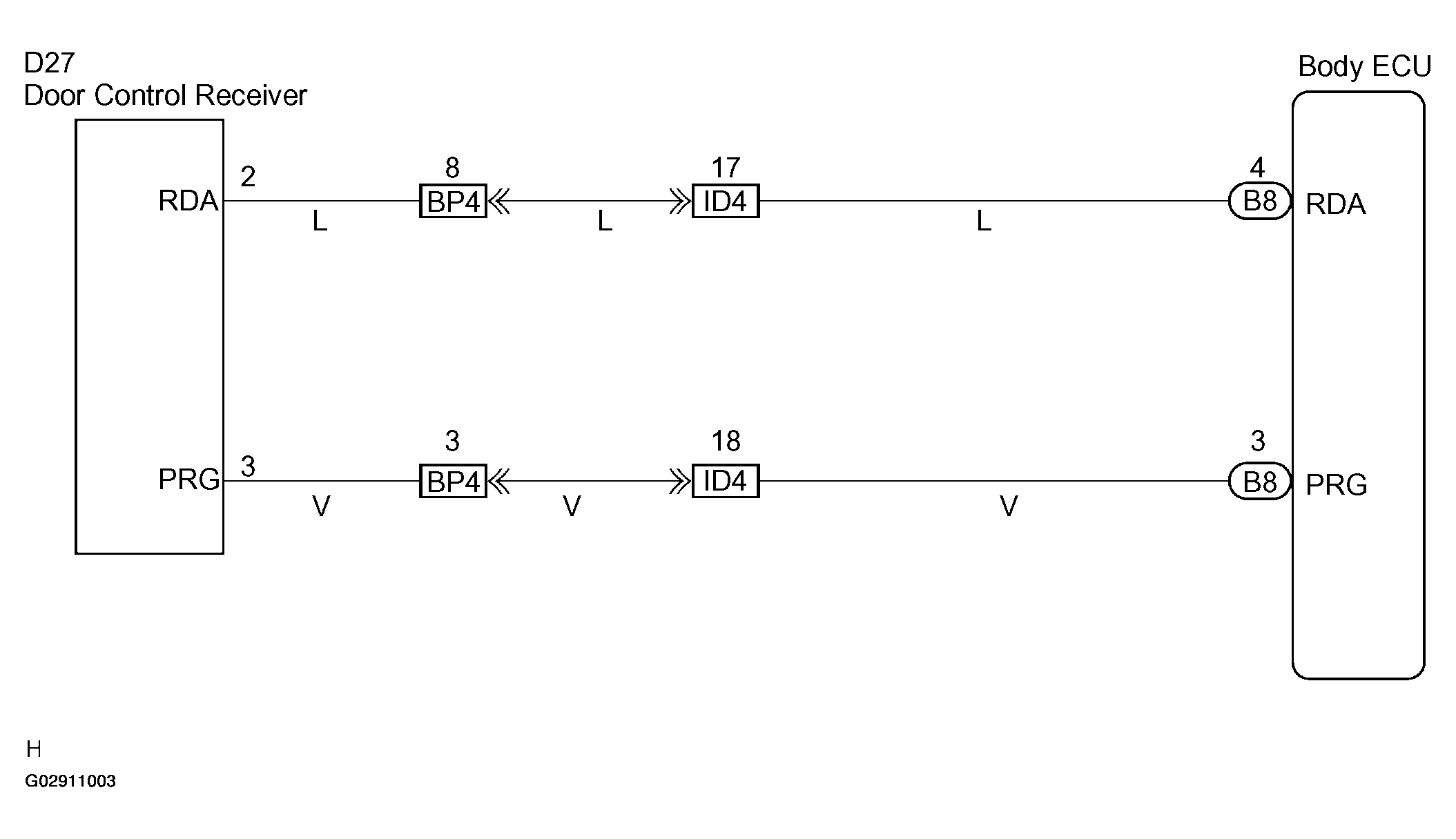

Fig 1: Wireless Door Lock Control Wiring Diagram
