Customize Check Sheet

Before doing customize service, please check the current value of the customer's vehicle and fill in it on the check sheet.

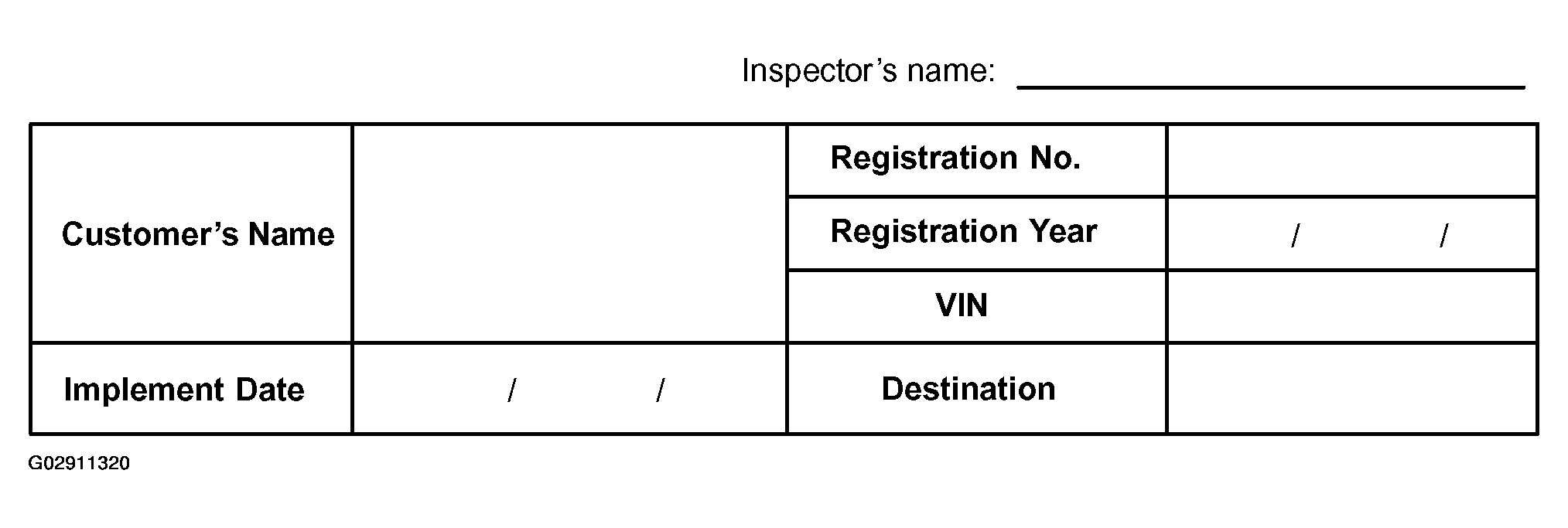

Fig 1: Customize Check Sheet

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WIRELESS DOOR LOCK

WIRELESS DOOR LOCK DEFAULT

ITEM	BEFORE	AFTER	DEFAULT
WIRELESS OPER	ON / OFF	ON / OFF	ON
UNLOCK / 2OPER	ON / OFF	ON / OFF	ON
AUTO LOCK DELAY	30s / 60s	30s / 60s	30s
HAZARD ANS BACK	ON / OFF	ON / OFF	ON

DOOR LOCK

DOOR LOCK DEFAULT

ITEM	BEFORE	AFTER	DEFAULT
UNLOCK/ PARK (#)	ON / OFF	ON / OFF	OFF
ALLUNLK/OPN-CL(#)	ON / OFF	ON / OFF	OFF
UNLK/ KEY TWICE	ON / OFF	ON / OFF	ON
AUTO LOCK	ON / OFF	ON / OFF	OFF
AUTO LOCK/SHIFT	ON / OFF	ON / OFF	ON

SECURITY

SECURITY DEFAULT

ITEM	BEFORE	AFTER	DEFAULT
PASSIVE MODE (#)	ON / OFF	ON / OFF	OFF
WARNING (HORN) (#)	ON / OFF	ON / OFF	ON
ENTRY DELAY (#)	0s/ 14s / 30s	0s/ 14s / 30s	14s
WARN BY GLS SEN (#)	ON / OFF	ON / OFF	ON
INTRUSION SEN	ON / OFF	ON / OFF	ON

ILLUMINATED ENTRY

ILLUMINATED DEFAULT

ITEM	BEFORE	AFTER	DEFAULT
LIGHTING TIME	7.5s / 15s / 30s	7.5s / 15s / 30s	15s
I/LON UNLOCK	ON / OFF	ON / OFF	ON
I/L ON/ACC OFF	ON / OFF	ON / OFF	ON

LIGHT CONTROL

LIGHT CONTROL DEFAULT

ITEM	BEFORE	AFTER	DEFAULT
SENSITIVITY	DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2	DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2	NORMAL
LIGHT OFF DELAY	OFF / 30s / 60s / 90s	OFF / 30s / 60s / 90s	30 s
DRL FUNCTION (#) (USA ONLY)	ON / OFF	ON / OFF	ON

TILT & TELESCO

TILT & TELESCO DEFAULT

ITEM	BEFORE	AFTER	DEFAULT
AUTO TILT AWAY (#)	ON / OFF	ON / OFF	ON
