Front Seat: Disassembly

  1. REMOVE HEADREST
  2. REMOVE SEATBACK BOARD

    Remove the seatback board as shown in Fig 1 .

    HINT:

    Remove the seatback board in the order of "A" and "B" as shown in Fig 1 .

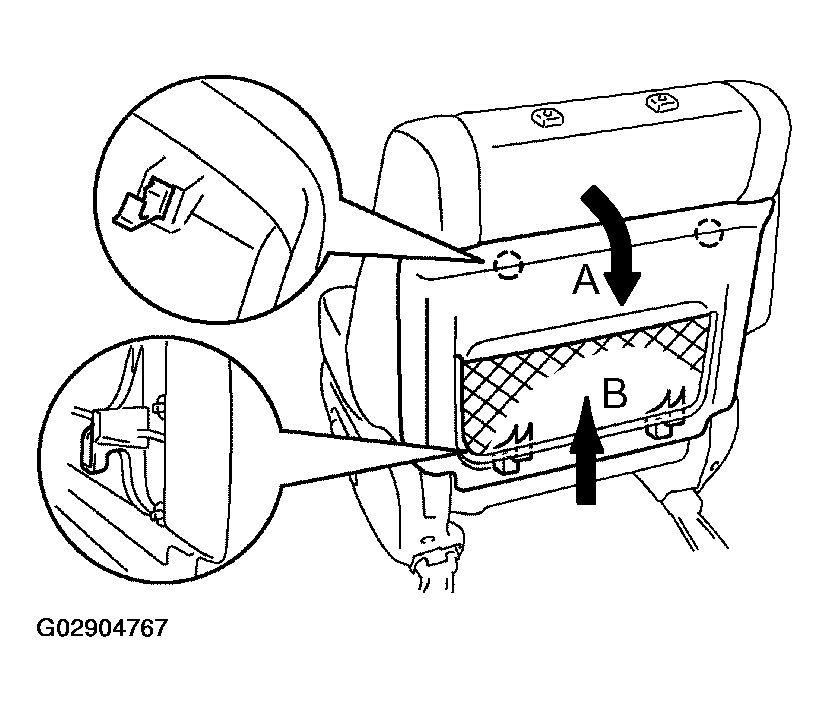

    Fig 1: Removing Seat Back Board
    G02904767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SEAT CUSHION OUTER SHIELD
    1. Using a screwdriver, remove the power seat switch knobs.

      HINT:

      Tape up the screwdriver tip before use.

    2. Remove the 4 screws.
      Fig 2: Removing 4 Screws Of Seat Cushion Outer Shield
      G02904768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connectors as shown in Fig 3 .
    4. Remove the seat cushion outer shield.
      Fig 3: Disconnecting Connectors
      G02904769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 3 screws and the power seat switch from the seat cushion outer shield.
    6. Remove the 2 screws and lumber support switch from the seat cushion outer shield.
    Fig 4: Removing Screws
    G02904770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT SEAT INNER BELT
    1. Remove the clamp, then disconnect the connector.
    2. Remove the bolt and the inner belt.
    Fig 5: Removing Bolt & Inner Belt
    G02904771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SEAT CUSHION INNER SHIELD

    Remove the 3 screws and the seat cushion inner shield.

    Fig 6: Removing Screws Of Seat Cushion Inner Shield
    G02904772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE LOWER SEAT CUSHION SHIELD

    Remove the screw and the lower seat cushion shield as shown in Fig 7 .

    Fig 7: Removing Screw & Lower Seat Cushion Shield
    G02904773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT SEAT CUSHION SHIELD

    Remove the screw and the front seat cushion shield.

    Fig 8: Removing Screw & Front Seat Cushion Shield
    G02904774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SEAT CUSHION ASSEMBLY
    1. Remove the 4 bolts.
    2. Remove the clamps from the seat cushion assembly.
  9. REMOVE SEAT CUSHION FRAME
    1. Disengage the hook.
    2. Remove the hog rings and the seat cushion frame from the seat cushion cover with pad.
  10. REMOVE SEAT CUSHION COVER (See  REPLACEMENT  )
  11. IF NECESSARY, REPLACE SEAT CUSHION HEATER (See  REPLACEMENT  )

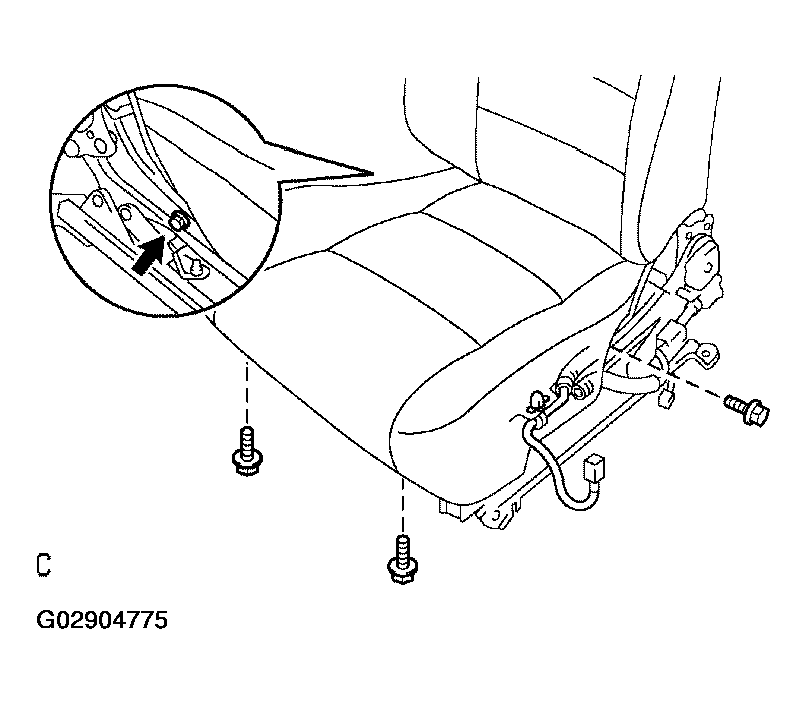

    Fig 9: Removing Bolts & Clamps From Seat Cushion Assembly
    G02904775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE SEATBACK ASSEMBLY
    1. Remove the hog rings.
    2. Disengage the hook as shown in Fig 10 .
    3. Disconnect the connectors.

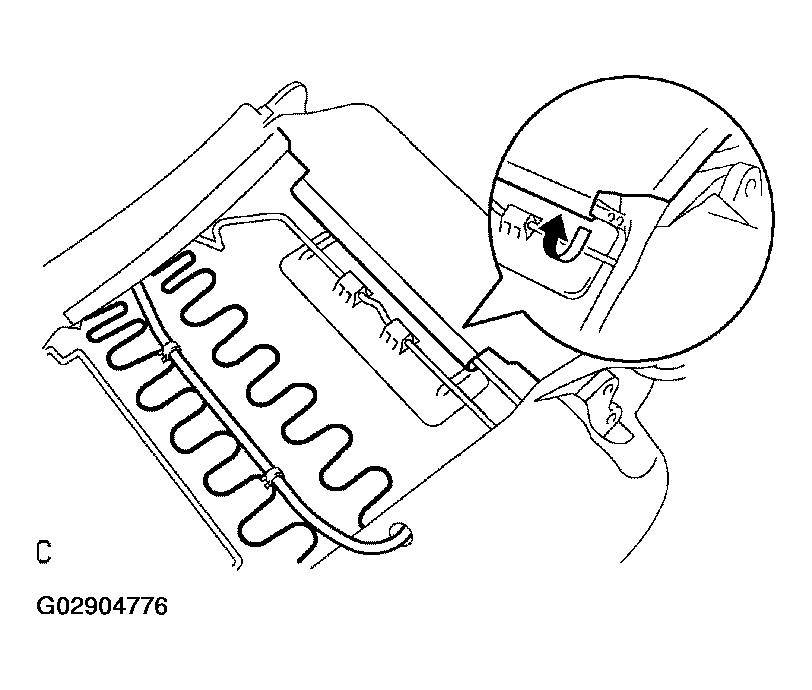

      Fig 10: Disengaging Hook
      G02904776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 4 bolts and the seatback assembly.
      NOTE: When handling the airbag connector take care not to damage the airbag wire harness.
    5. Remove the screw and the RH reclining adjuster inside shield.
    6. w/ Side Airbag:

      Disconnect the side airbag connector.

      NOTE: When handling the airbag connector take care not to damage the airbag wire harness.
    7. Remove the screw and the LH reclining adjuster inside shield.

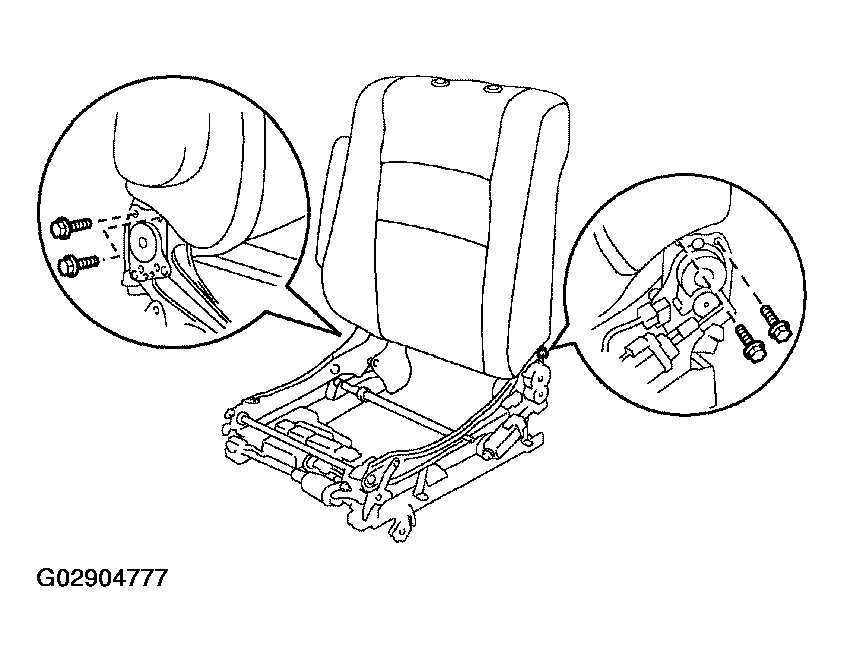

    Fig 11: Removing 4 Bolts Of Seat Back Assembly
    G02904777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE ARMREST
  14. w/o Side Airbag:

    REMOVE SEATBACK FRAME

    1. Remove the hog rings.
    2. Remove the 2 headrest supports.
    3. Remove the seatback frame from the seatback cover with pad.
    Fig 12: Removing Seat Back Frame (w/o Side Air Bag)
    G02904778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. w/ Side Airbag:

    REMOVE SEATBACK FRAME

    1. Remove the hog rings, the clamps and the 2 bolts.
    2. Remove the 2 headrest supports.
    3. Remove the seatback frame from the seatback cover with pad.
    Fig 13: Removing Seat Back Frame (W/Side Air Bag)
    G02904779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE LUMBER SUPPORT

    Remove the 2 bolts, the lumber support and the spacer.

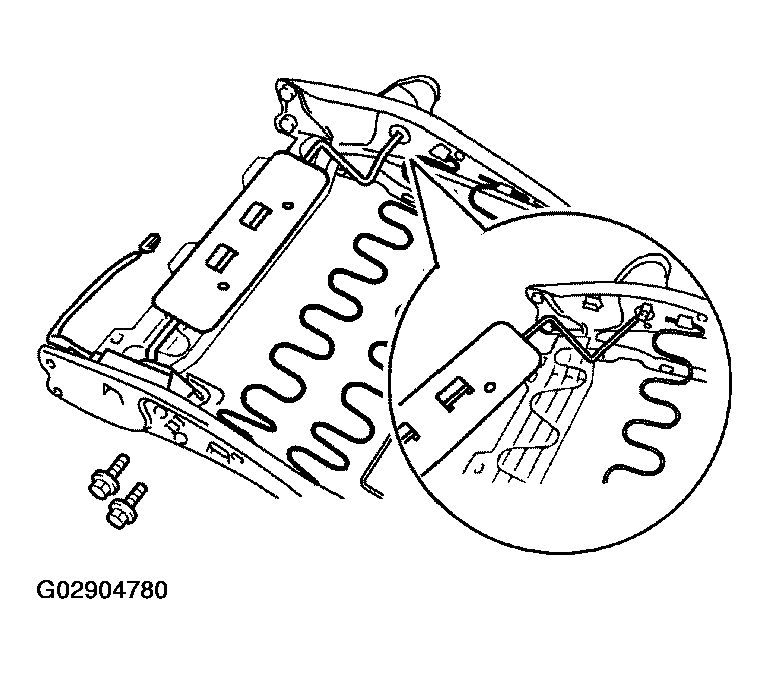

    Fig 14: Removing 2 Bolts Lumber Support & Spacer
    G02904780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE SEATBACK COVER

    Remove the hog rings and the seatback cover from the seatback pad.

  18. IF NECESSARY, REPLACE SEATBACK HEATER (See  REPLACEMENT  )
  19. REMOVE SEAT POSITION CONTROL RELAY
    1. Disconnect the connectors.
    2. Remove the 2 bolts and the seat position control relay.
    Fig 15: Removing Hog Rings & Seatback Cover From Seat Back Pad
    G02904781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. Driver's Side:

    REMOVE SEAT POSITION SENSOR

    Remove the bolt and the seat position sensor then disconnect the connector.

    Fig 16: Removing Bolt & Seat Position Sensor
    G02904782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
