Front Seat: Reassembly

INSTALL SEAT POSITION SENSOR

Install the seat position sensor with a new bolt, then connect the connector.

1. Part No.:
2. Bolt: 90119-06871
3. Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

Install the seat position control relay with the 2 bolts, then connect the connectors.

1. Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

Fig 1: Installing Seat Position Sensor With New Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the seatback cover to the seatback pad with new hog rings.

Fig 2: Installing Seat Back Cover To Seat Back Pad With New Hog Rings

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

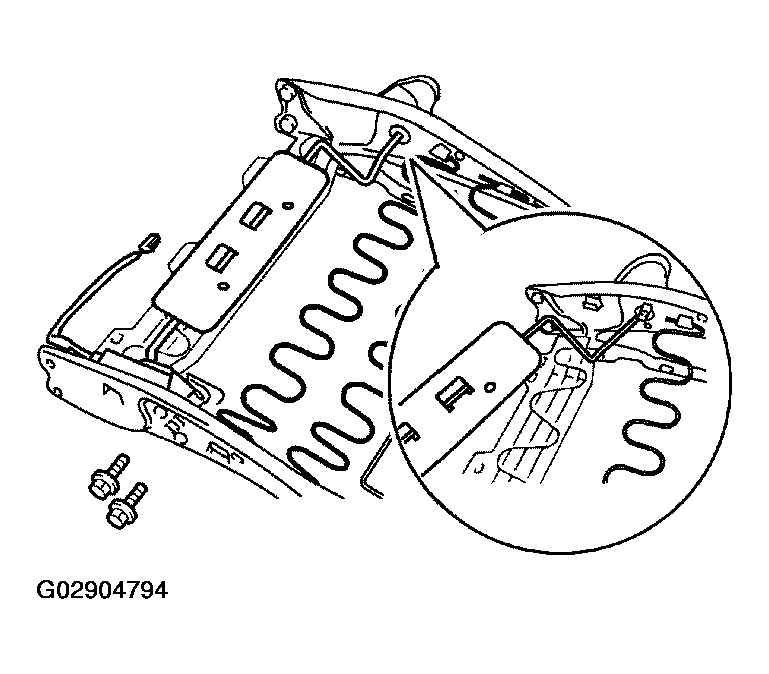

Install the lumber support and the spacer with the 2 bolts.

Fig 3: Installing Lumber Support & Spacer With 2 Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL SEATBACK FRAME

1. Install the seatback cover to the seatback frame.
2. Install new hog rings.
3. Install the 2 headrest supports.

Fig 4: Installing Seat Back Frame (W/O Side Airbag)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL SEATBACK FRAME

1. Install the seatback cover to the seatback frame.
2. Install new hog rings, the clamps and the 2 bolts.
   1. Torque: 4.7 N.m (48 kgf.cm, 42 in.lbf)
3. Install the 2 headrest supports.

1. w/o Side Airbag:

   Install the RH reclining adjuster inside shield with a screw.

   Fig 5: Installing Seat Back Frame (W/ Side Airbag)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/ Side Airbag:

   Place the airbag connector along the inner seat adjuster, and then install the RH reclining adjuster inside shield with a screw so that the connector is placed in between.

   NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
3. Install the LH reclining adjuster inside shield with a screw.
   Fig 6: Installing RH Reclining Adjuster Inside Shield With Screw

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

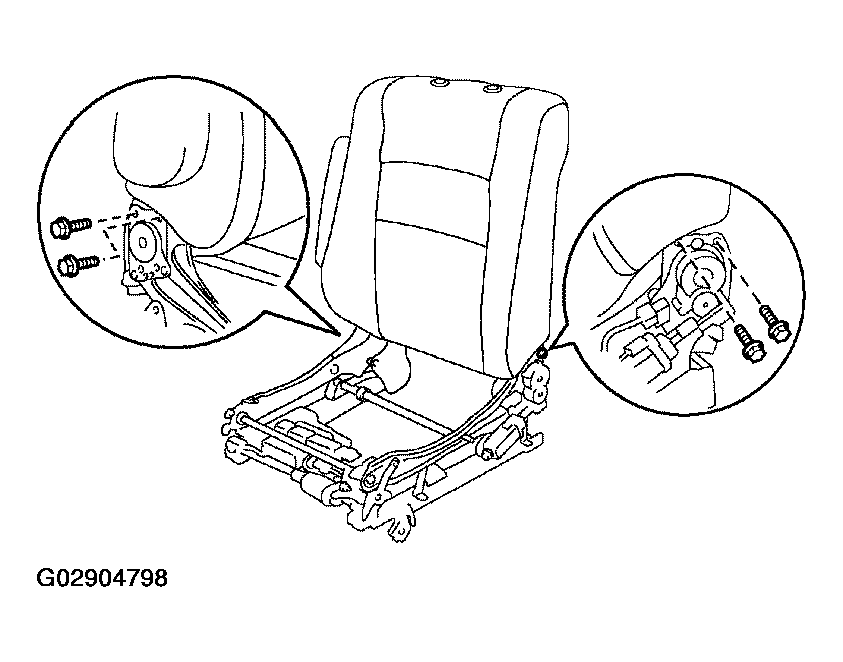

4. Install the seatback assembly with the 4 bolts.
   1. Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
5. Install new hog rings.
   Fig 7: Installing Seat Back Assembly Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

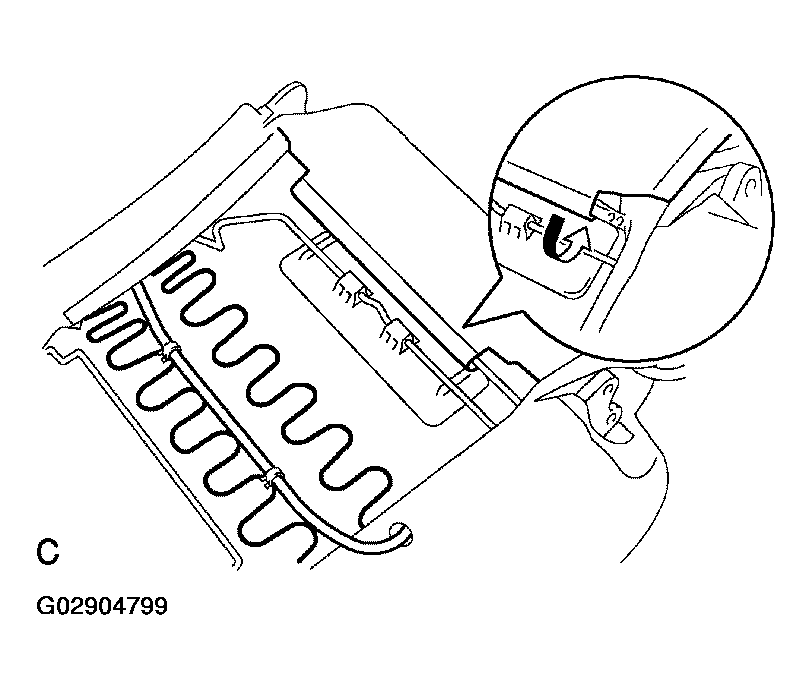

6. Hang the hook.
7. Connect the connectors.

1. Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)

1. Install the seat cushion frame with new hog rings to the seat cushion cover with pad.
2. Hang the hook.

Fig 8: Hanging Hook

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

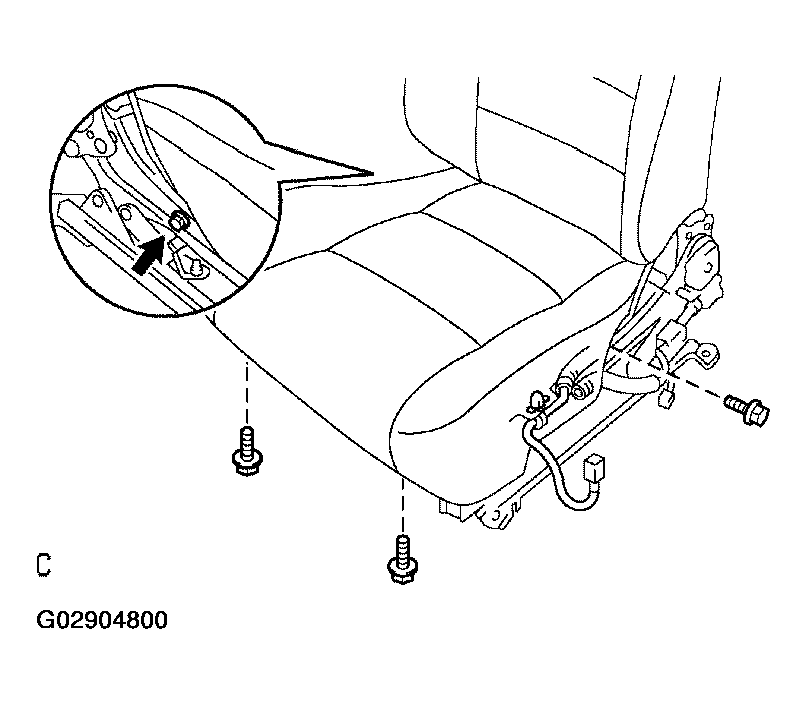

1. Install the seat cushion assembly with the 4 bolts to the seat adjuster.
   1. Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)
2. Engage the wire harness clamp.

Fig 9: Installing Seat Cushion Assembly To Seat Adjuster

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the seat cushion shield with the screw.

Fig 10: Installing Seat Cushion Shield With Screw

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the seat cushion shield with the screw.

Fig 11: Installing Seat Cushion Shield With Screw

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the seat cushion inner shield with the 3 screws.

Fig 12: Installing Seat Cushion Inner Shield Screws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the clamp, then connect the connector.
2. Install the inner belt with the bolt.

1. Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

1. Install the power seat switch with the 3 screws.
2. Install the lumber support switch with the 2 screws.
   Fig 13: Installing Inner Belt With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the connectors as shown in Fig 14 .
4. Install the seat cushion outer shield with the 4 screws.
5. Install the power seat switch knobs.
