Trailer Towing System: Location

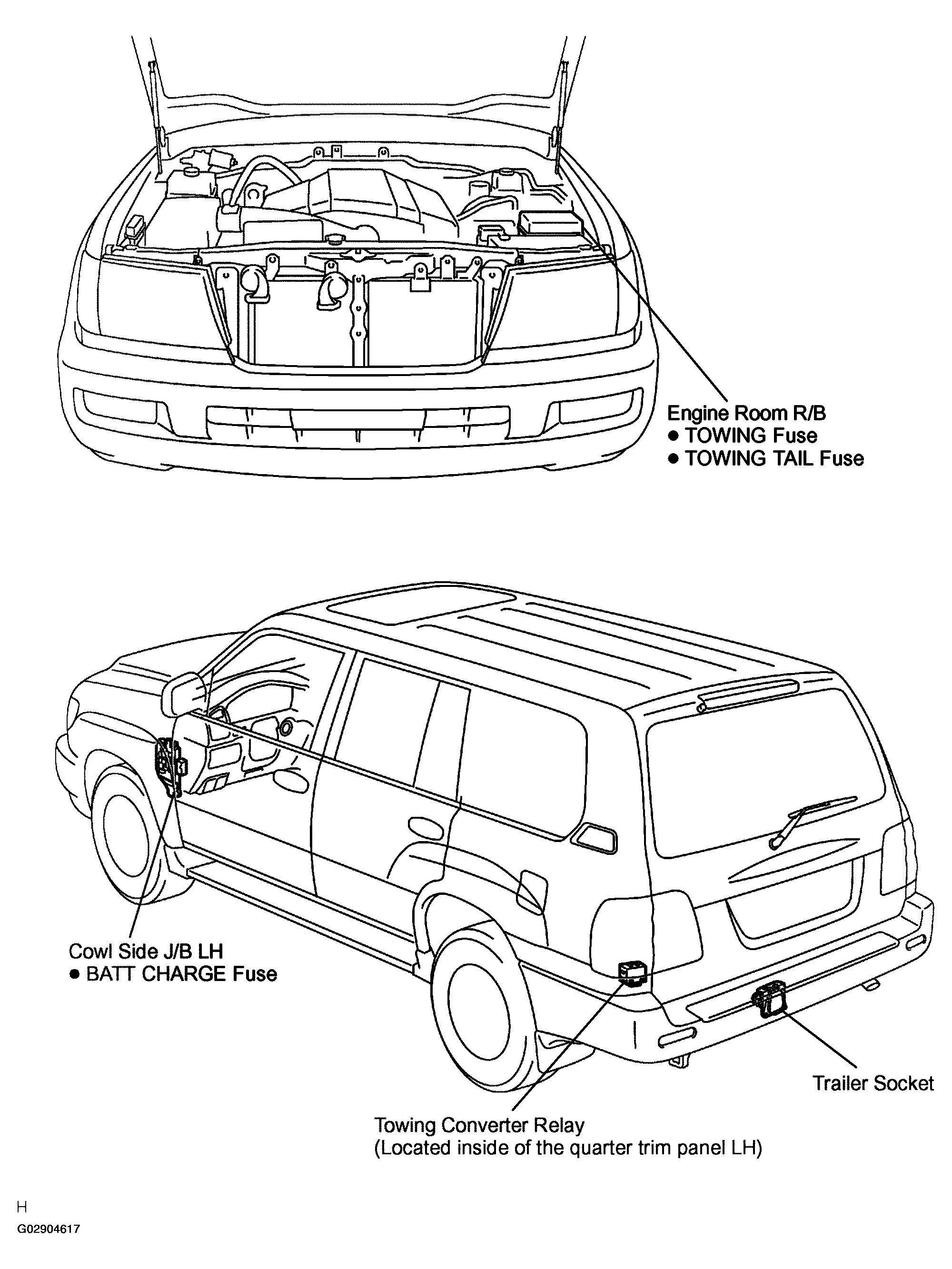

Fig 1: Locating Trailer Towing Components

G02904617

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
