Rear Brake Speed Sensor: Components

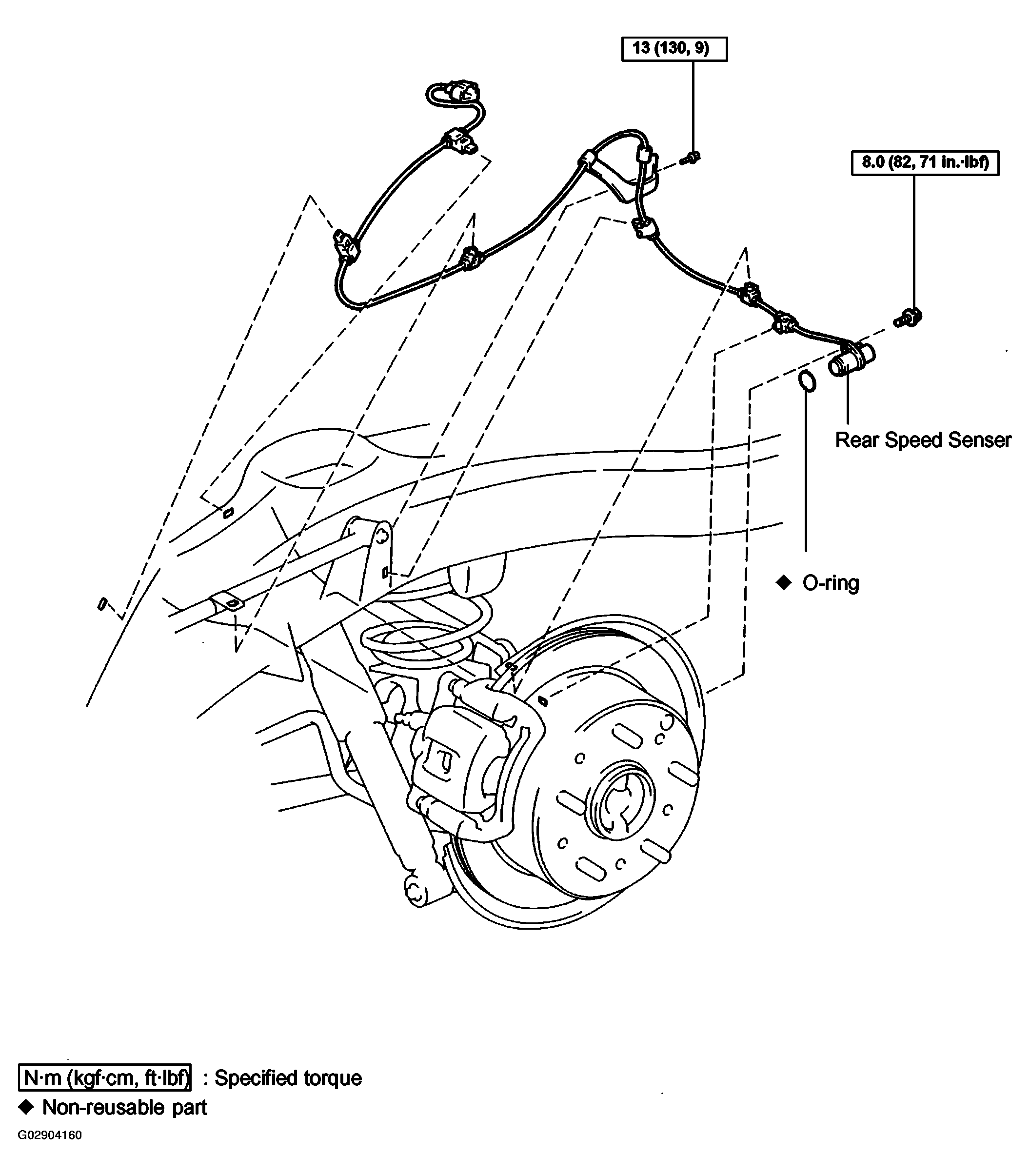

Fig 1: Identifying Rear Speed Sensor Components
G02904160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
