Heated Oxygen Sensor: Components

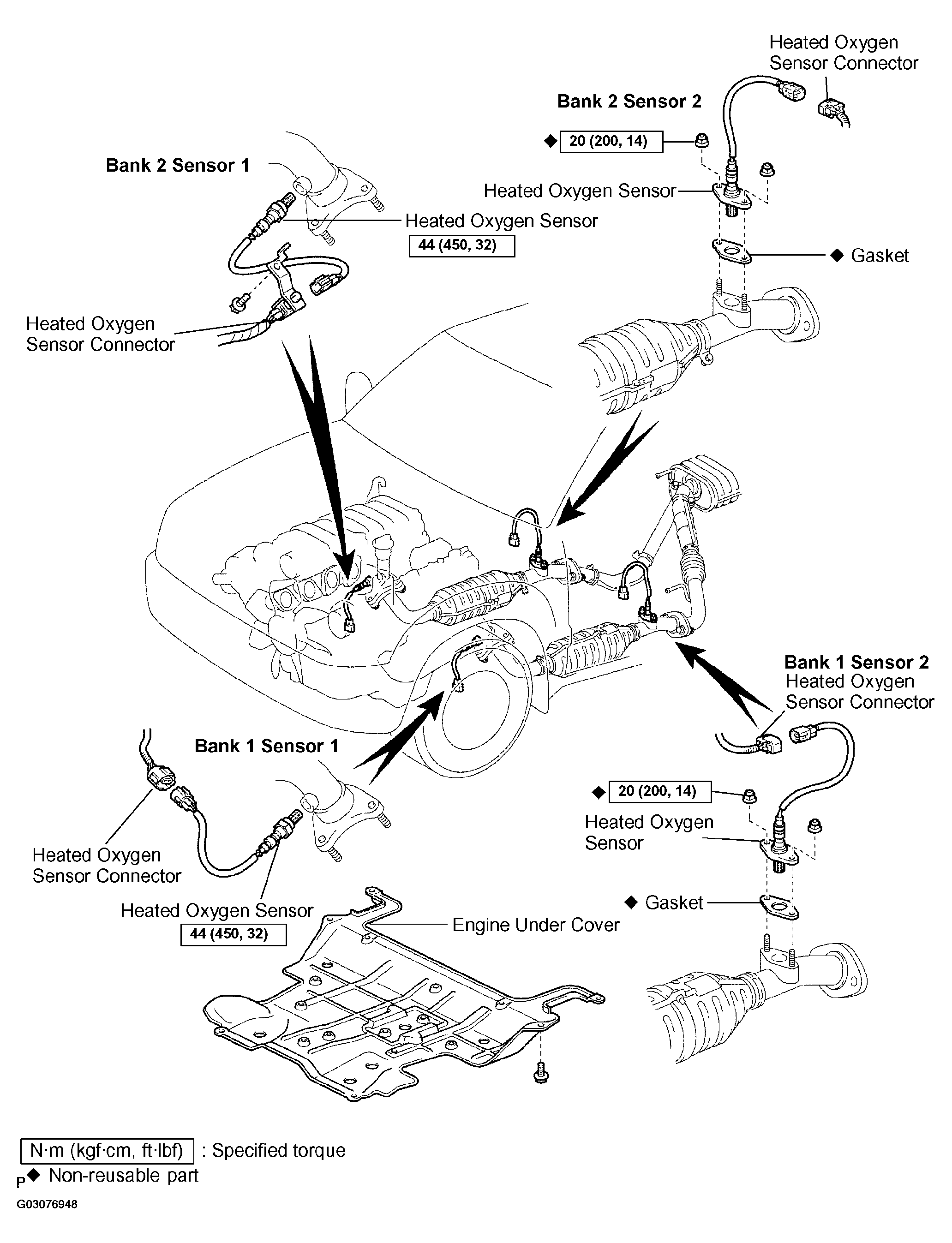

Fig 1: Identifying Heated Oxygen Sensor Components

G03076948

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
