Engine Control System - Diagnosis
›
Circuit Inspection
›
DTC P0505: Idle Air Control System
›
Typical Enabling Conditions
Typical Enabling Conditions

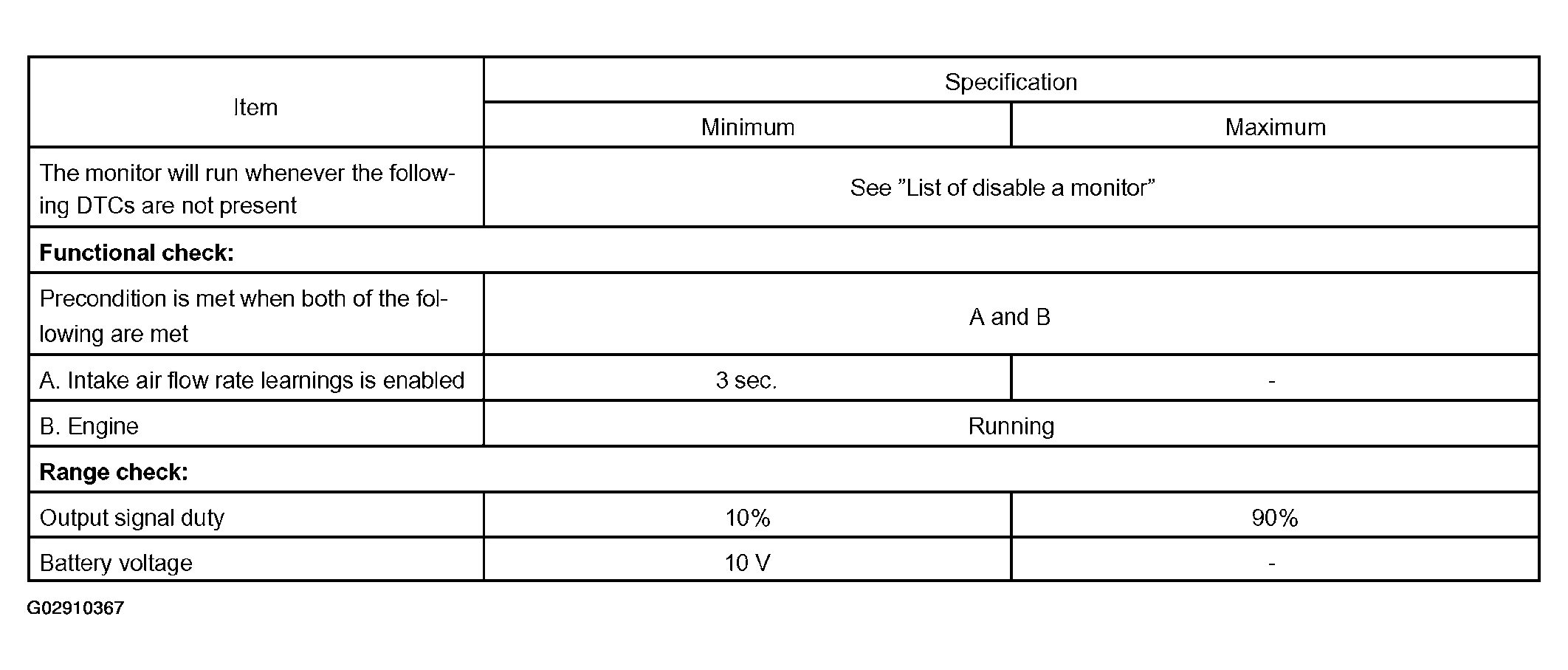

Fig 1: Typical Enabling Conditions Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
