General Information
›
Basic Trouble Shooting
›
Body Electrical System (Troubleshooting)
›
Problem Symptoms Table
›
Combination Meter (Indicator Light):
Combination Meter (Indicator Light):

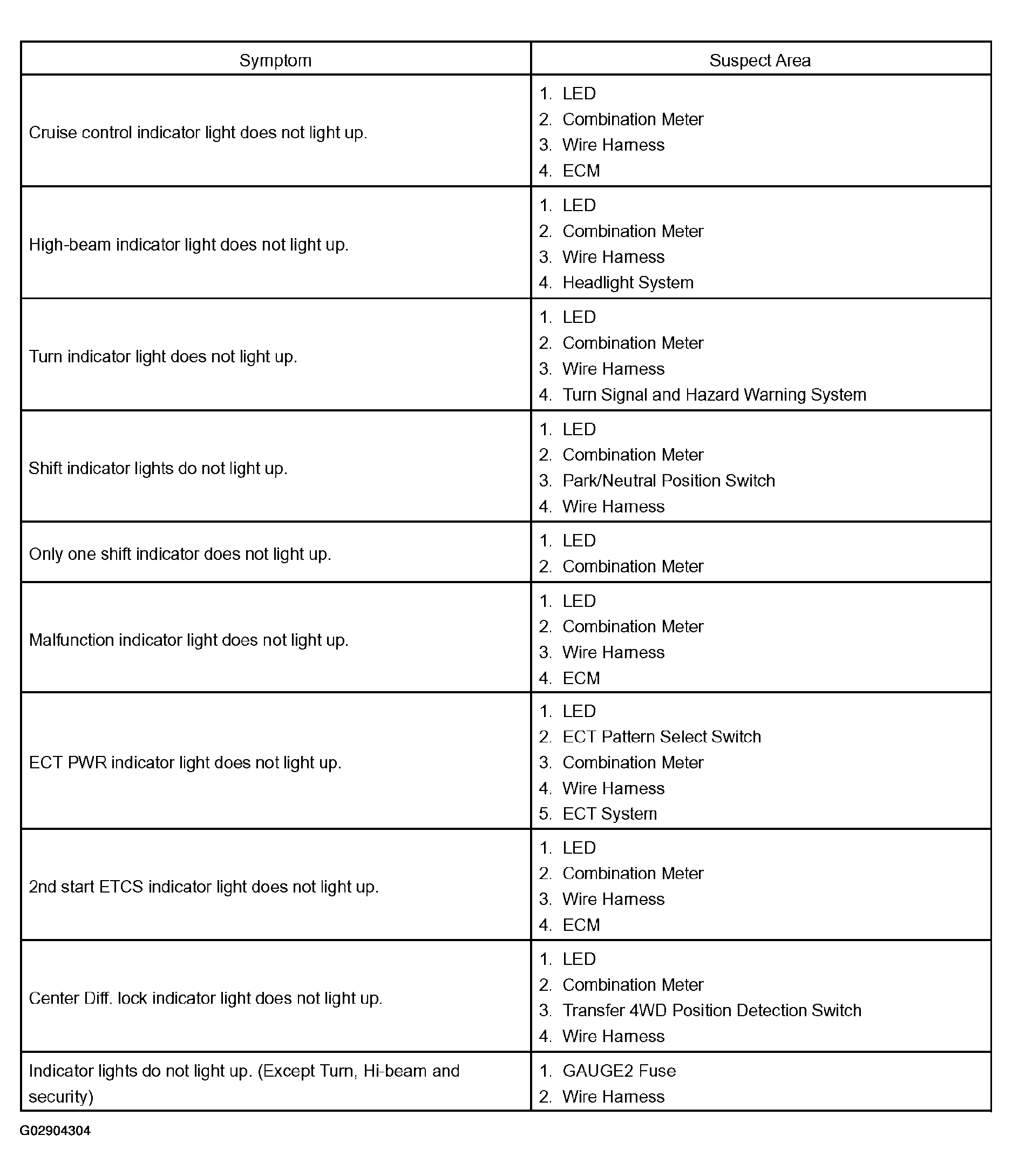

Fig 1: Identifying Combination Meter (Indicator Light) Troubleshooting
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
