Ignition Switch And Key Unlock Warning Switch:

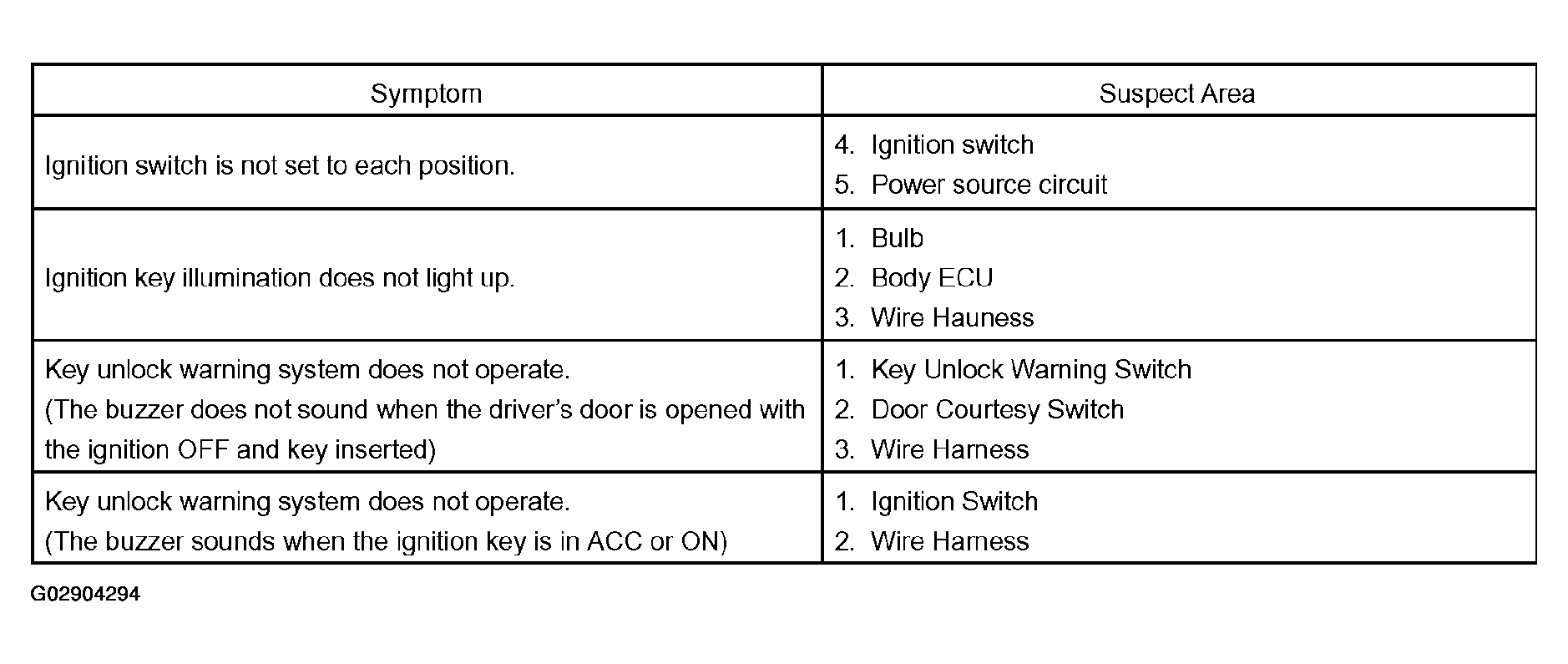

Fig 1: Identifying Ignition Switch & Key Unlock Warning Switch Troubleshooting

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

This system uses the body control system, so check the body control system before you proceed with troubleshooting (See HOW TO PROCEED WITH TROUBLESHOOTING ).
