Repair and Diagnosis
›
General Information
›
Basic Trouble Shooting
›
Body Electrical System (Troubleshooting)
›
Problem Symptoms Table
›
Power Door Lock Control System:
Power Door Lock Control System:

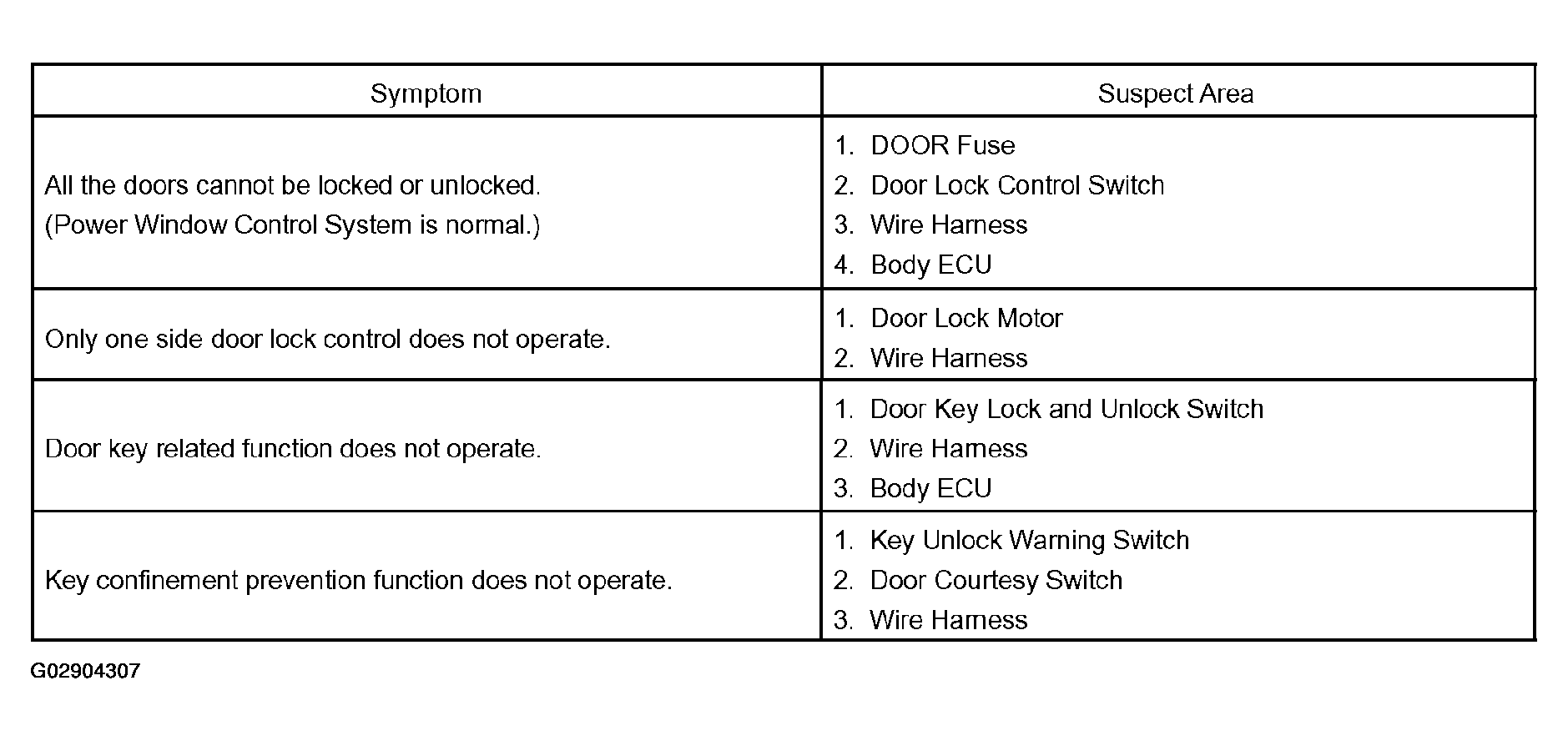

Fig 1: Identifying Power Door Lock Control System Troubleshooting
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
