Problem Symptoms Table
›
Power Seat Control System:
Power Seat Control System:

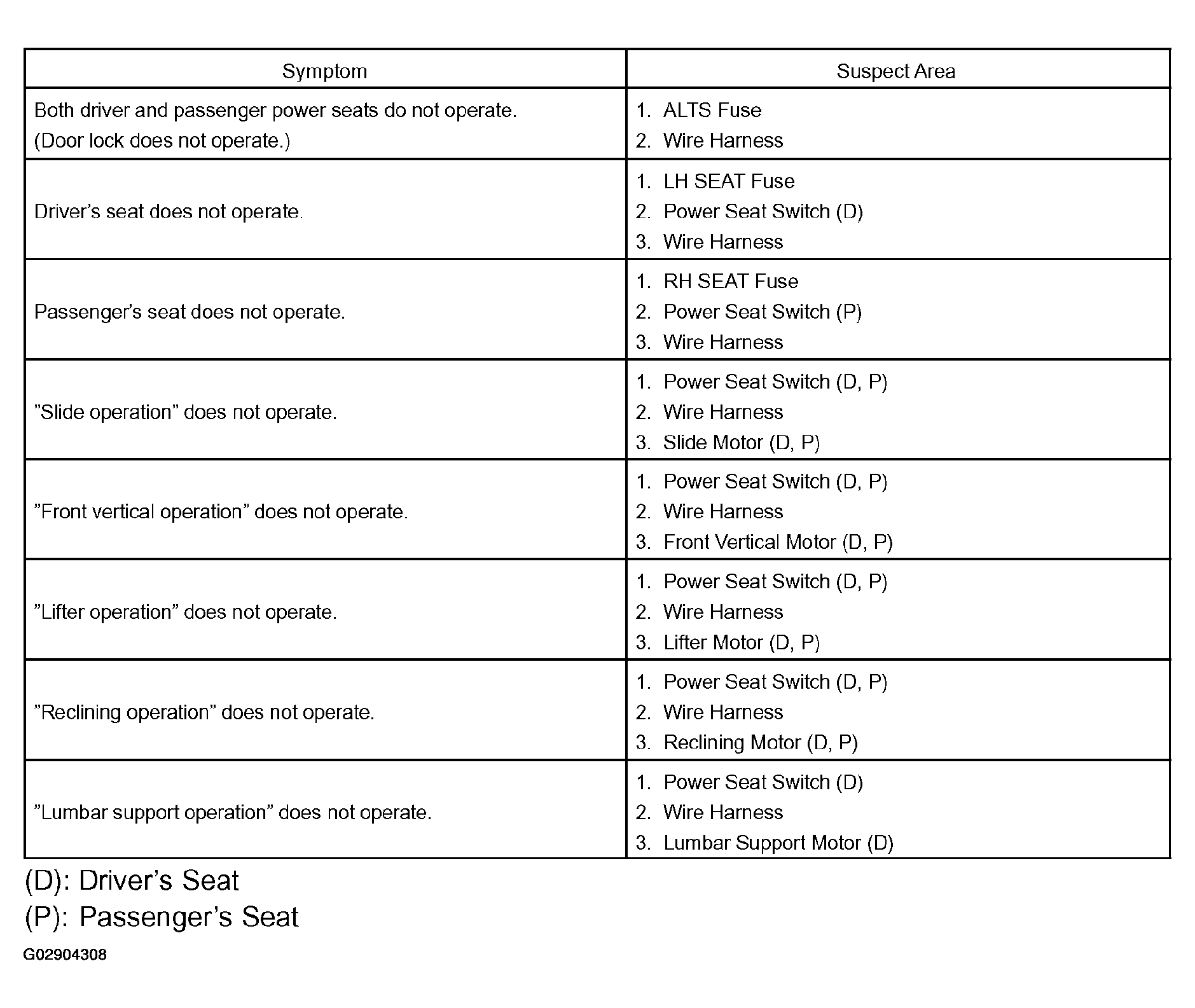

Fig 1: Identifying Power Seat Control System Troubleshooting
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
(D): Driver's Seat
(P): Passenger's Seat
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
