Power Tilt And Power Telescopic Steering Column: Components

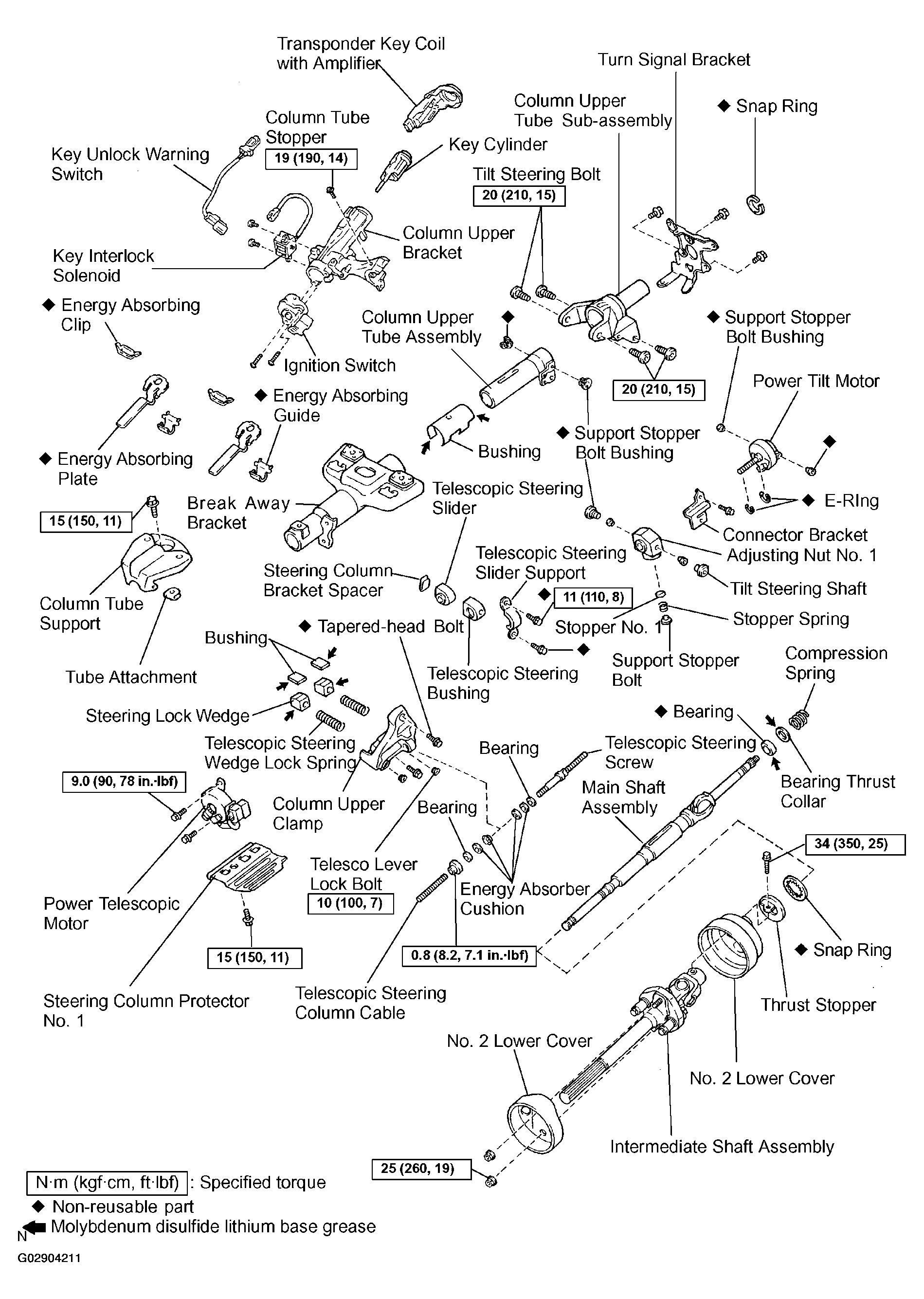

Fig 1: Removing/Installing Power Tilt & Power Telescopic Steering Column

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

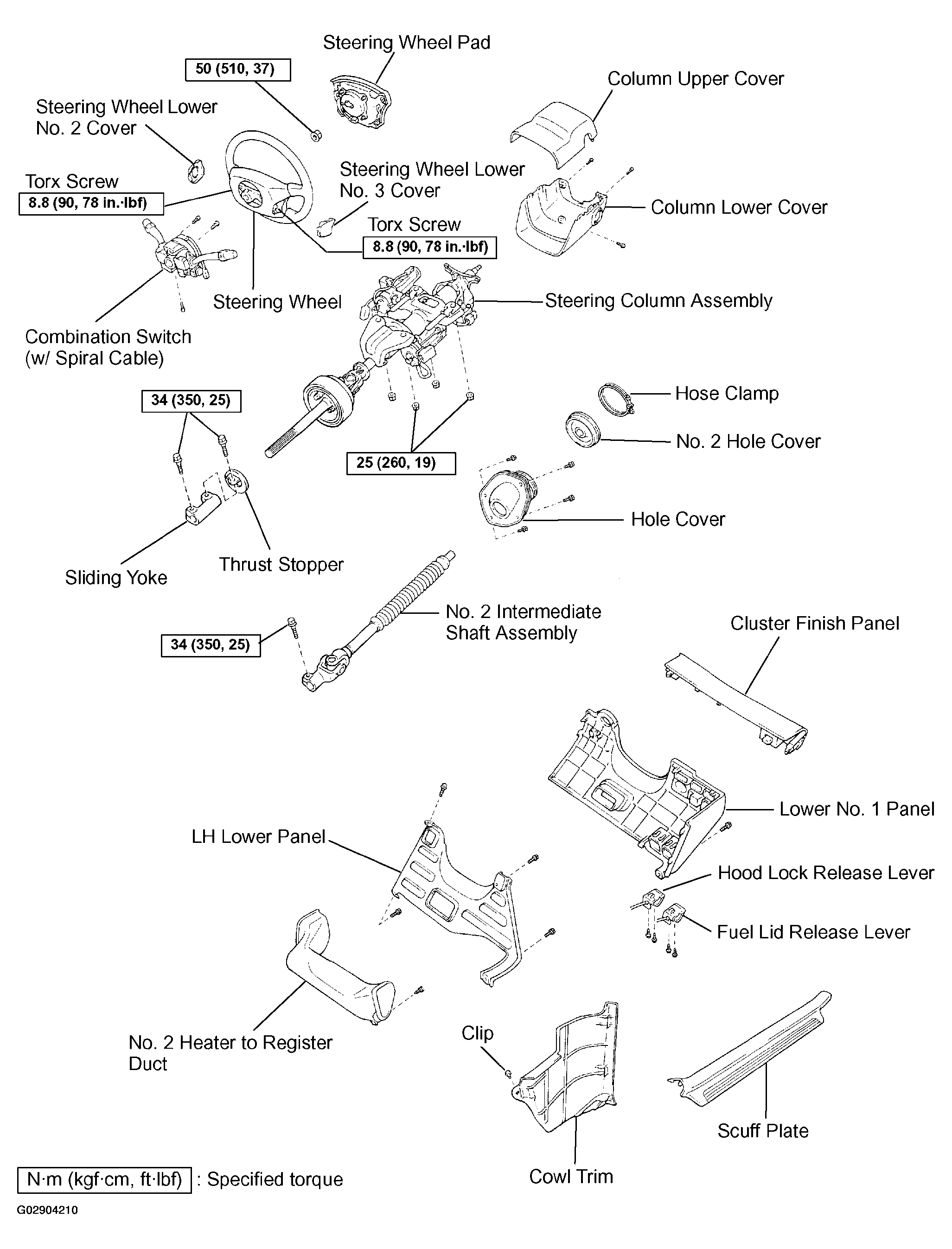

Fig 2: Exploded View Of Steering Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
