On-Vehicle Repair

  1. REMOVE ENGINE NO.2 UNDER COVER
  2. DRAIN ATF
  3. REMOVE OIL PAN (See  VALVE BODY ASSEMBLY  )
  4. REMOVE OIL STRAINER (See  VALVE BODY ASSEMBLY  )
  5. REMOVE ATF TEMPERATURE SENSOR
    1. Disconnect the 7 solenoid valve connectors.
    2. Remove the 2 bolts and disconnect the 2 ATF temperature sensors.
      Fig 1: Removing ATF Temperature Sensor
      G03068665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the solenoid connector.
    4. Remove the bolt and the transmission wire harness.
  6. INSTALL ATF TEMPERATURE SENSOR
    1. Install the transmission wire harness.
    2. Install the bolt.

      Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

    3. Connect the solenoid connector.
      Fig 2: Identifying Bolt
      G03068666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the 7 solenoid valve connectors.
    5. Connect the 2 ATF temperature sensors with the 2 bolts.

      Torque:

      A: 11 N.m (112 kgf.cm, 8 ft.lbf)

      B: 10 N.m (100 kgf.cm, 7 ft.lbf)

      Bolt length:

      Bolt A: 36 mm (1.42 in.)

      Bolt B: 12 mm (0.47 in.)

      Sensor wire harness:

      SENSOR WIRE HARNESS

      Wire harness Color
      for linear control Orange
      for oil temp warning lamp Blue

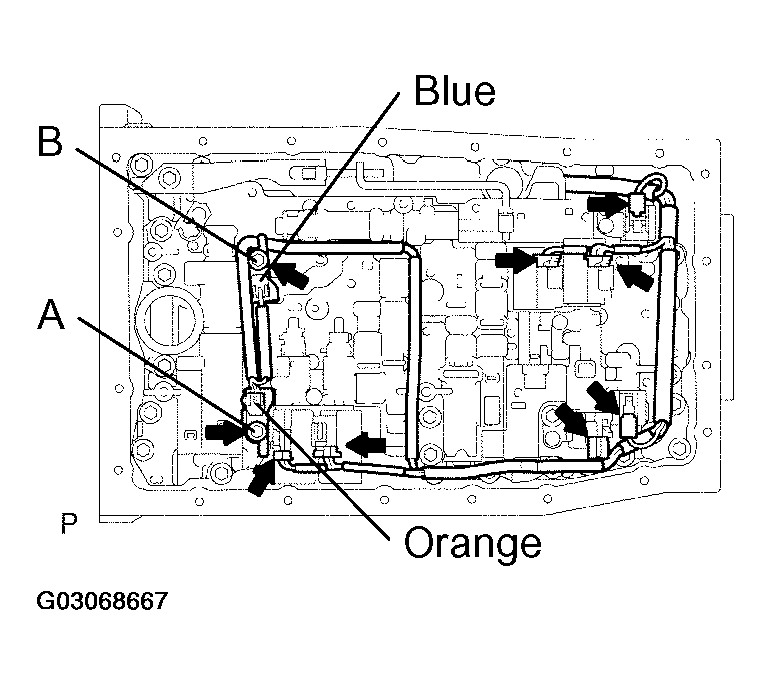

      Fig 3: Connecting ATF Temperature Sensors
      G03068667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL OIL STRAINER (See  VALVE BODY ASSEMBLY  )
  8. INSTALL OIL PAN (See  VALVE BODY ASSEMBLY  )
  9. FILL ATF AND CHECK ATF LEVEL (See  PRE-CHECK  )
  10. INSTALL ENGINE NO.2 UNDER COVER
