Automatic Transmission Unit: Components

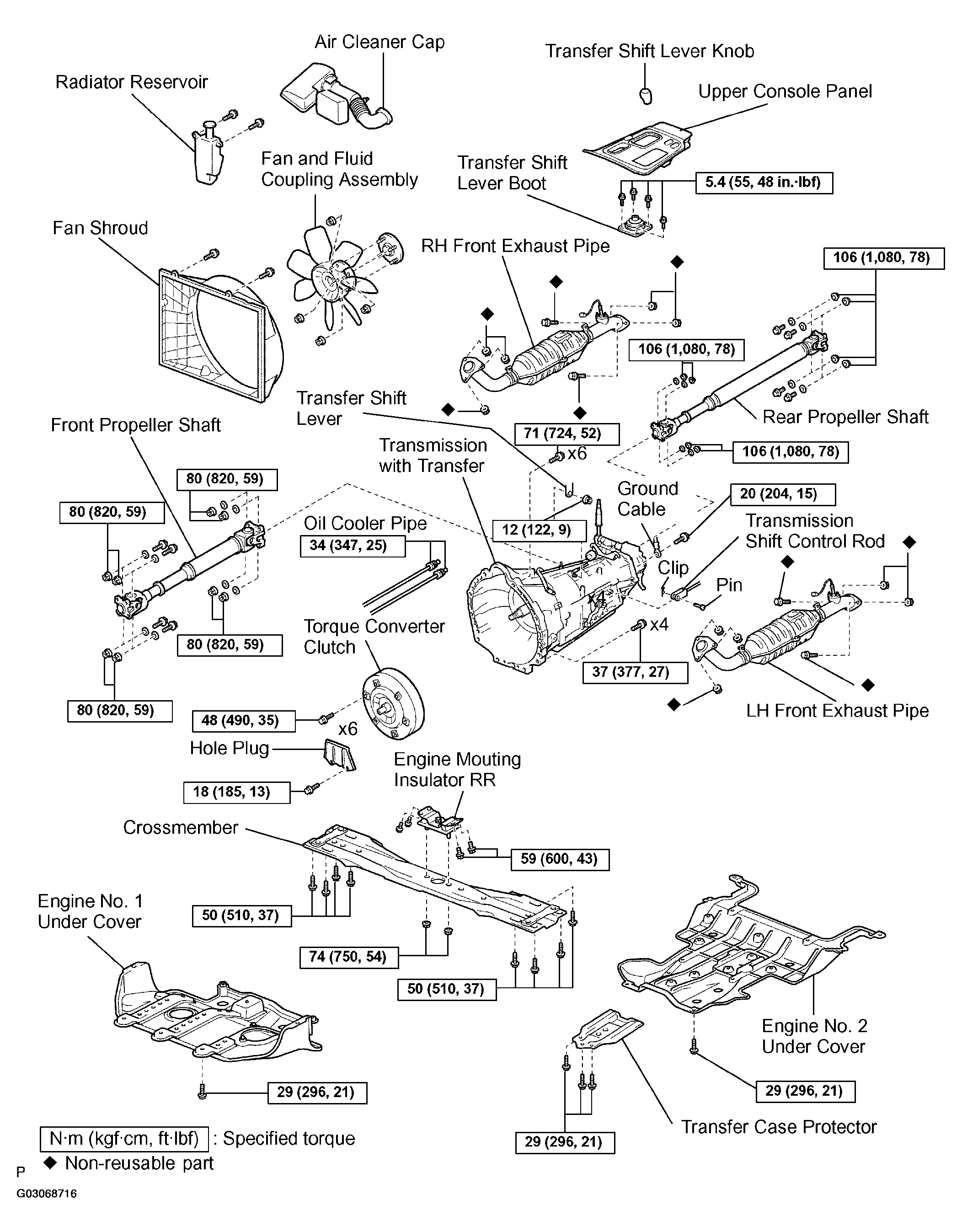

Fig 1: Exploded View Of Automatic Transmission Unit Components
G03068716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
