Automatic Transmission Unit: Installation

Using calipers and a straight edge, measure the distance from the installed surface of the transmission housing to the installed surface of the torque converter clutch.

Correct distance: More than 17.1 mm (0.673 in.)

Installation is in the reverse order of removal (See  REMOVAL  ).

HINT:

• Transmission control rod and the park/neutral position switch (See PRE-CHECK )
• ATF level (See PRE-CHECK )
• Conduct the road test of the vehicle (See PRE-CHECK )

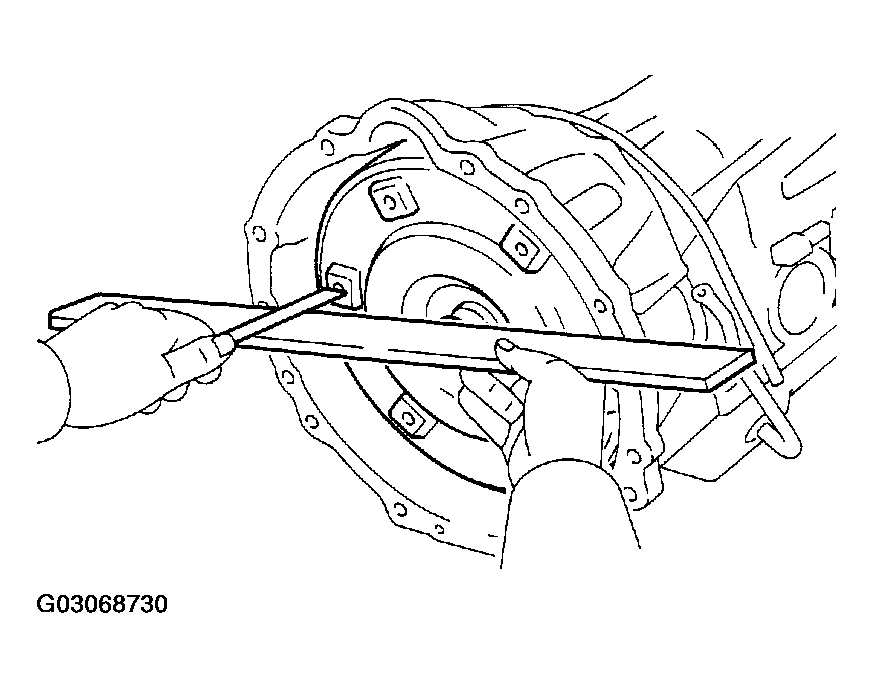

  Fig 1: Measuring Distance From Installed Surface Of Transmission Housing

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
