Floor Shift Assembly: Installation

INSTALL FLOOR SHIFT LEVER ASSEMBLY
1. Install the floor shift lever assembly with the 6 bolts.
  Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)
2. Connect the connector to the floor shift lever assembly.

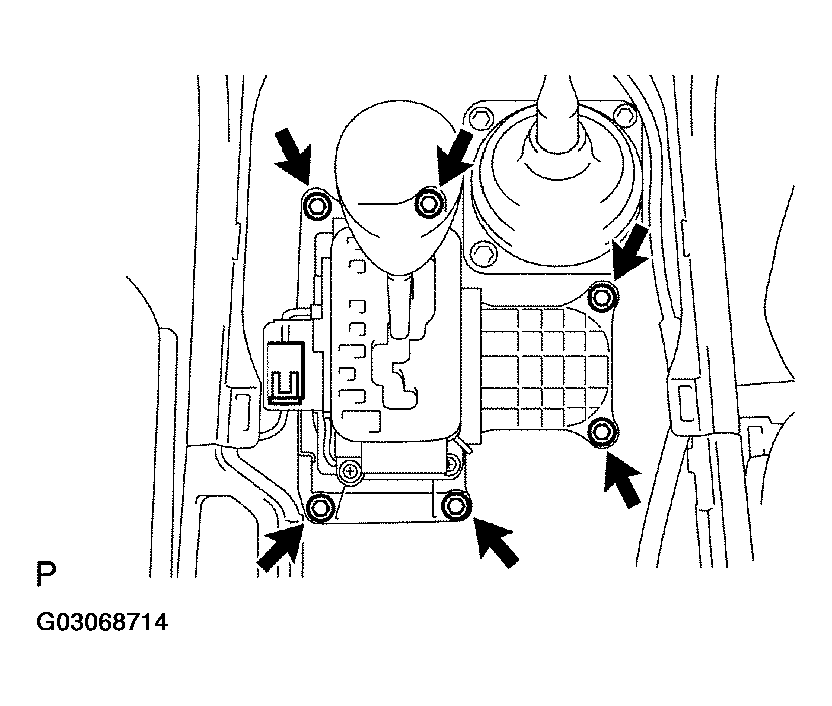

  Fig 1: Installing Floor Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL No.1 FLOOR SHIFT GEAR SHIFTING ROD
1. Shift into the N position.
2. Connect the No.1 floor shift gear shifting rod and the connecting rod swivel with the nut.
  Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)
INSTALL UPPER CONSOLE PANEL (See REMOVAL )
INSTALL TRANSFER SHIFT LEVER KNOB

Fig 2: Installing Floor Shift Gear Shifting Rod
